Original Capacity: 4140Wh
Nominal voltage: 44.4V
-------
148 Wh per kg
238 kWh per cubic meter
£229 per kWh ex VAT

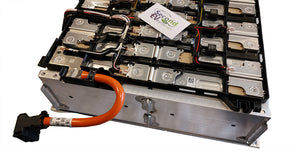

BMW i3 Module Lithium-ion Battery
Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.
What's included BMW i3 Module
With EACH module purchase you will receive:
1 X BMW i3 Module
Nominal voltage: 44.4V
Module Maximum Voltage: 49.8V
Module Minimum Voltage: 32.4V
Length 387mm (410mm including mount)
Width 300mm
Height 150mm
Mass 28kg
Optional - Battery Management System - EVS-BMS
This BMW module is compatible with the "EVS-BMS" Battery Management System. Please see details on the EVS-BMS page HERE.
PLEASE NOTE: if you select the EVS-BMS you will need to select the Cell Supervision Circuit (CSC) option as EVS-BMS will need this.
International Shipping NOT AVAILABLE
