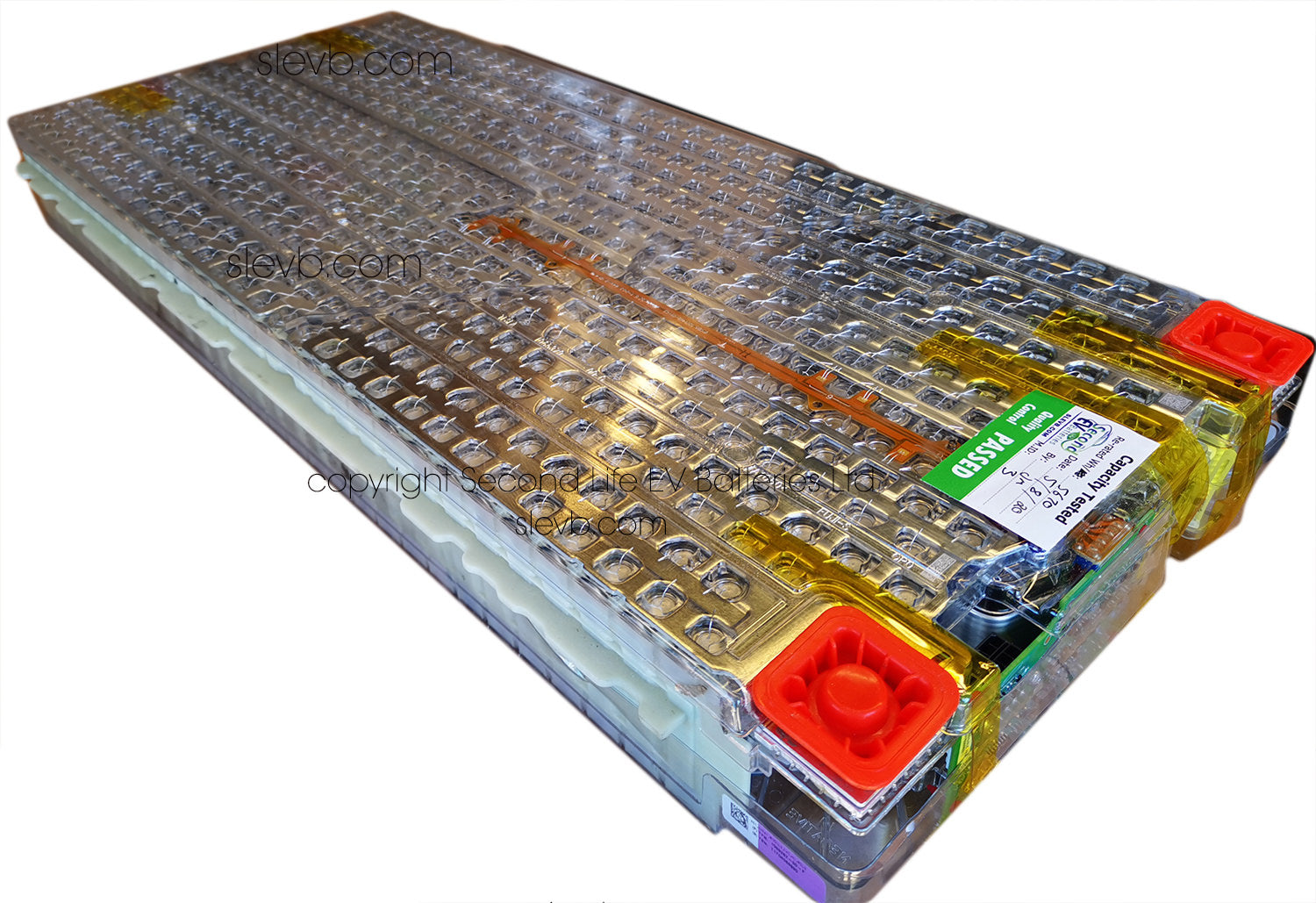

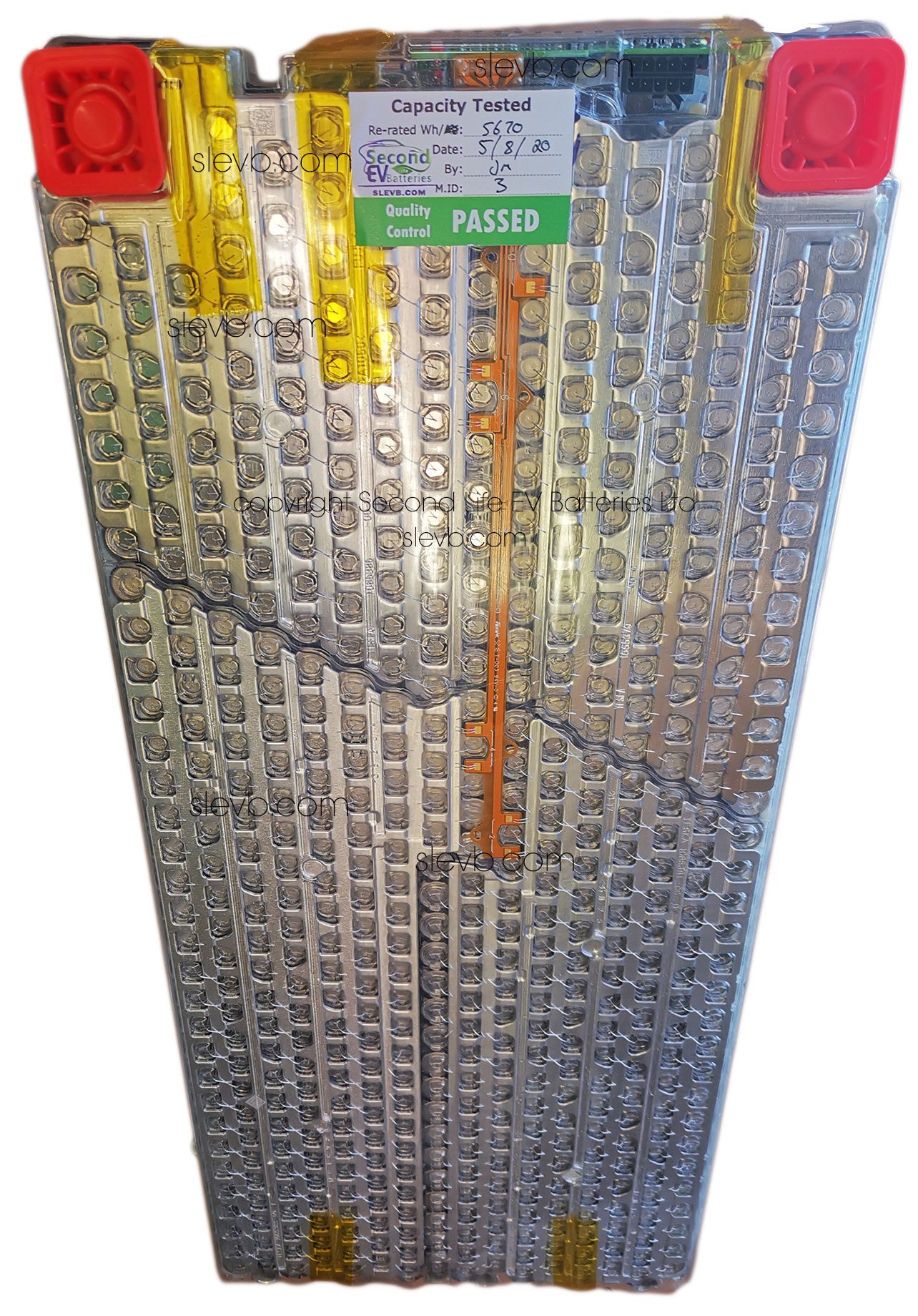

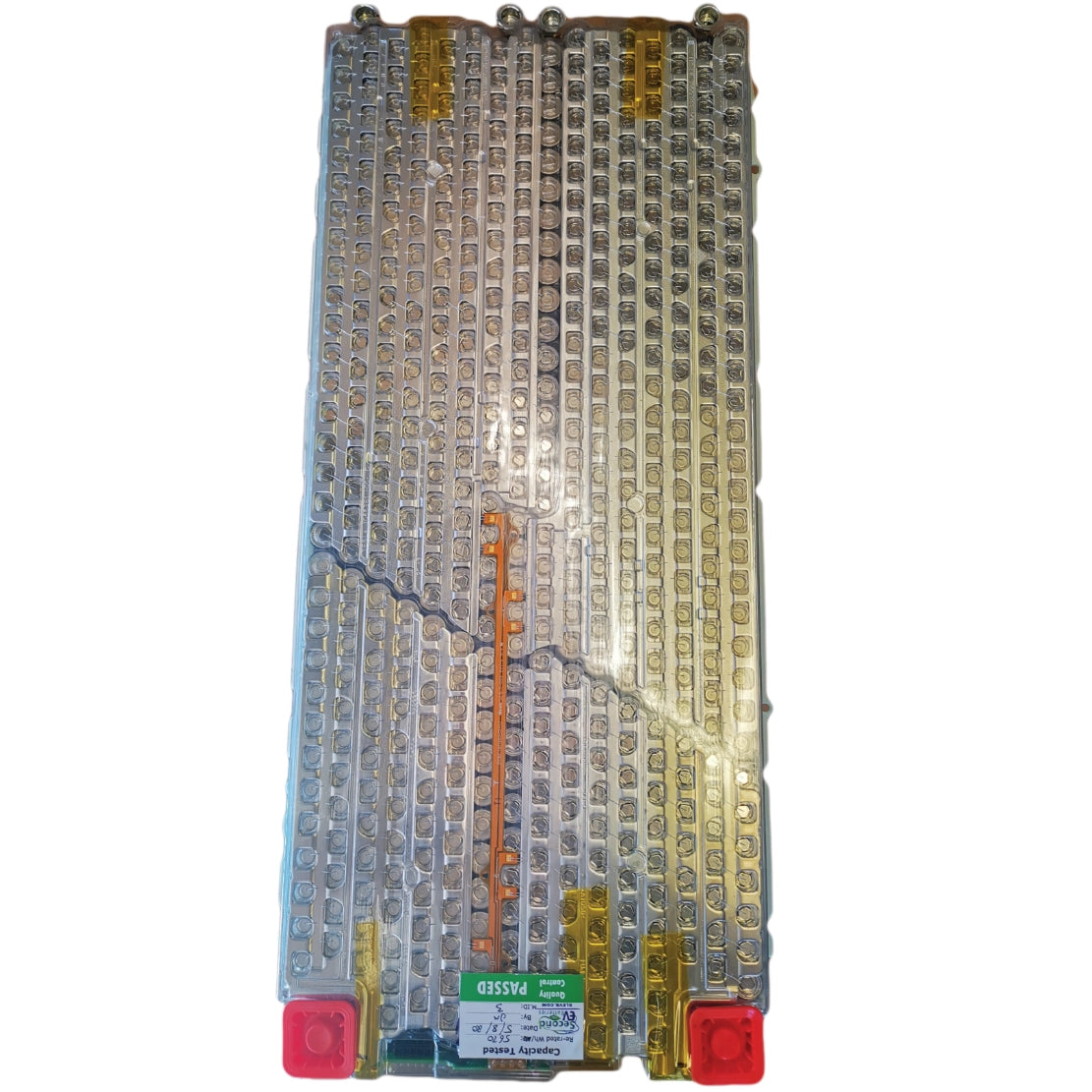

Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
FREE DELIVERY on orders over £2000
Within 200 Miles of BH23 3TS ONLY. In-House Scheduled Delivery
Nominal voltage 22.8V
Original Capacity 6400Wh
----
225 Wh per kg
368 kWh per cubic meter
£234 per kWh ex vat
Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.
Bolt Size: M8 13mm length
Cell type: Panasonic 18650
Cell Configuration: 6S86P (6 Series 86 Parallel)
Cells per modules: 516
Nominal voltage 22.8V
Original Capacity 287Ah
Application:
Power source for EV vehicles
Regenerative charge systems, EV vehicles
Solar energy storage
Many, many more...
What's included Tesla 6.4kWh P100D Module
With EACH module purchase you will receive:
1 X Tesla Module (@rerated capacity)
Tesla 6.4kWh P100D Module Specification
- Nominal voltage 22.8V
- Original Capacity 6400Wh
-
Charger voltage cut off - 4.2v Cell / 24.9v Module
-
Discharge cut-off - 3.3v Cell / 18.6v Module
-
Maximum discharge current - (10sec) 870amps
-
Discharge current (3seconds) 1500amps
-
Continuous discharge current - 225amps
-
Max charger current - 225amps
-
6S86P
-
Number of cells per module - 516
-
Cell type - 18650
- Cell rating - 3400mAh
- max operating temp - 60degc
- Min operating temp - -18degc
- Charging temp - 0deg c < 45deg c
- Storage temp range -20degc < 50degc

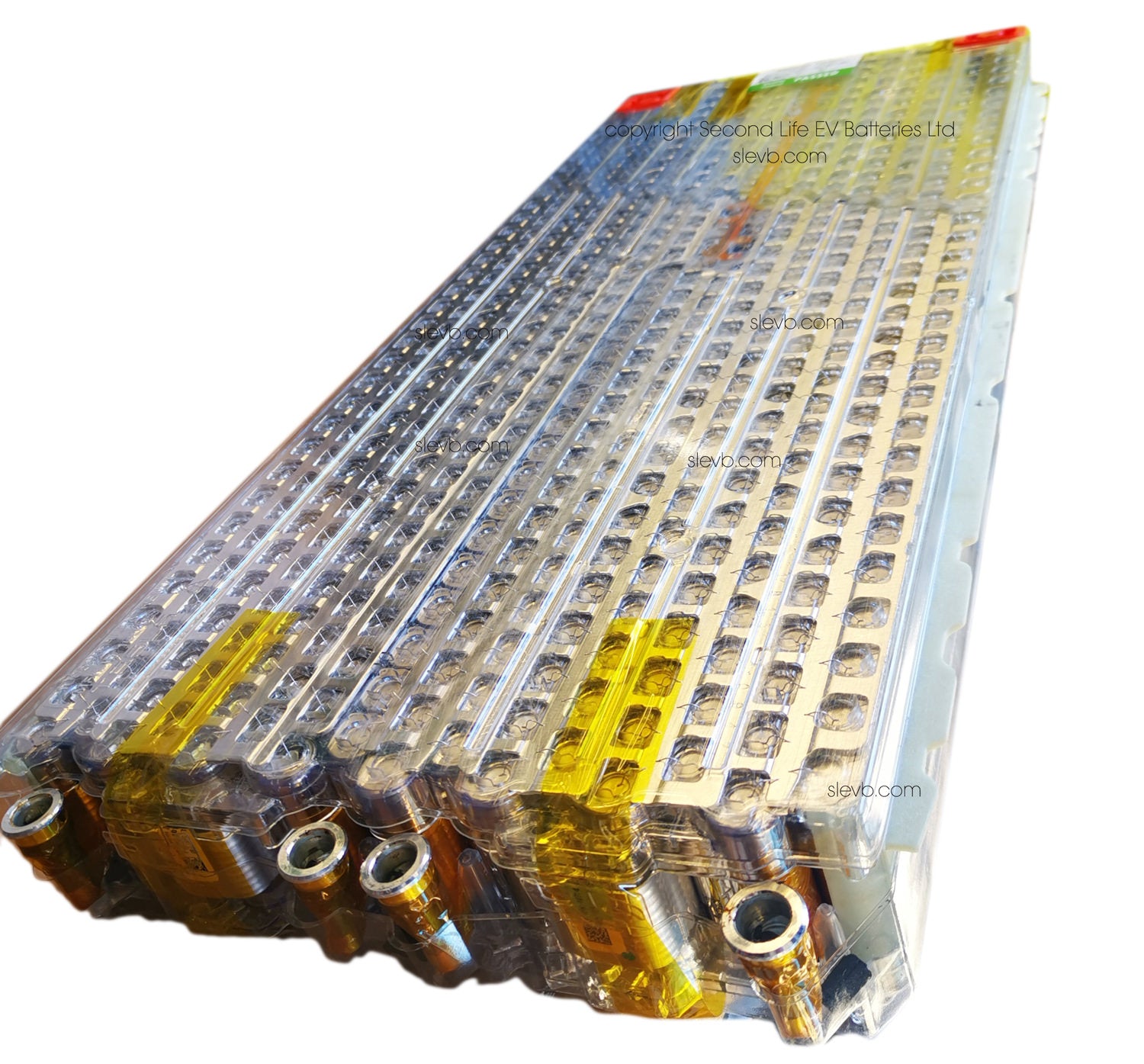

- Cooling 5/16" tubing ( 8mm)
- Length 685mm approx
- Width 300mm approx
- Height 75mm approx
- Mass 27.5kg approx
*Product images are for illustrative purposes only
Tesla 6.4kWh P100D Module Lithium-ion Battery Features
