VW e-Golf | 7.6V | 100%
VW e-Golf | 7.6V | 100%

VW e-Golf | 7.6V | 100%

Regular price £269.00
Unit price  per
Inc. VAT

Buy 3 or more for FREE DELIVERY - within 200 Miles of BH23 3TS ONLY
Original Capacity: 815Wh
Re-rated Capacity: 815Wh
Capacity Remaining: 100%
Nominal voltage: 7.6v
Vehicle Year: 2019
Vehicle Miles: <3000

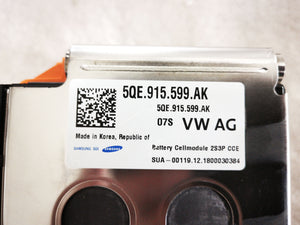

 VW e-Golf (2019) Module Lithium-ion Battery

Has come from a 2019 VW e-Golf with <3000 miles. Our testing resulted in 100% capacity remaining

  • Each module has 6 x cells (3.8v)
  • 2 in series with 3 parallel is the module configuration
  • Model - MPO/62A(CMC)
  • Terminal = M6
  • Temp Plug Type = PA4T - GF30 (TE connectivity)
  • CAN BUS Plug Type = PPS



Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.

  • Re-rated Capacity: 815Wh (Item was tested and had 100% capacity)



What's included VW eGolf (2019) Module

With EACH module purchase you with receive:

1 X VW e-Golf module

VW e-Golf (2019) Module  Module Specification

  • Original Capacity: 815Wh
  • Re-rated Capacity: 815Wh (Item was tested and had 100% capacity)
  • Re-rated Energy density: 148 W / Kg
  • Nominal voltage: 7.6V
  • Length 195mm
  • Width 150mm
  • Height 105mm
  • Mass 5.5kg

*Product images are for illustrative purposes only



MORE INFORMATION NEED?

Unfortunately no additional information is available on this product. Everything we know is listed above. Please do not contact us asking for additional information. If a 3D CAD is available it will be listed above
