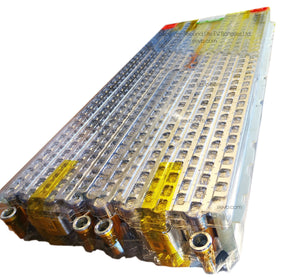

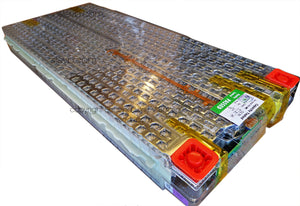

Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V
Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V

Tesla Model S/X Module - 6.4kWh / 287Ah / 22.8V

Regular price £1,230.00
Unit price  per

FREE DELIVERY on orders over £2000
Within 200 Miles of BH23 3TS ONLY. In-House Scheduled Delivery

Nominal voltage 22.8V
Original Capacity 6400Wh
----
225 Wh per kg
368 kWh per cubic meter
£234 per kWh ex vat

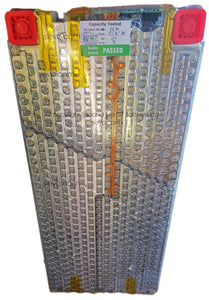

Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.

Bolt Size: M8 13mm length
Cell type: Panasonic 18650
Cell Configuration: 6S86P (6 Series 86 Parallel)
Cells per modules: 516
Nominal voltage  22.8V
Original Capacity 287Ah

Application:
Power source for EV vehicles
Regenerative charge systems, EV vehicles
Solar energy storage
Many, many more...

What's included Tesla 6.4kWh P100D Module

With EACH module purchase you will receive:

1 X Tesla Module (@rerated capacity)


Tesla 6.4kWh P100D Module Specification

  • Nominal voltage  22.8V
  • Original Capacity 6400Wh
  • Charger voltage cut off - 4.2v Cell / 24.9v Module
  • Discharge cut-off - 3.3v Cell / 18.6v Module
  • Maximum discharge current - (10sec)   870amps
  • Discharge current (3seconds) 1500amps
  • Continuous discharge current - 225amps
  • Max charger current - 225amps
  • 6S86P
  • Number of cells per module -   516
  • Cell type -  18650
  • Cell rating - 3400mAh
  • max operating temp -  60degc
  • Min operating temp - -18degc
  • Charging temp -   0deg c < 45deg c
  • Storage temp range  -20degc < 50degc
  • Cooling 5/16" tubing ( 8mm)
  • Length 685mm approx
  • Width 300mm approx
  • Height 75mm approx
  • Mass 27.5kg approx

*Product images are for illustrative purposes only



Tesla 6.4kWh P100D  Module Lithium-ion Battery Features

Tesla 6.3kWh p100d Module 3D Render

No International Delivery available



 Datasheet for Tesla_P100D_Panasonic_NCR18650B Cells.PDF
