VW e-Golf Module - 1.6kWh / 108Ah / 15V

VW e-Golf Module - 1.6kWh / 108Ah / 15V

excluding VAT

£225.00 GBP
£225.00 GBP
Sale Sold out
Shipping & tax calculated at checkout.

International Shipping NOT available
Original Capacity: 1630Wh
Nominal voltage: 15.2v
Vehicle Year: 2019
Vehicle Miles: <3000
--------
148 Wh per kg
309 kWh per cubic meter

VW eGolf (2019) Module Lithium-ion Battery



Has come from a 2019 VW e-Golf with <3000 miles. Modules are a Samsung SDI 108Ah. Our testing resulted in 100% capacity remaining

  • Each module has 12 x cells (3.8v)
  • 108Ah
  • 4 in series with 3 parallel is the module configuration

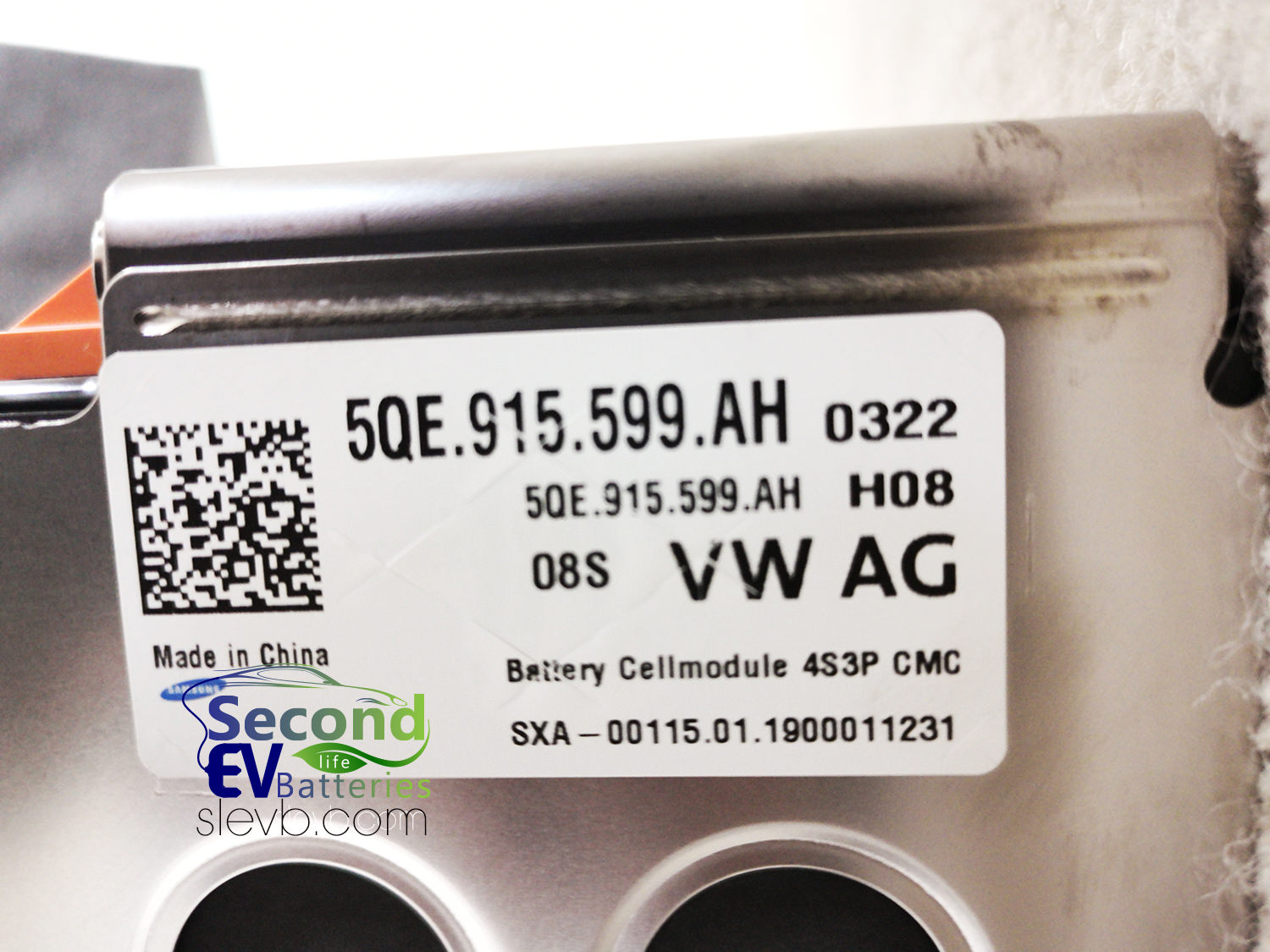

  • Model - MPO/62A(CMC)
  • Terminal = M6
  • Temp Plug Type = PA4T - GF30 (TE connectivity)
  • CAN BUS Plug Type = PPS


Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.

  • Re-rated Capacity: 1630Wh (tested at 100%)

What's included VW eGolf (2019) Module

With EACH module purchase you with receive:

1 X VW eGolf module

VW eGolf (2019) Module (Samsung SDI 108Ah) Module Specification

  • Re-rated Capacity: 1630Wh (tested at 100%)
  • Nominal voltage: 15V
  • Length 335mm
  • Width 150mm
  • Height 105mm
  • Mass 11kg

International Shipping NOT AVAILABLE
