VW ID Module 8S - 6.85kWh / 234Ah / 29.6V

VW  ID4/ID3 8S Module - Lithium-ion Battery

VW ID3 / VW ID4 Module Specification
Part no. 0Z1915 599 H
Ah Capacity: 234
Type Pouch Cell NCM 712
Cell Capacity per battery: 78 Ah
Cells in a complete Module: 24

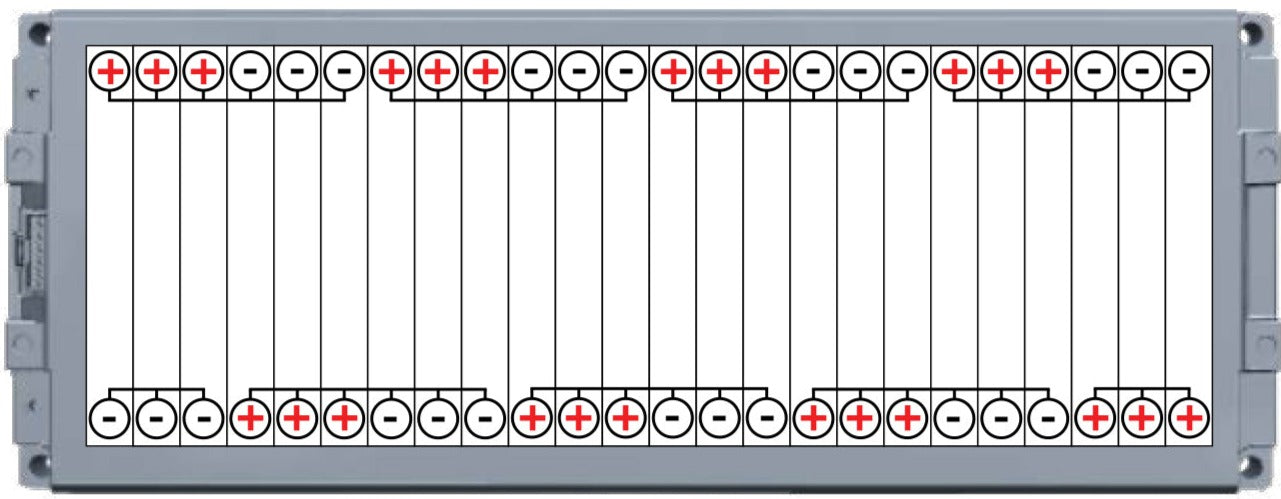

Module Circuitry: 8 in series, 3 in parallel (8s3p)
Module Capacity: 234 Ah
Length 590mm
Width 225mm
Height 110mm
Mass 32kg
Bolt Size M6

Balancing current of the VW ID modules is low. They only use around 100 mA of passive cell balancing. Higher balancing current could damage the cell tap wires in the modules or blow the internal fuse. Keep this in mind when selecting your BMS

Charge voltage cut-off:
                 Cell = 4.15V
                 Module = 33.6V
Discharging cut-off:
                 Cell = 3.3V
                 Module = 24.2v
Maximum Discharging Current (10 sec.): 1000 Amps


International Shipping NOT AVAILABLE
