EMUS BMS stands out in the market – it provides highly modular and flexible battery management system topology (Distributed, Centralized or even mixed) for almost any voltage and current (discharge) ranges, which allows to match customer’s application requirements precisely.

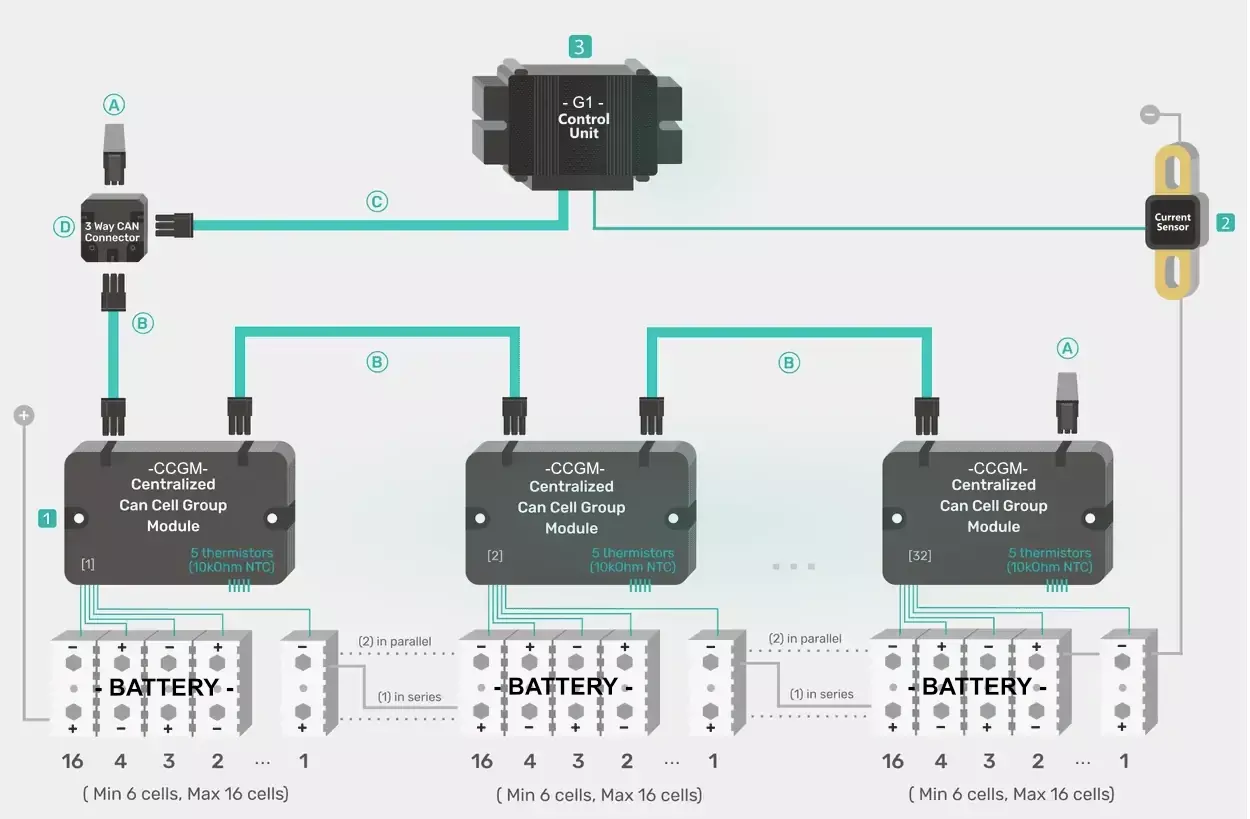

EMUS Centralized CCGM system is suitable for Lithium-ion chemistry battery packs in e-mobility, electric energy storages (EES) applications where modularity is required. In such applications cylindrical or pouch cells are used mostly and such BMS topology (Centralized)
fits best for managing multiple blocks of cells connected in parallel and series. Within industry it‘s commonly called as Master/Slave battery management system, refering to EMUS Control Unit as a Master, and CCGM devices as Slaves.
- Wide scalability options for high voltage (up to 850V) and capacity systems
- Easy and fast installation
- 400mA passive balancing. PWM control for lower balancing requirements (e.g. VW MEB)
- 5 external temperature sensors
- Each CCGM unit supports from 6 up to 16 lithium cells in series
- Supports 50, 125, 250, 500, 800 kbit/s and 1 Mbit/s CAN baud rates
EMUS BMS Control Unit Kits

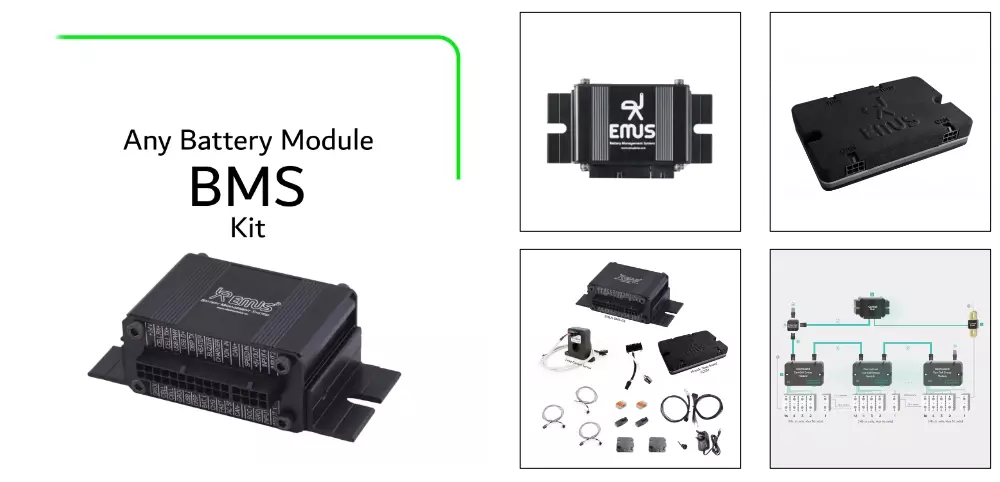

EMUS BMS Kit for Any Battery Module
EMUS BMS Kit for Any Battery Module
Highly flexible lithium battery management systems for 6 to 16 cells per slaveboard. A complete kit for battery BMS.

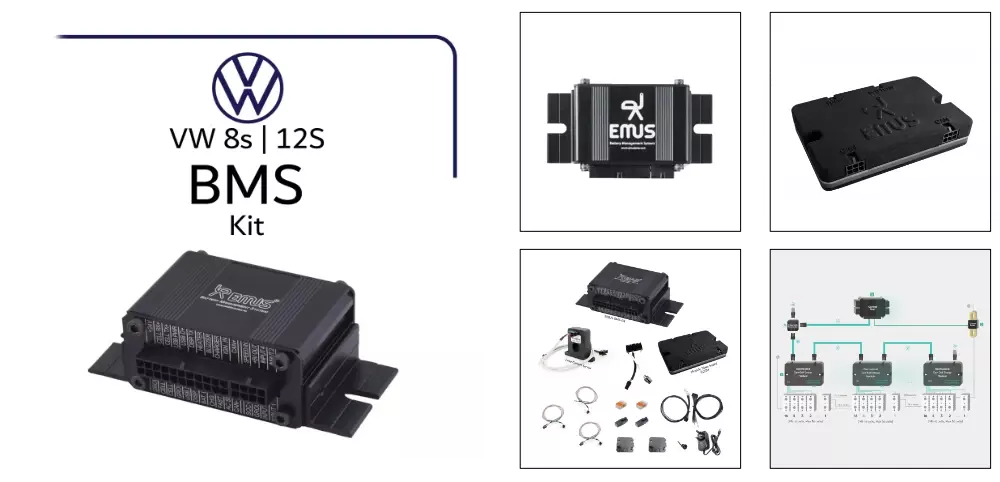

EMUS BMS Kit for VW Battery Module
EMUS BMS Kit for VW Battery Module
A complete kit suitable for VW MEB modules with low balance current via PWM.

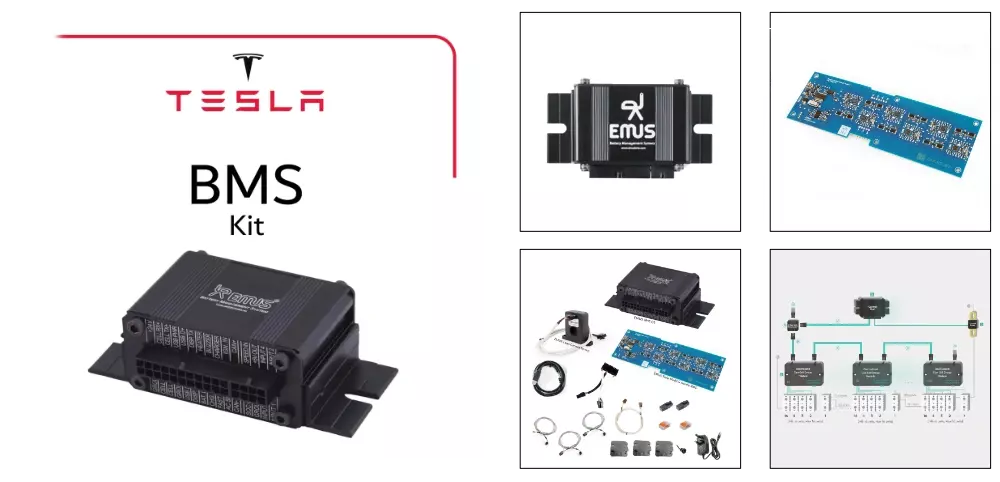

EMUS BMS Kit for Tesla Battery Module
EMUS BMS Kit for Tesla Battery Module
A complete BMS kit suitable for Tesla 5.3kWh modules this complete kit includes replacement OEM PCB board.
EMUS BMS Components
Below are some of the modular components available for EMUS BMS.
EMUS Connectivity Modules

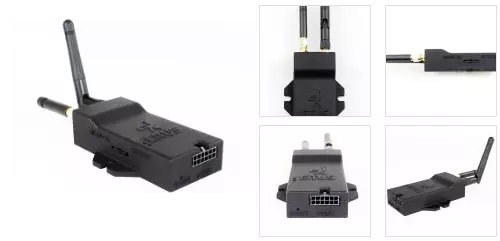

G1 Remote Monitoring System unit
COMING SOON... EMUS Remote Monitoring System unit is a device that once connected to your existing EMUS BMS G1 system, allows securely broadcasting your system’s data using Cellular or Wi-Fi interfaces to cloud-based RMS Portal, which can be accessed from anywhere in the world.
Advanced Details visit EMUS - Click Here

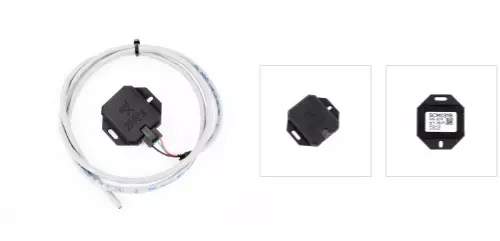

G1 Smartphone Connectivity Module
Emus BMS Smartphone Connectivity Module is low energy adapter that allows to wirelessly monitor various battery parameters in real time on any Android and iOS device using Emus EVGUI app, or any PC running Windows operating system, using the USB dongle.
EMUS Cell Communication Adapters

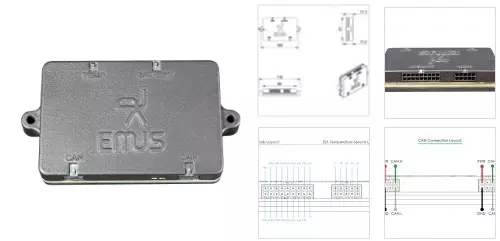

G1 Centralized CCGM - 850V (024)
G1 Centralized CCGM - 850V (024)
EMUS Centralized Cell Group Module (CCGM) is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors. Isolation between communication and battery side: up to 850V*

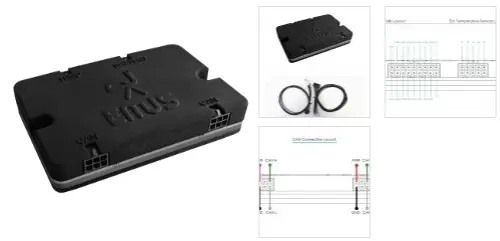

G1 Centralized CCGM - 350V (023)
EMUS Centralized Cell Group Module (CCGM) is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors. Isolation between communication and battery side: up to 400V*

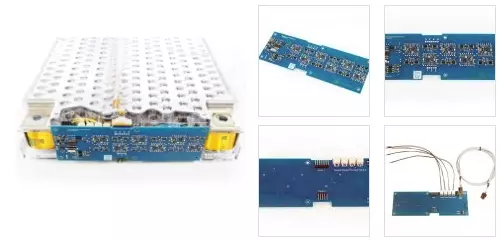

Tesla Model S battery module retrofit BMS
EMUS BMS retrofit board designed specifically for Tesla Model S battery module of ~5.3kWh is the device that once mounted on a battery pack measures cells voltages, temperatures, its own temperature, and broadcasts all measured values to the main unit.
