Tesla Battery & BMS by EMUS
Tesla Battery & BMS by EMUS
International Shipping NOT available
Couldn't load pickup availability
NOTE: Kits are not limited to above Voltage or kWh. If you require a different system V or kWh just open a support ticket.

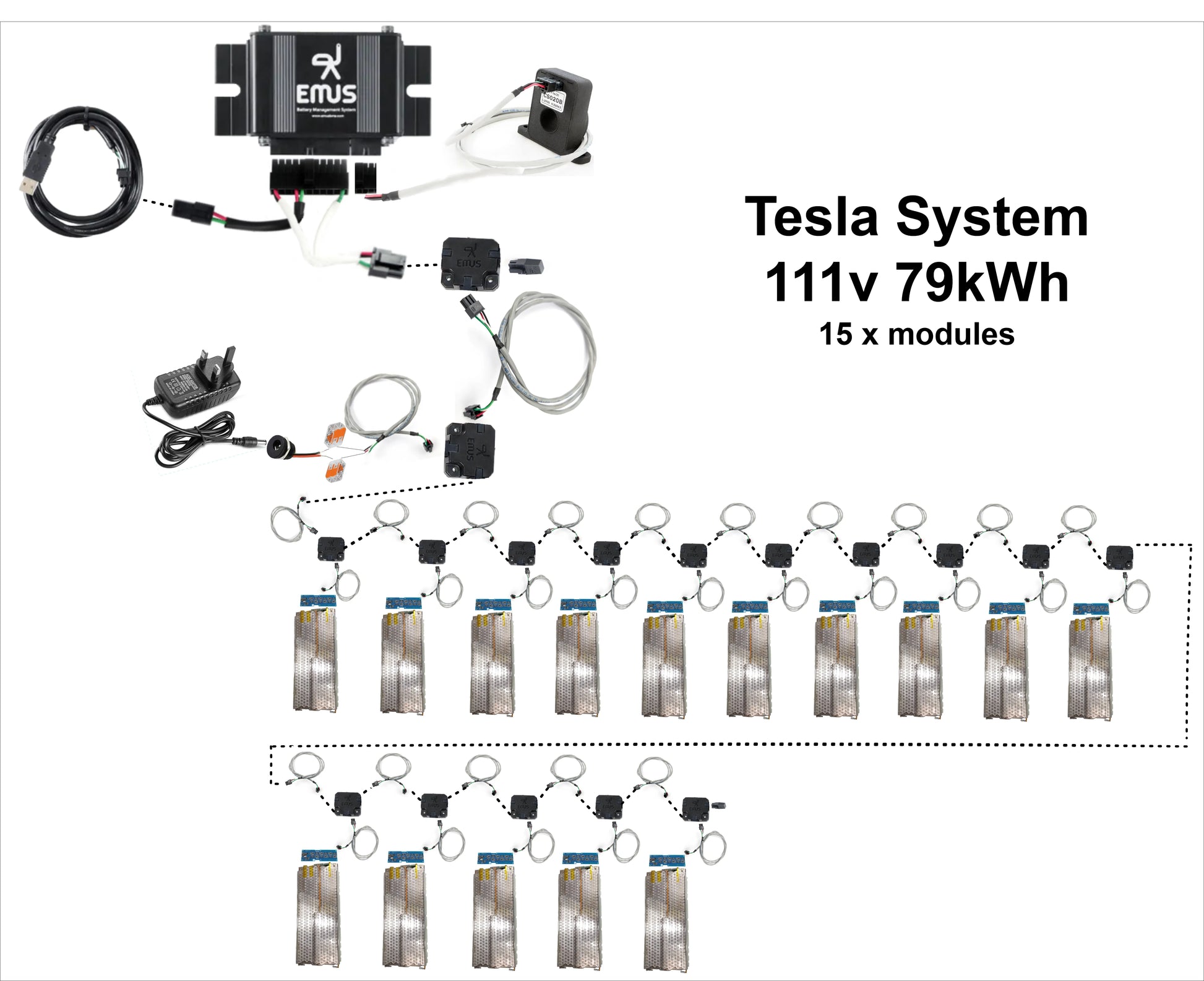

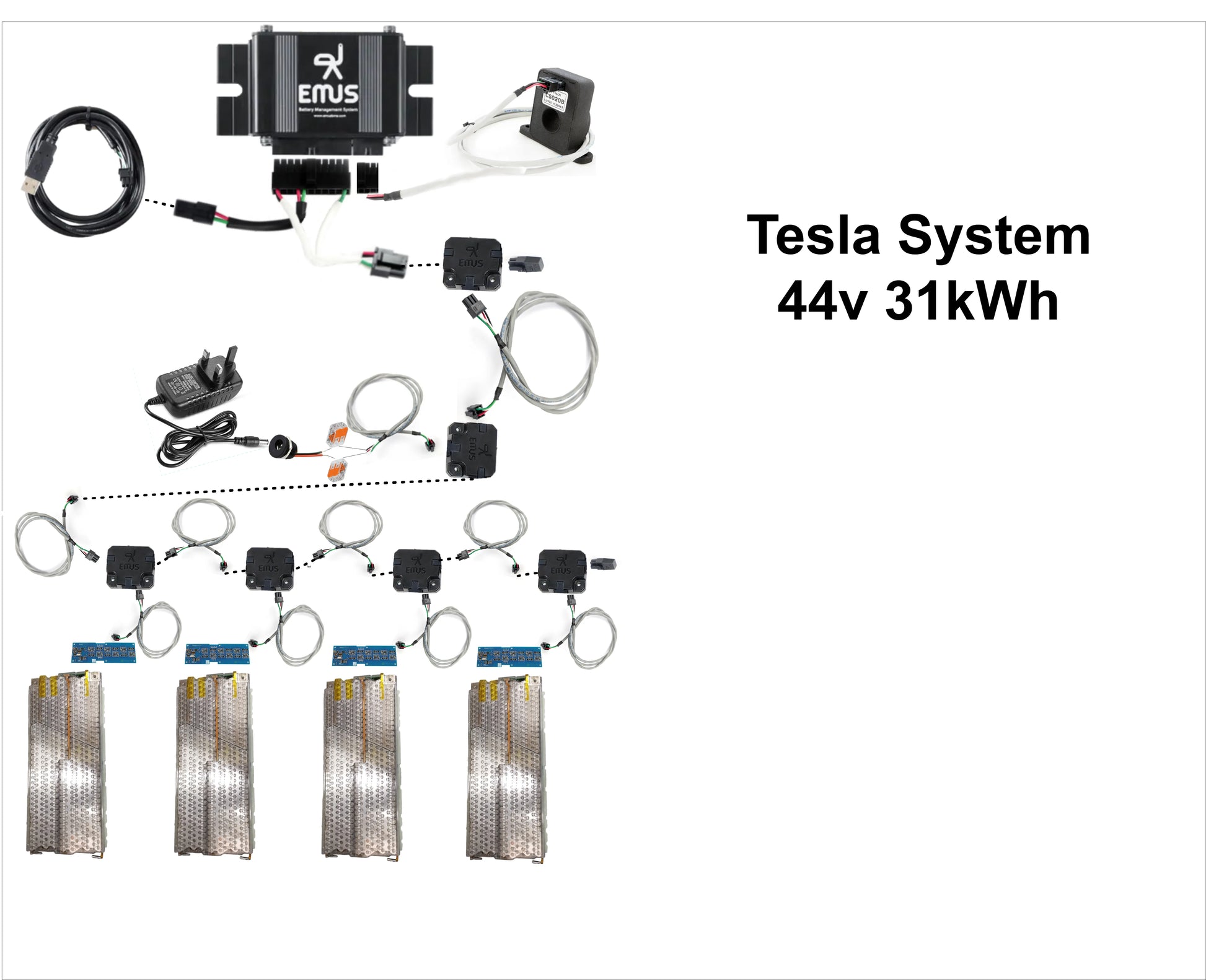

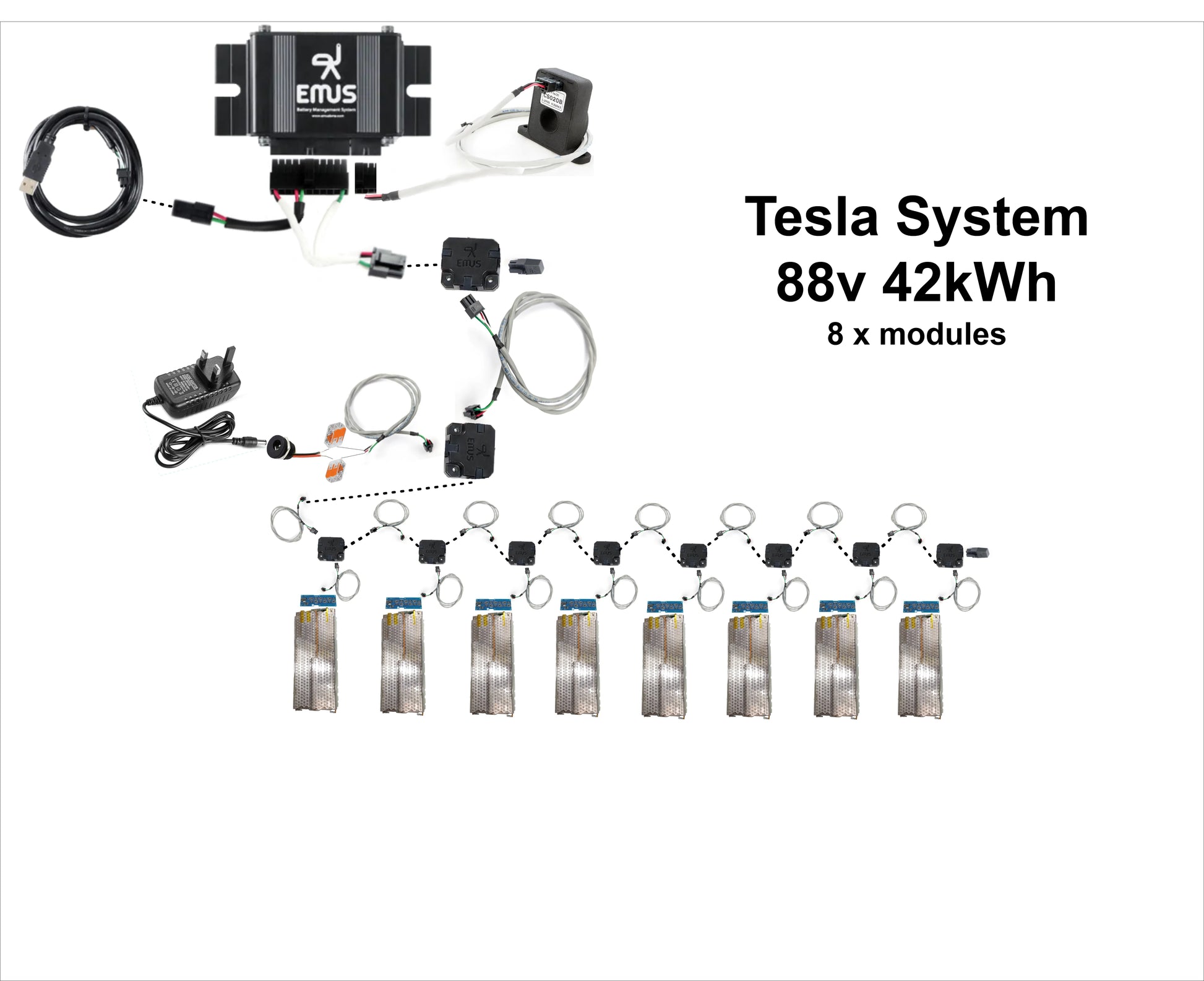

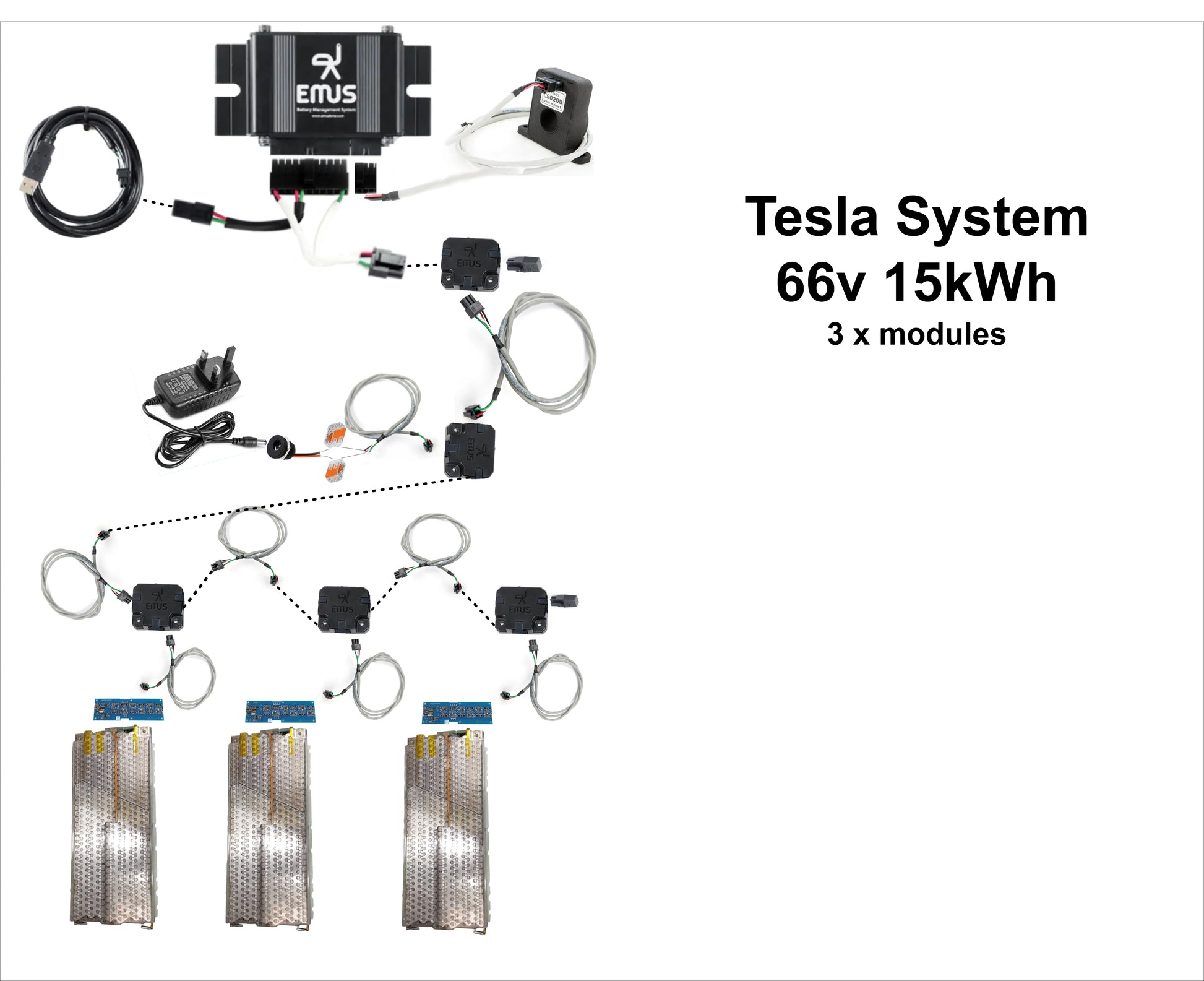

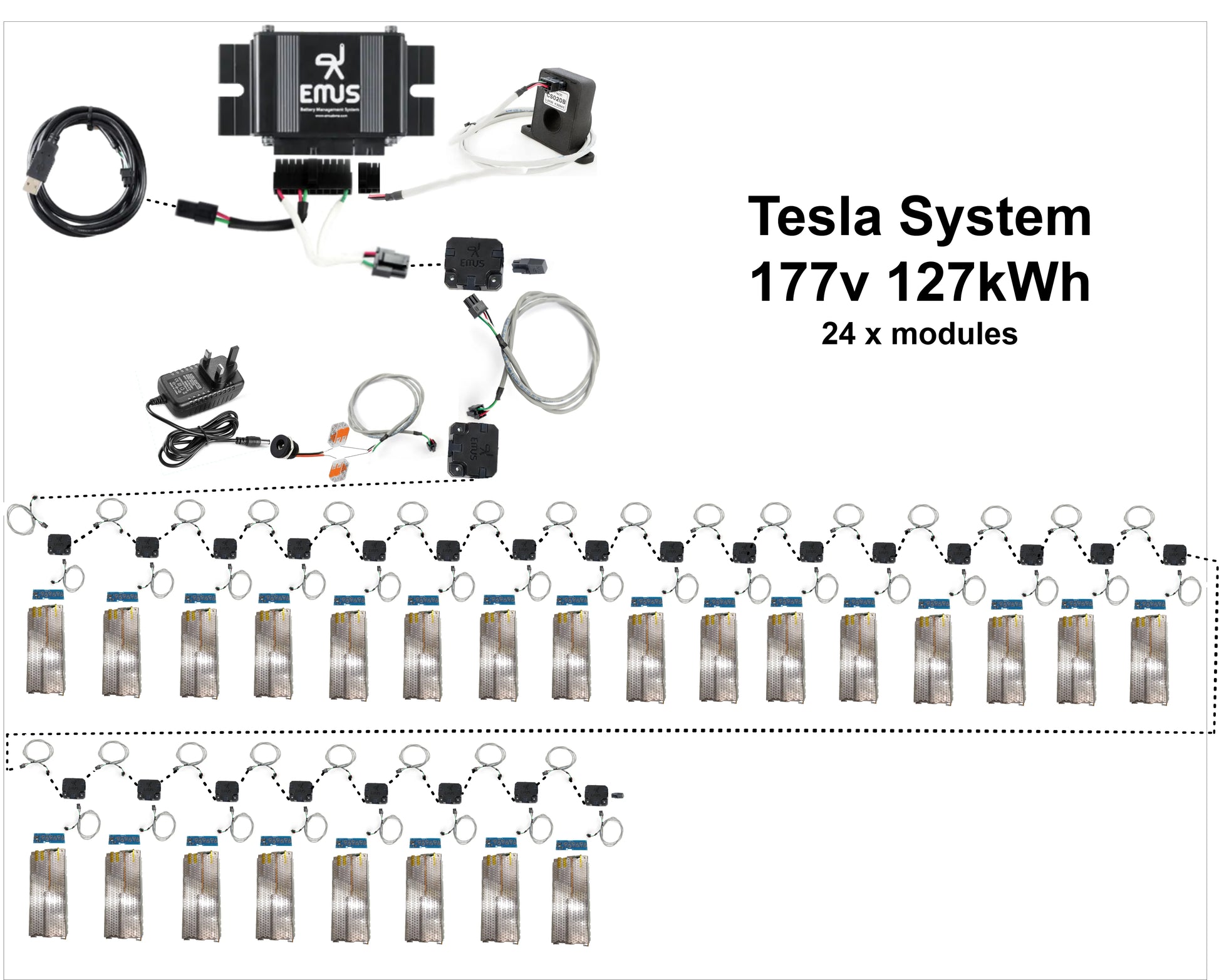

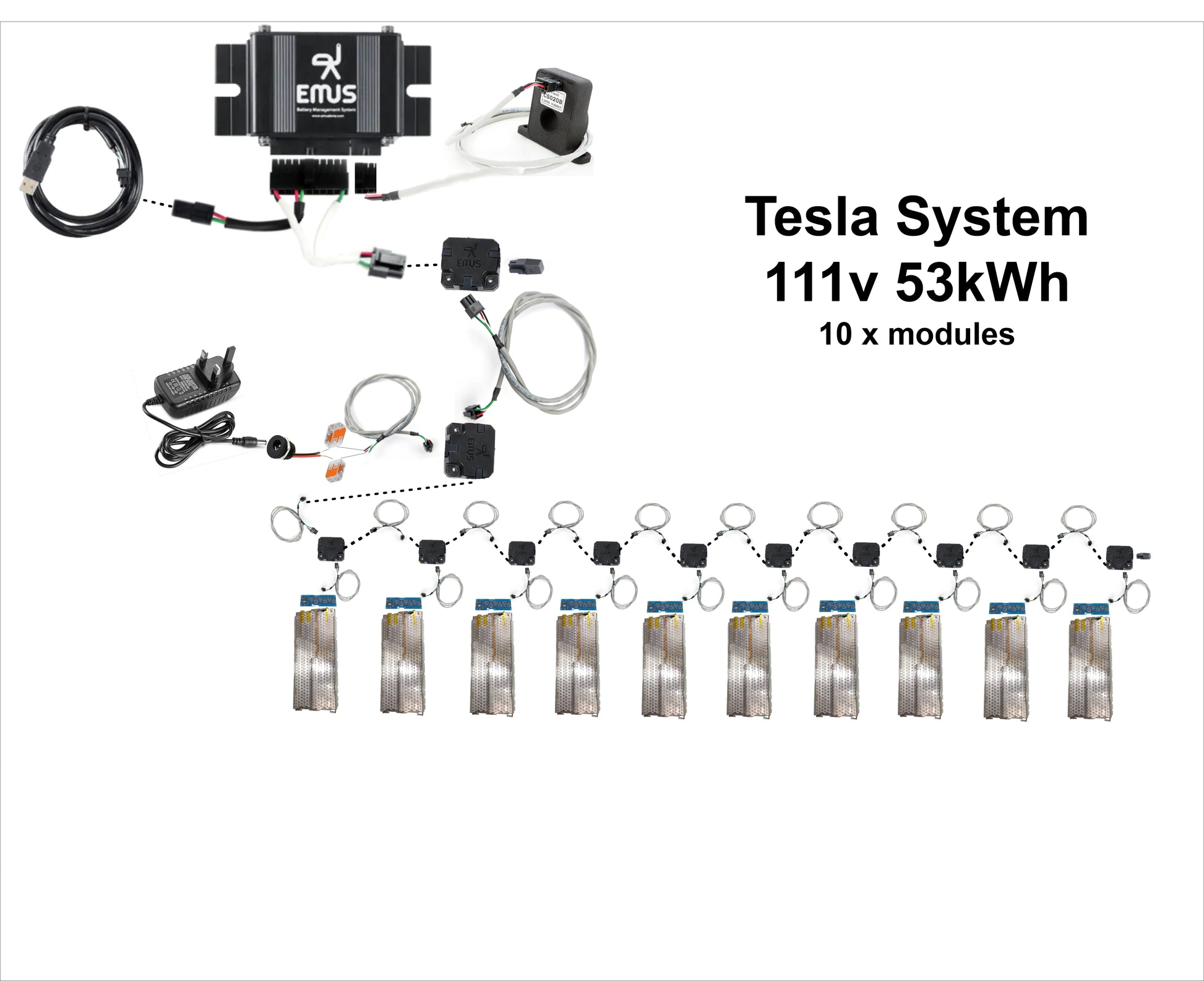

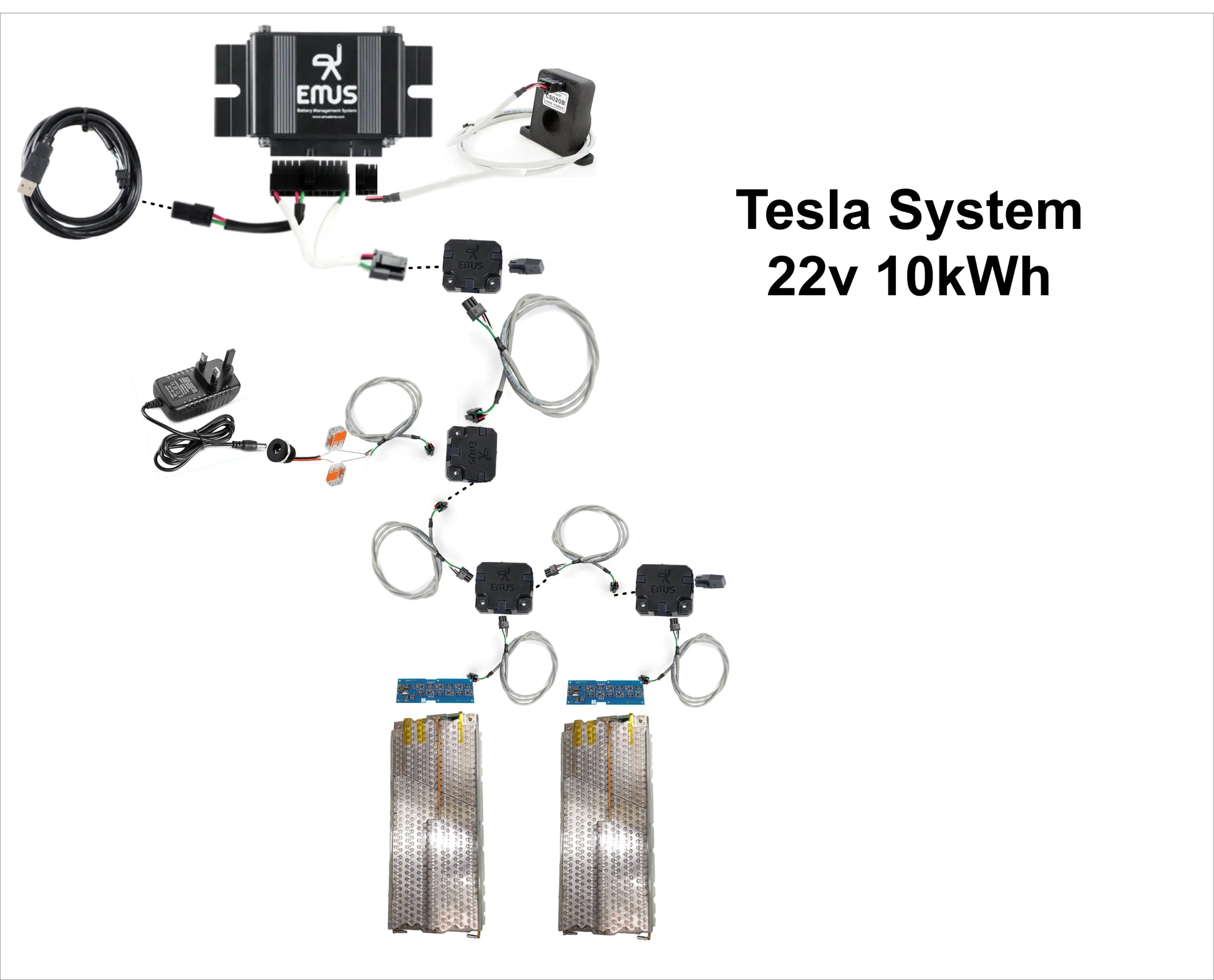

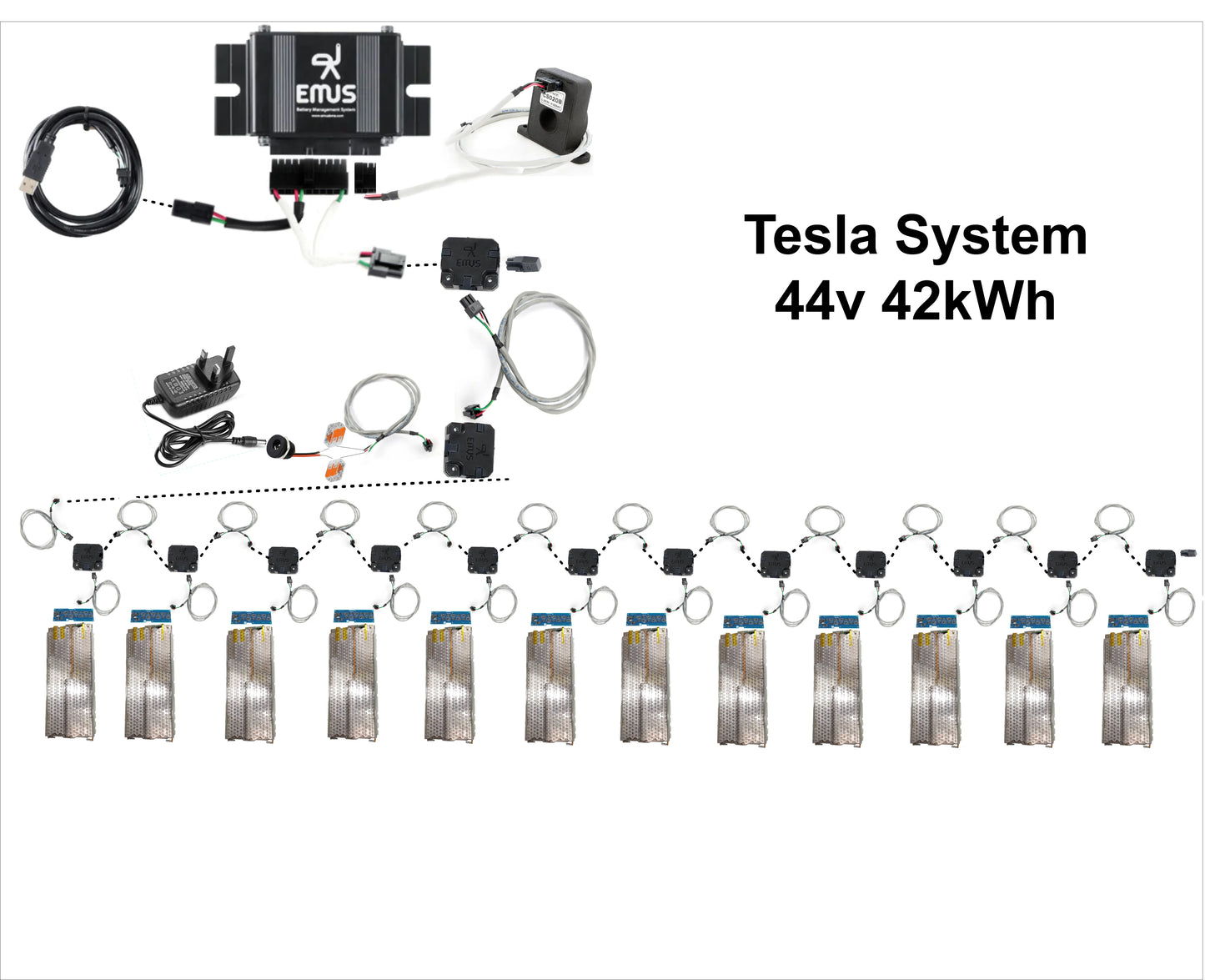

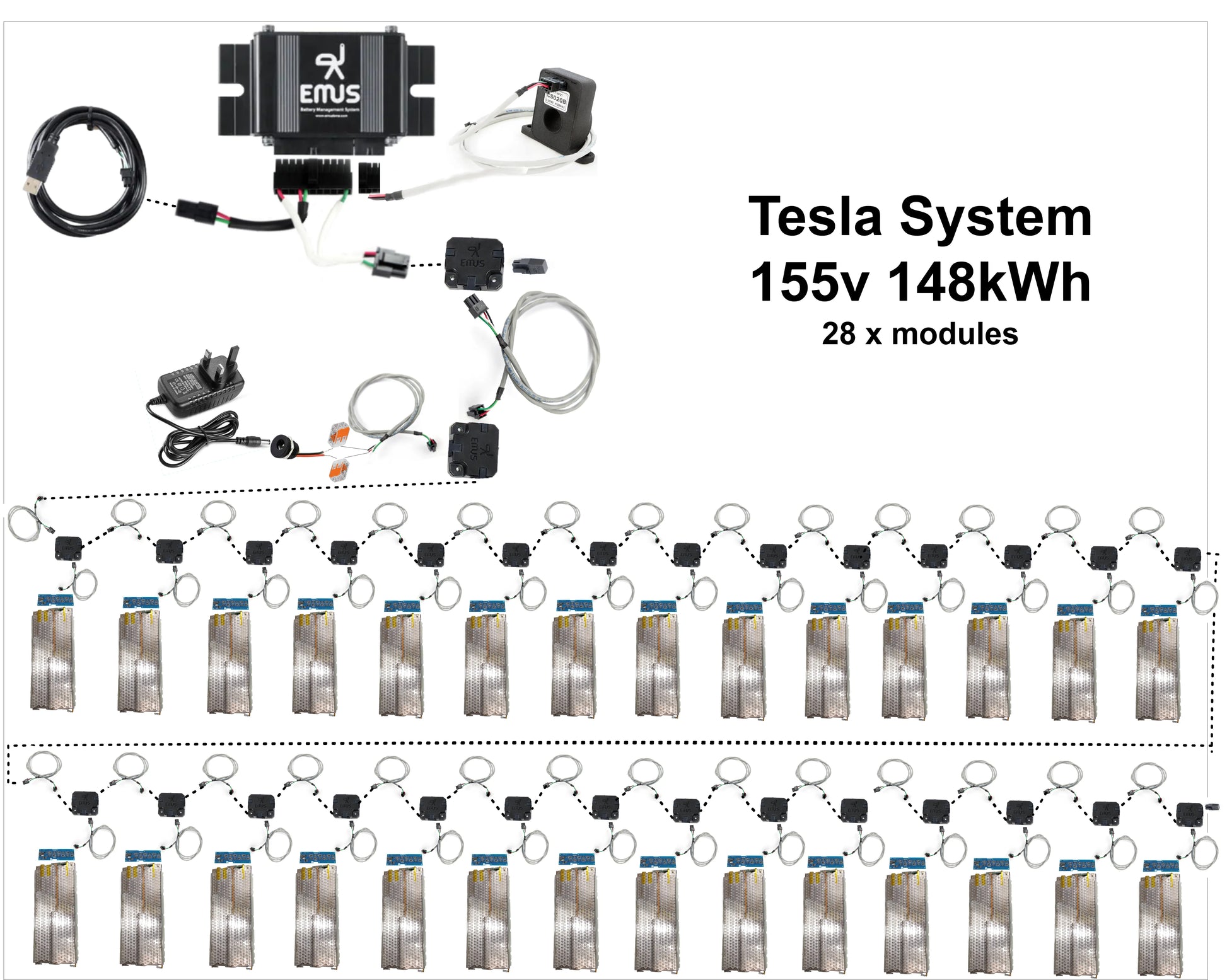

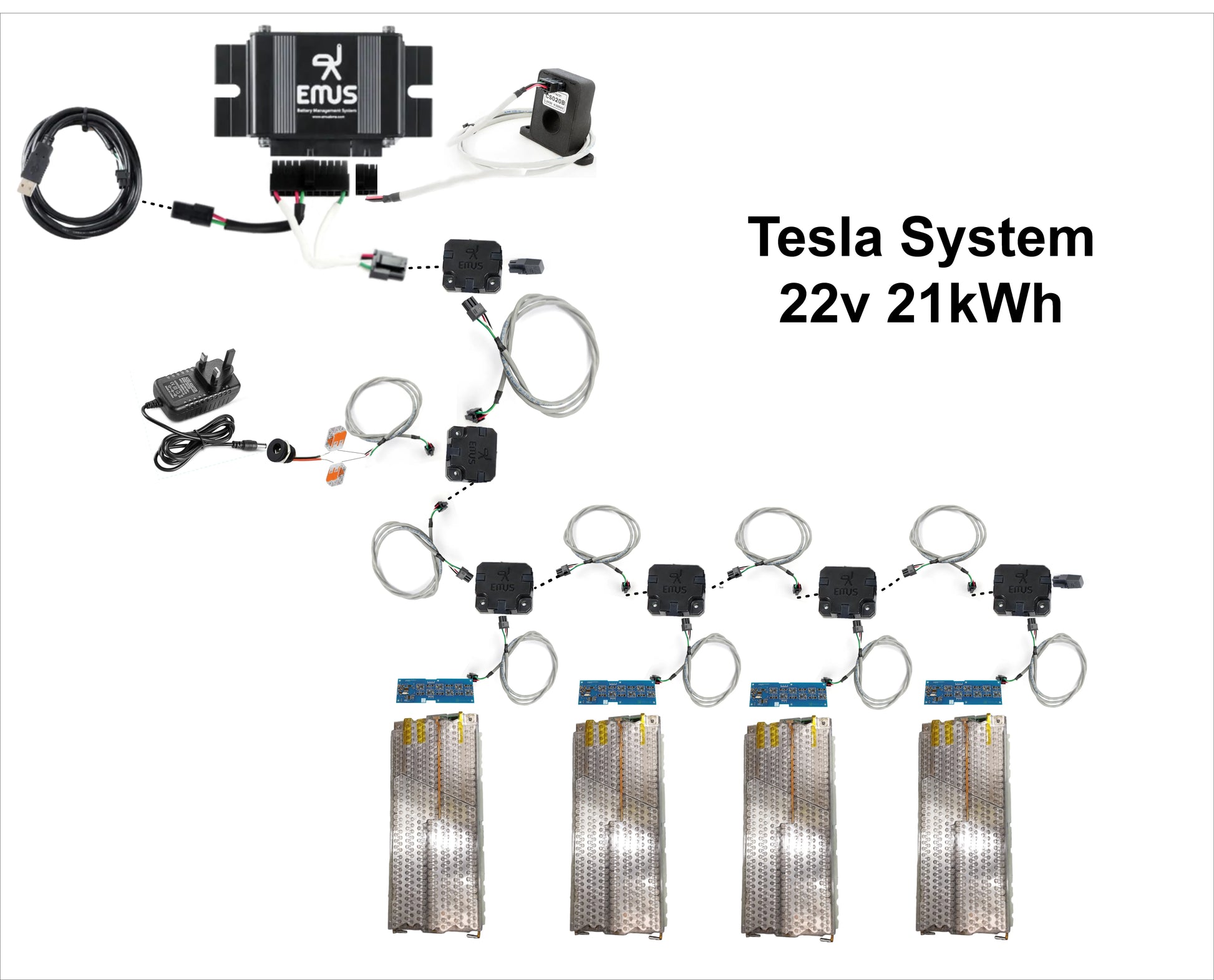

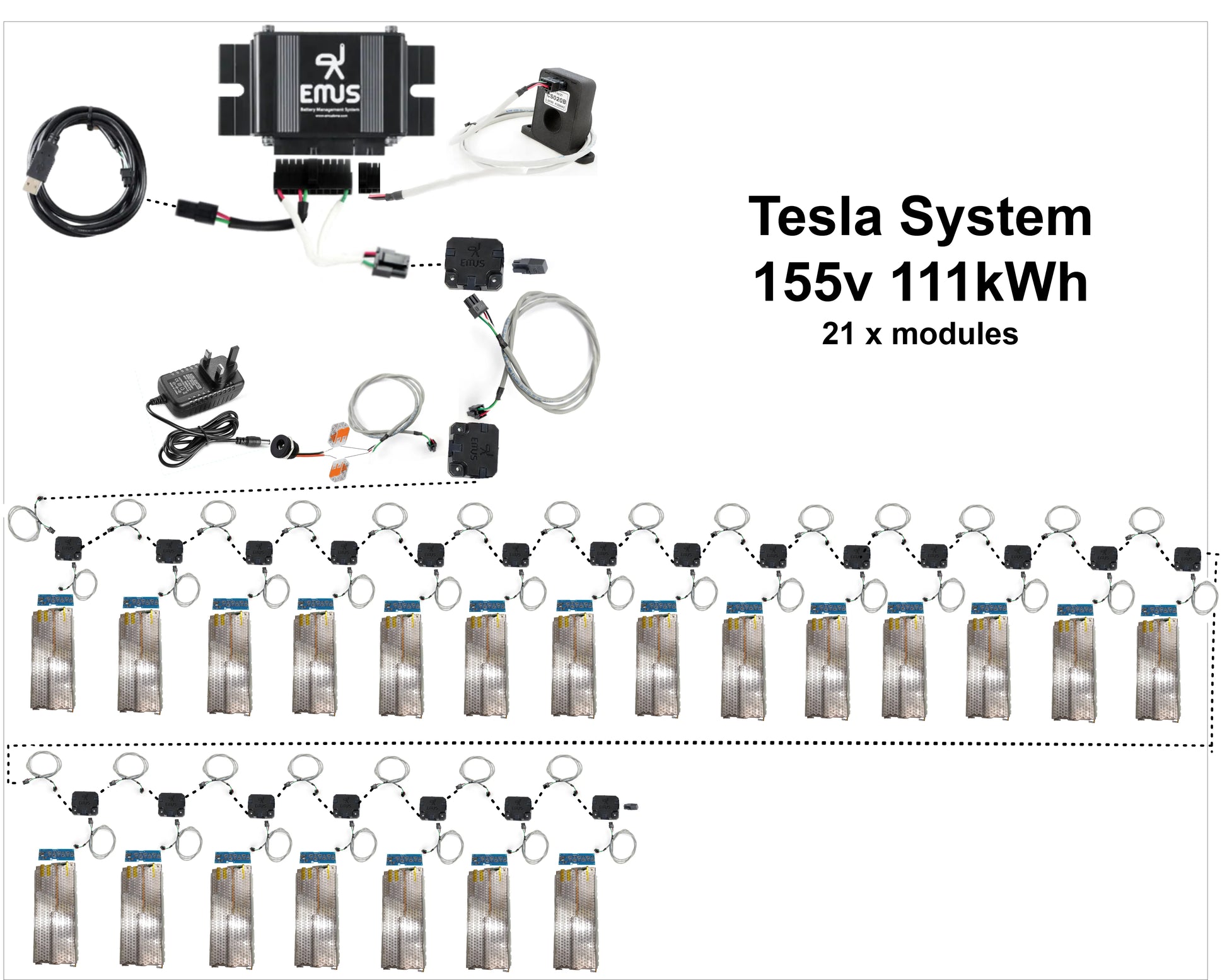

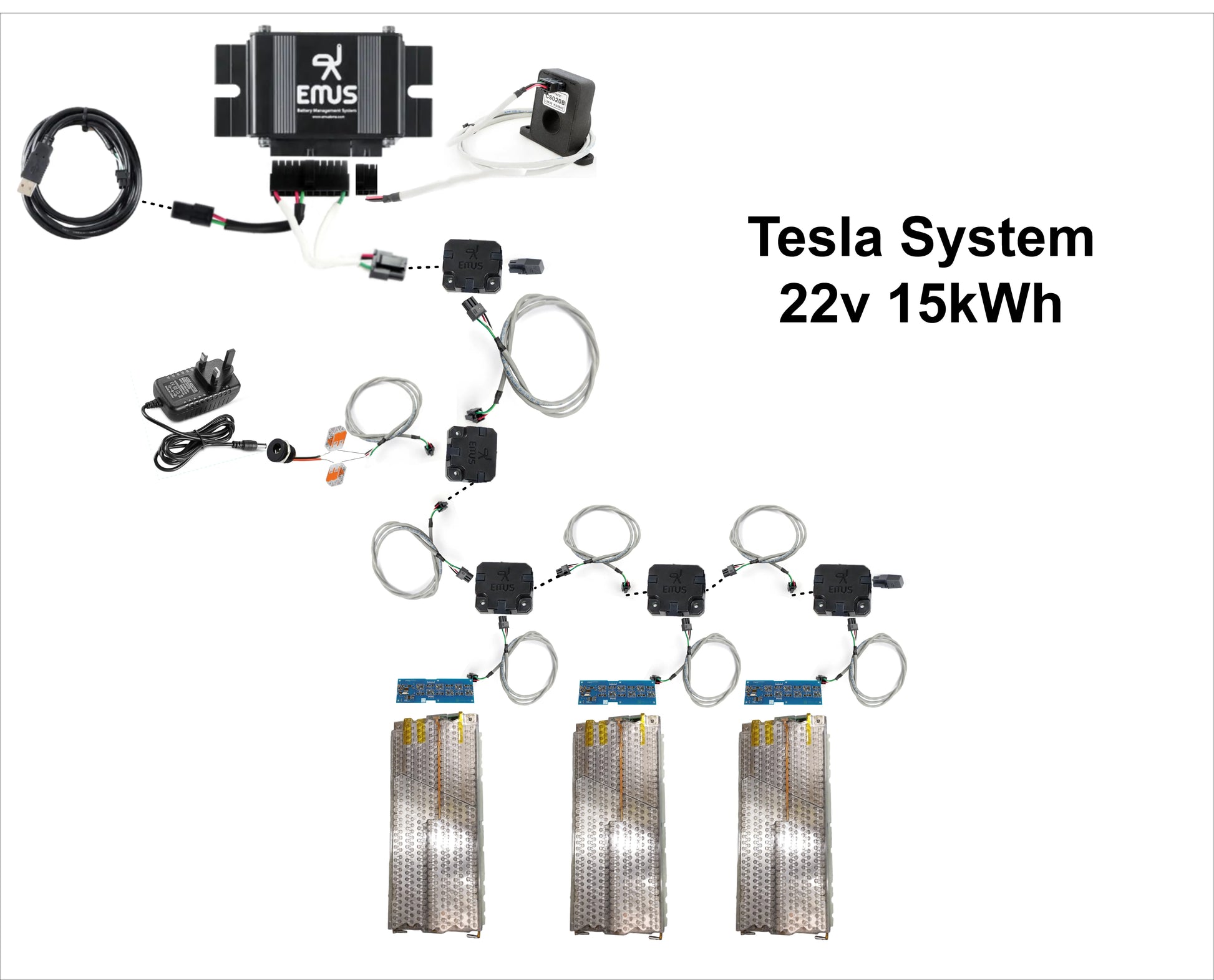

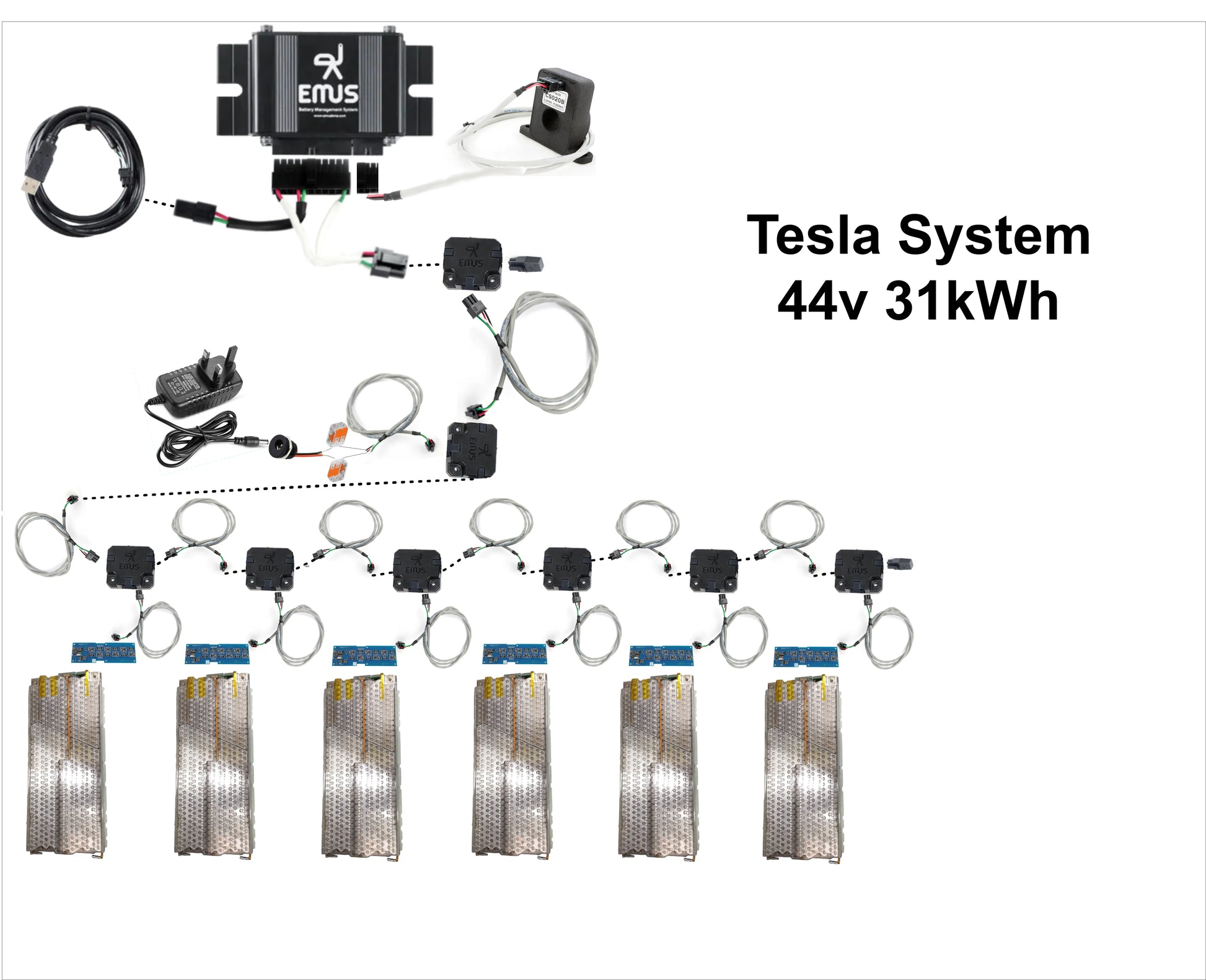

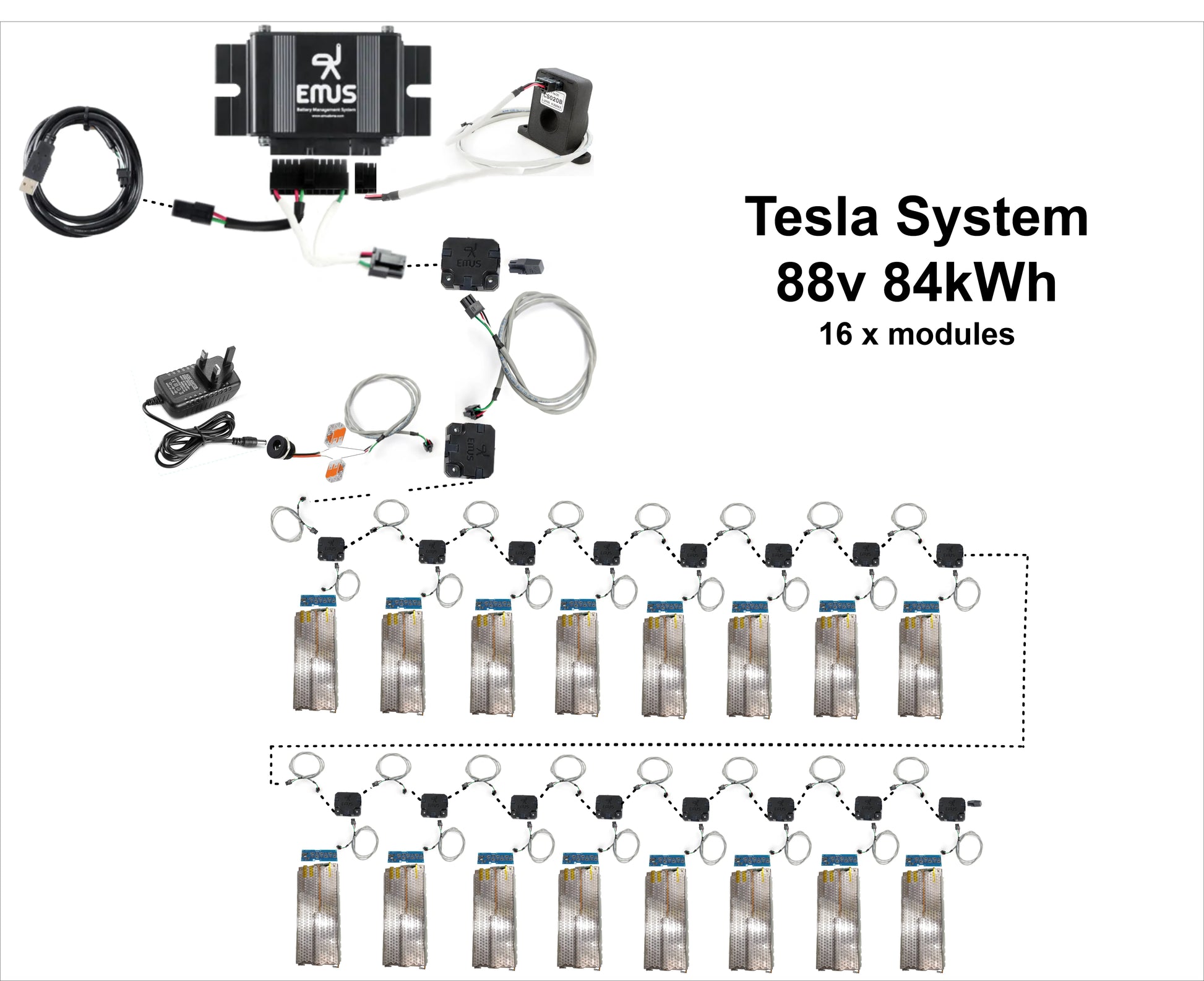

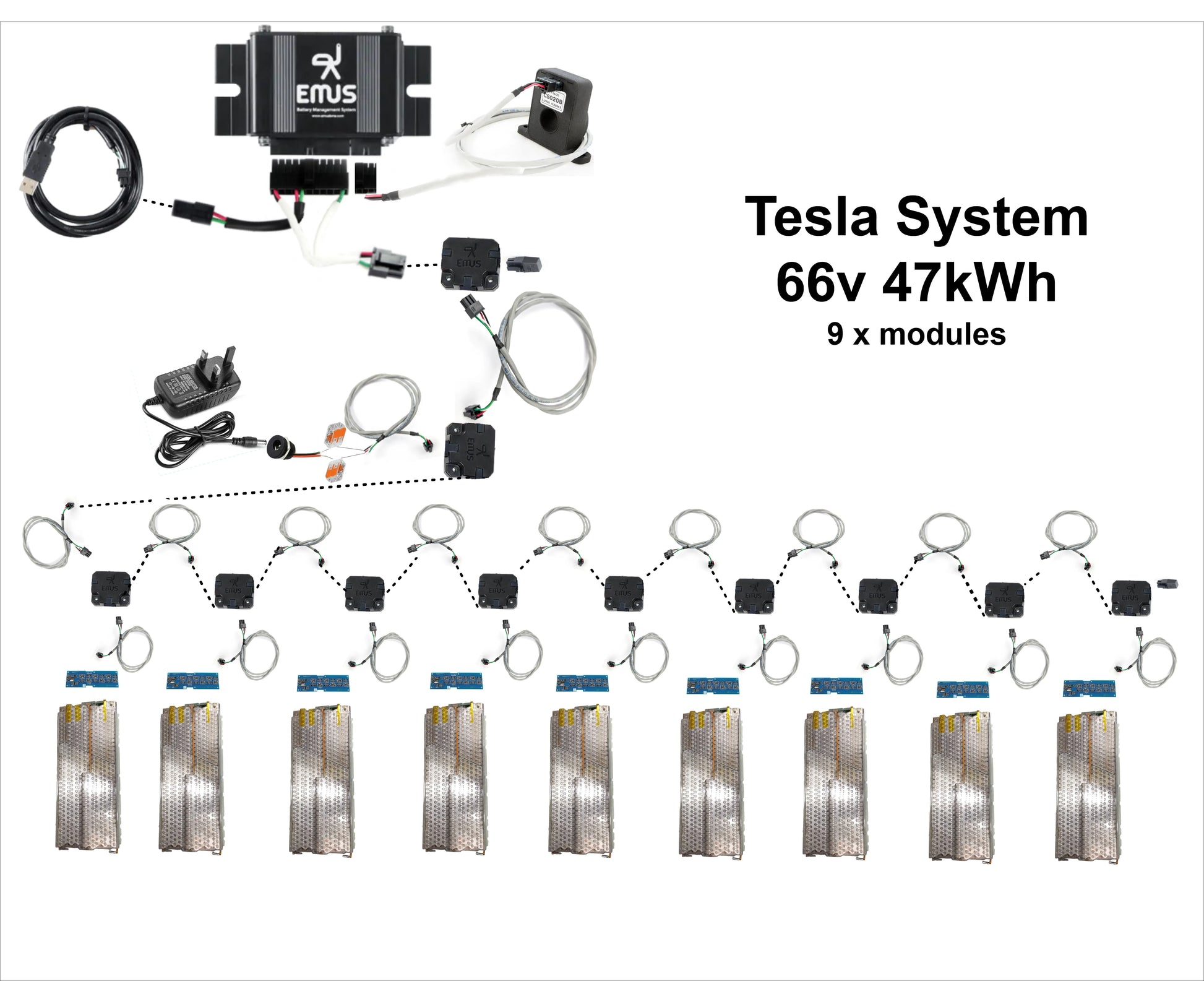

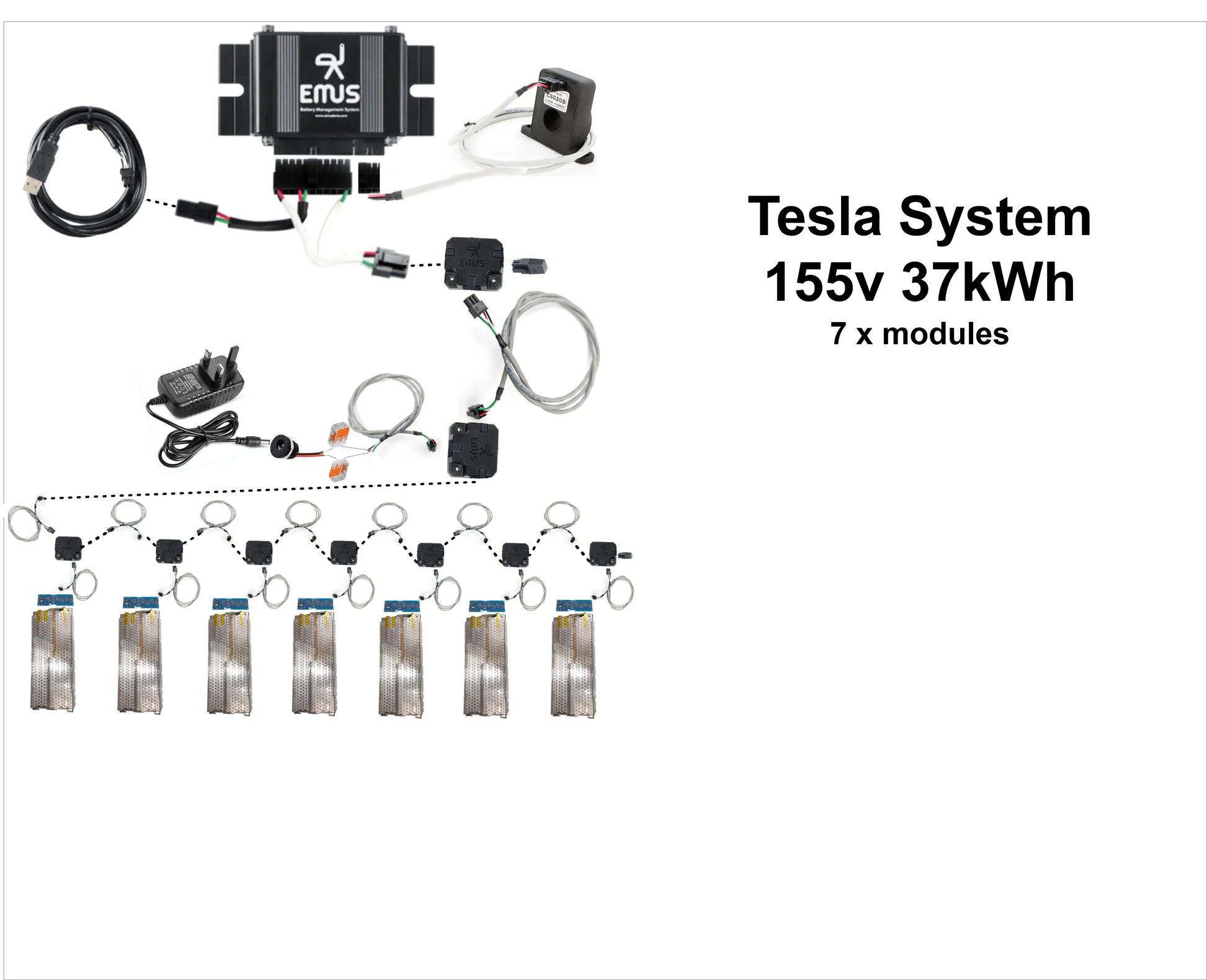

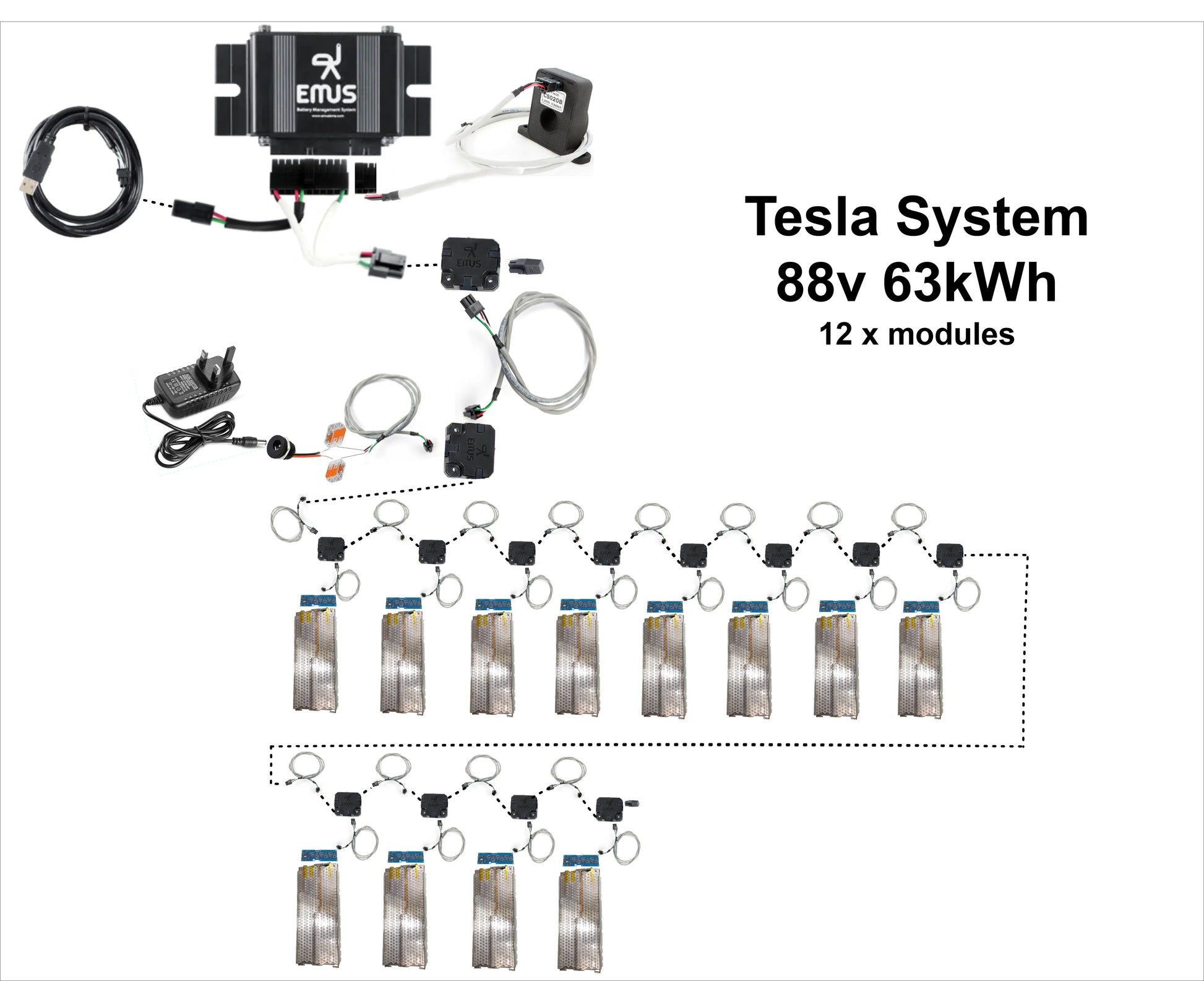

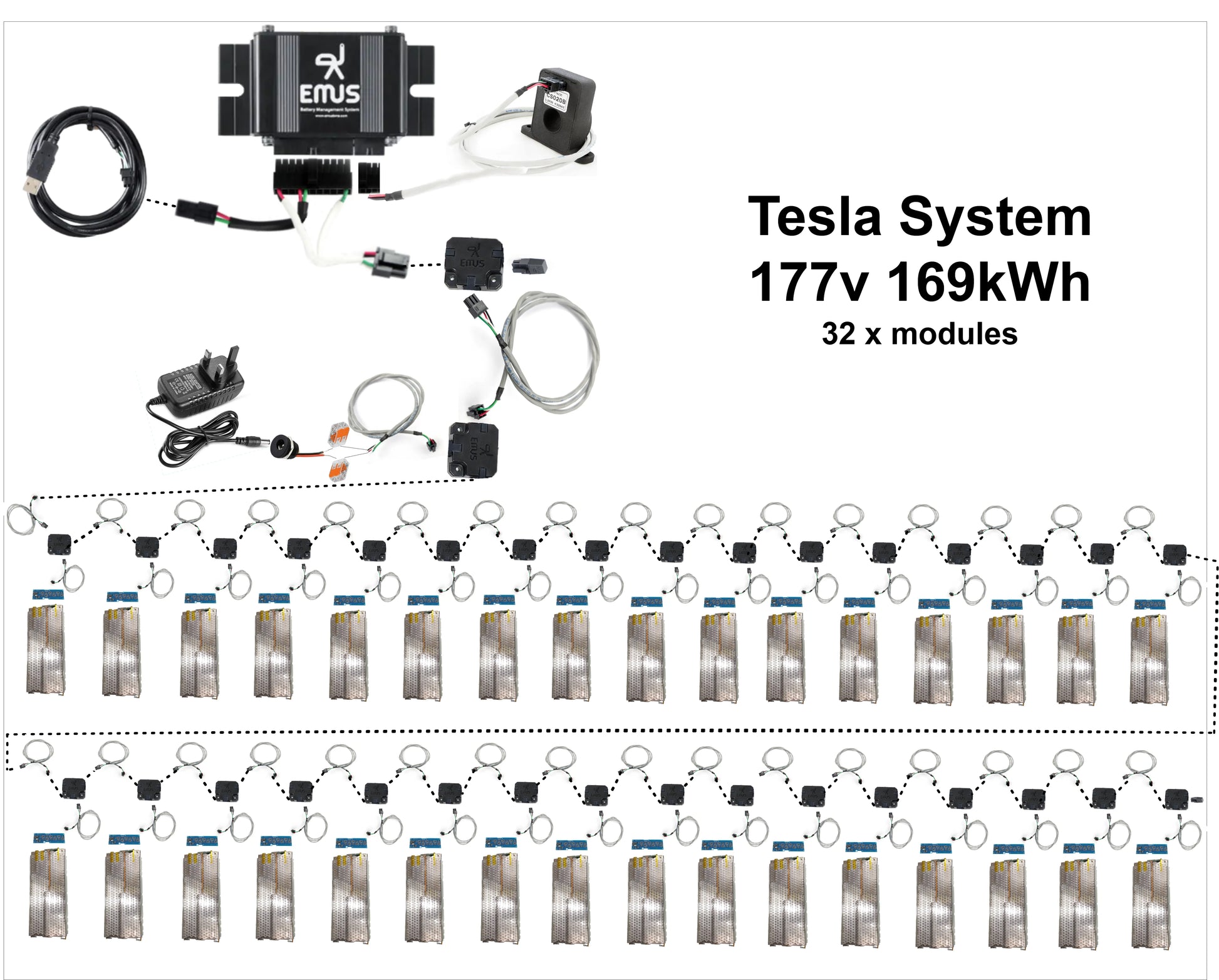

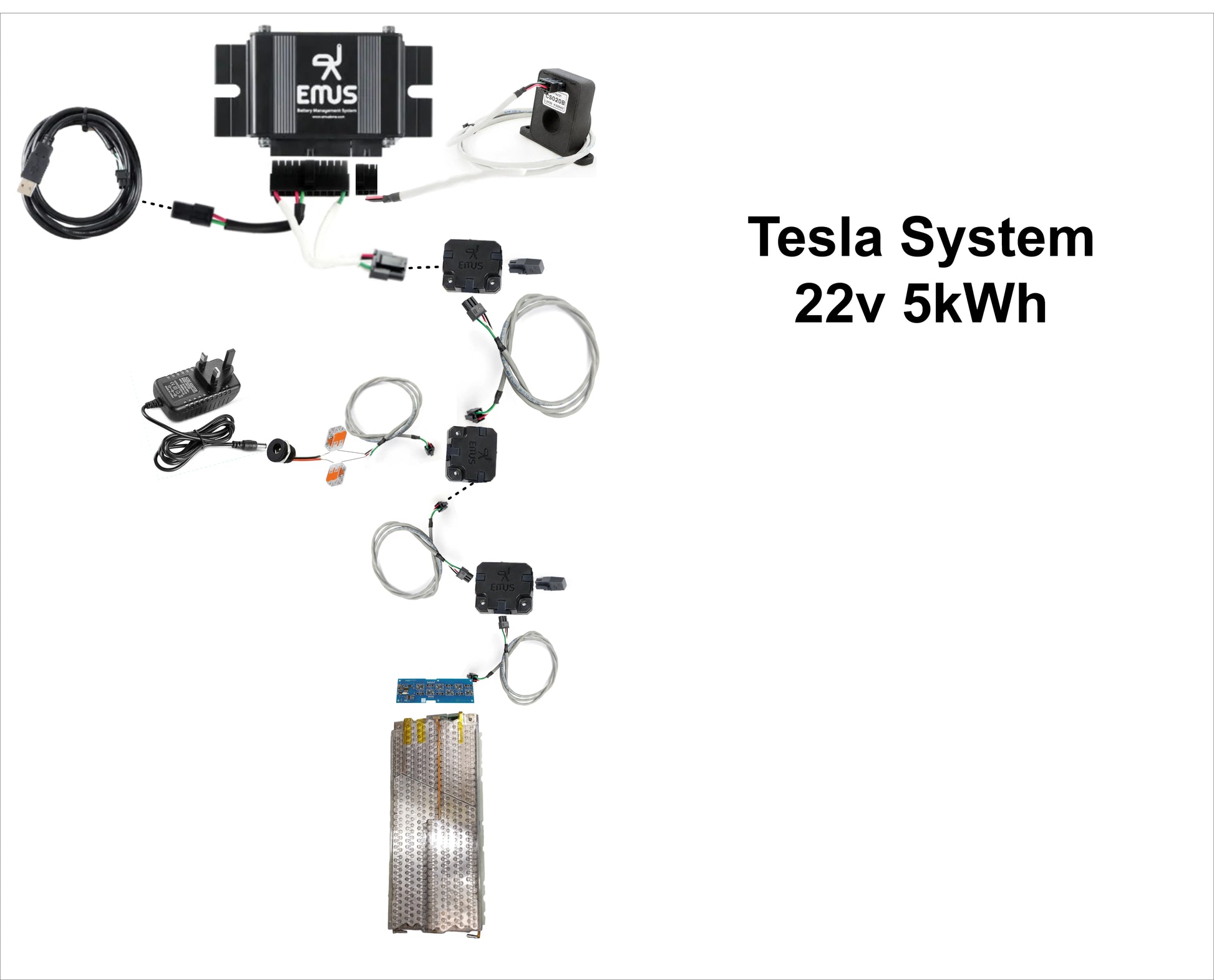

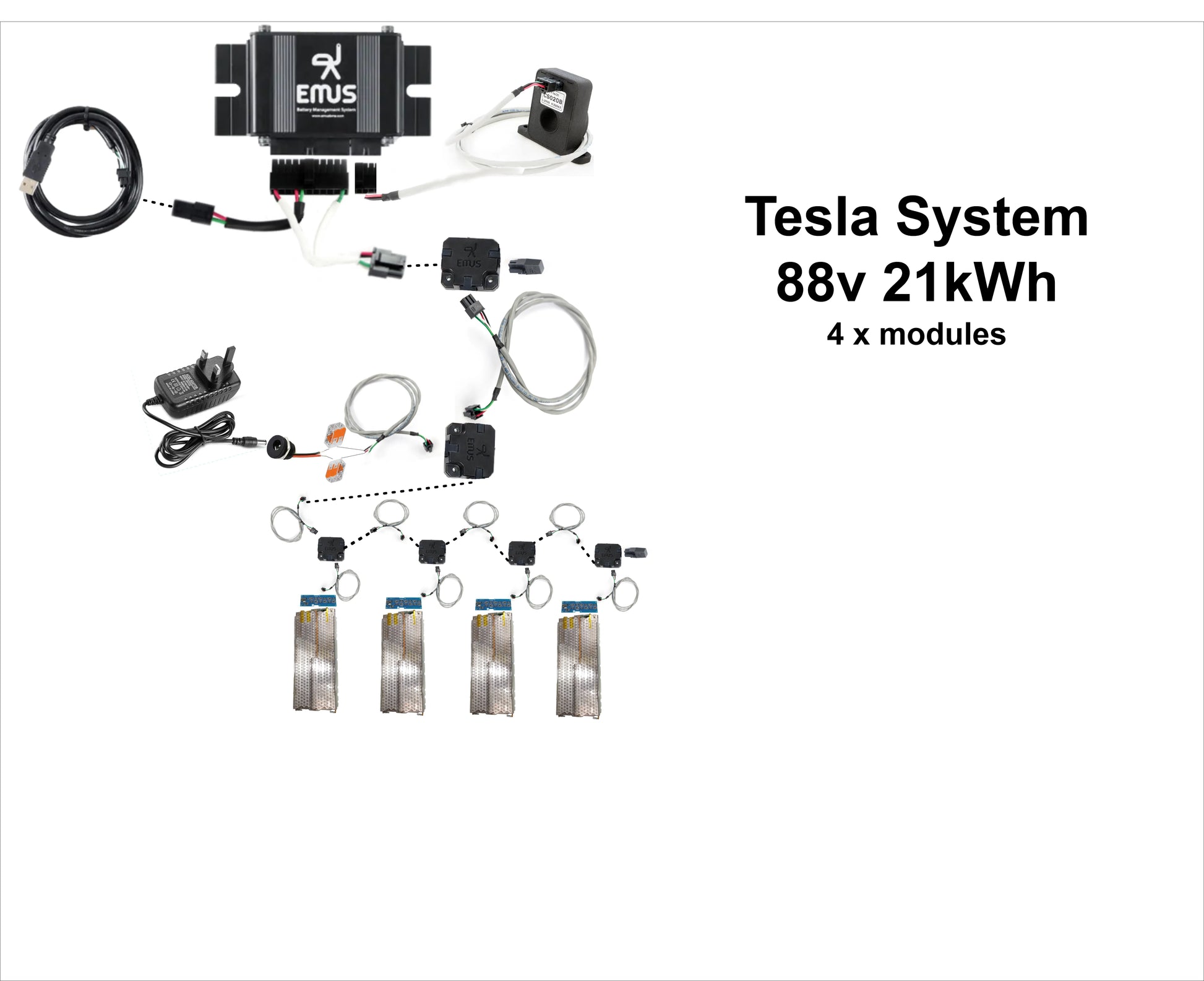

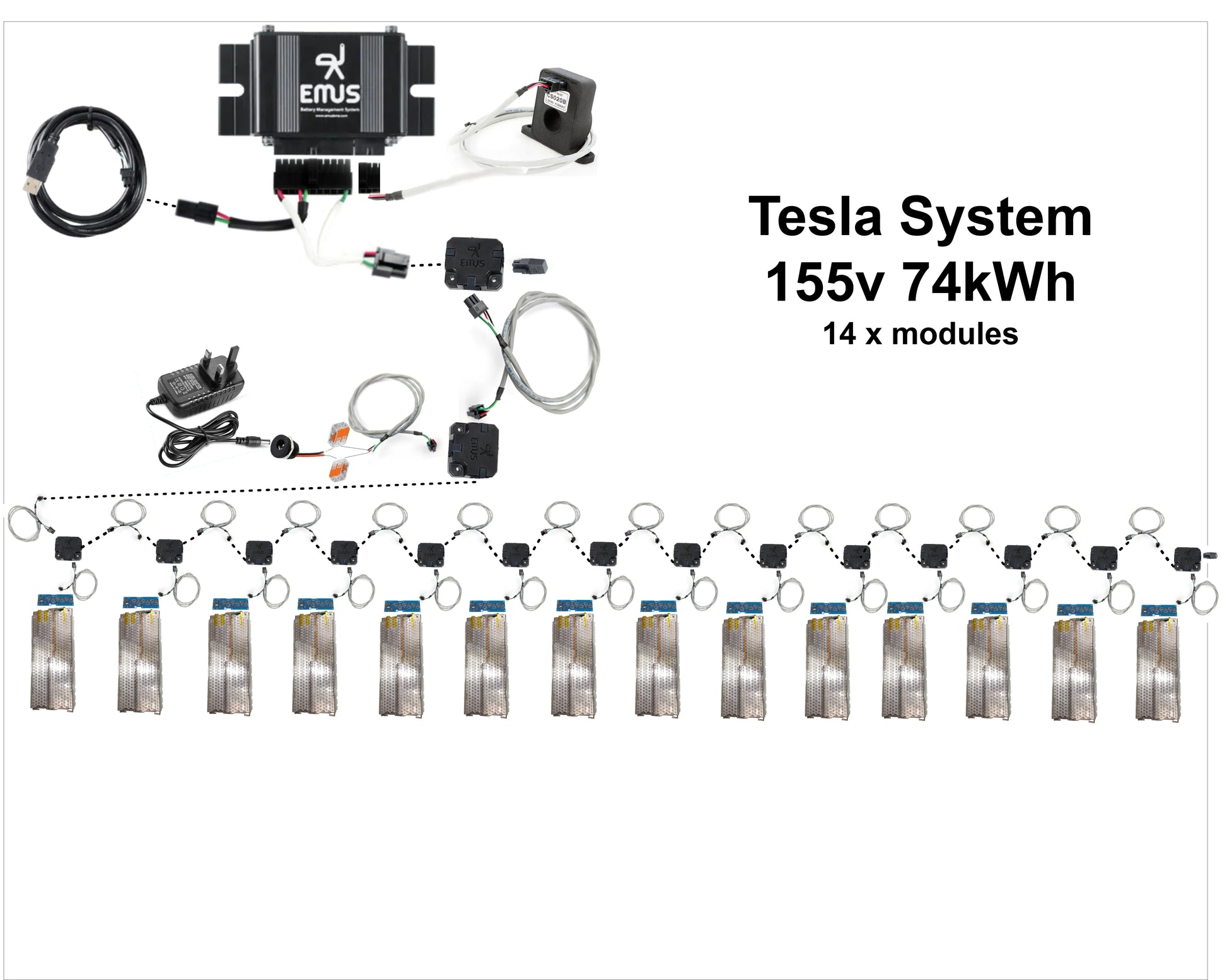

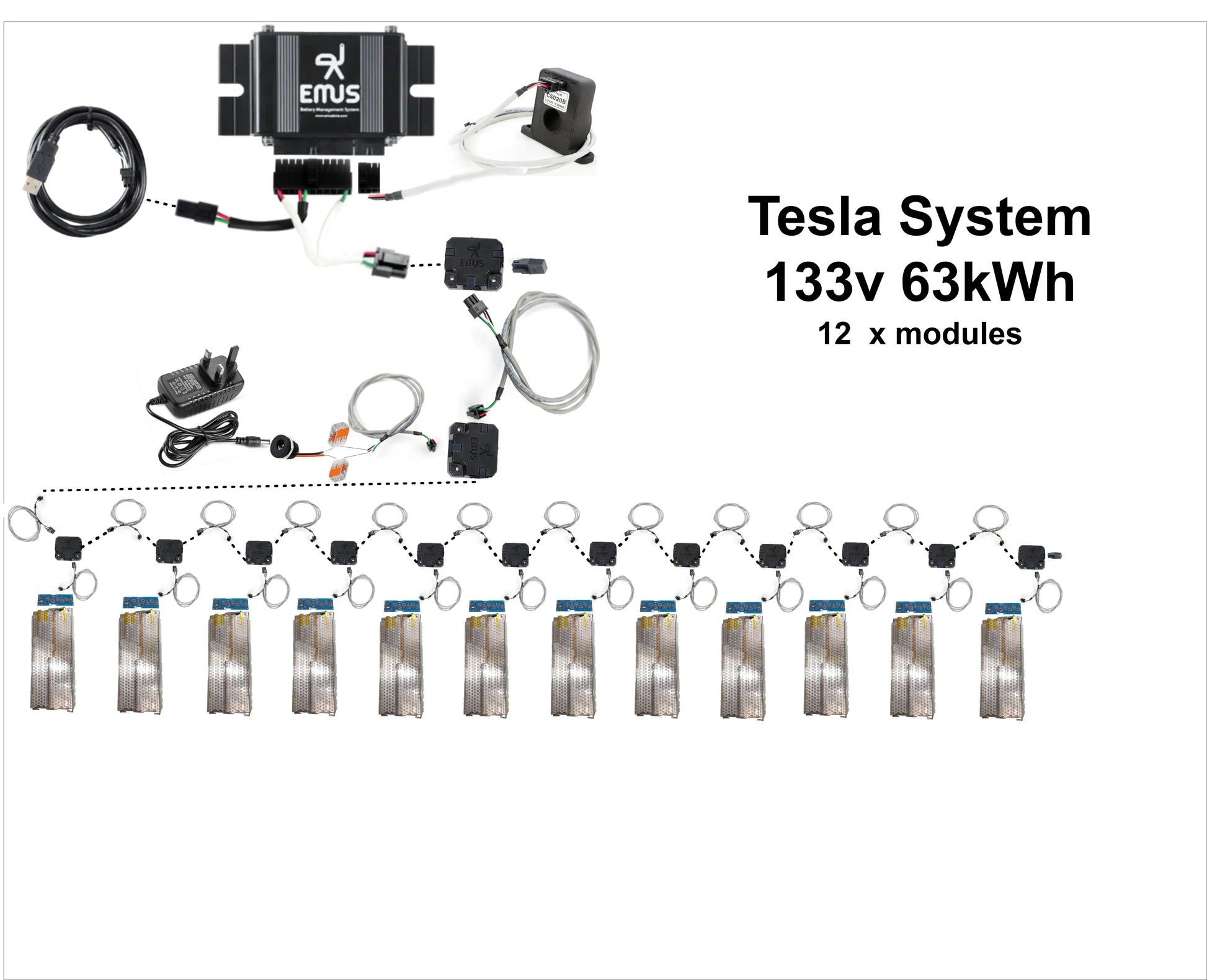

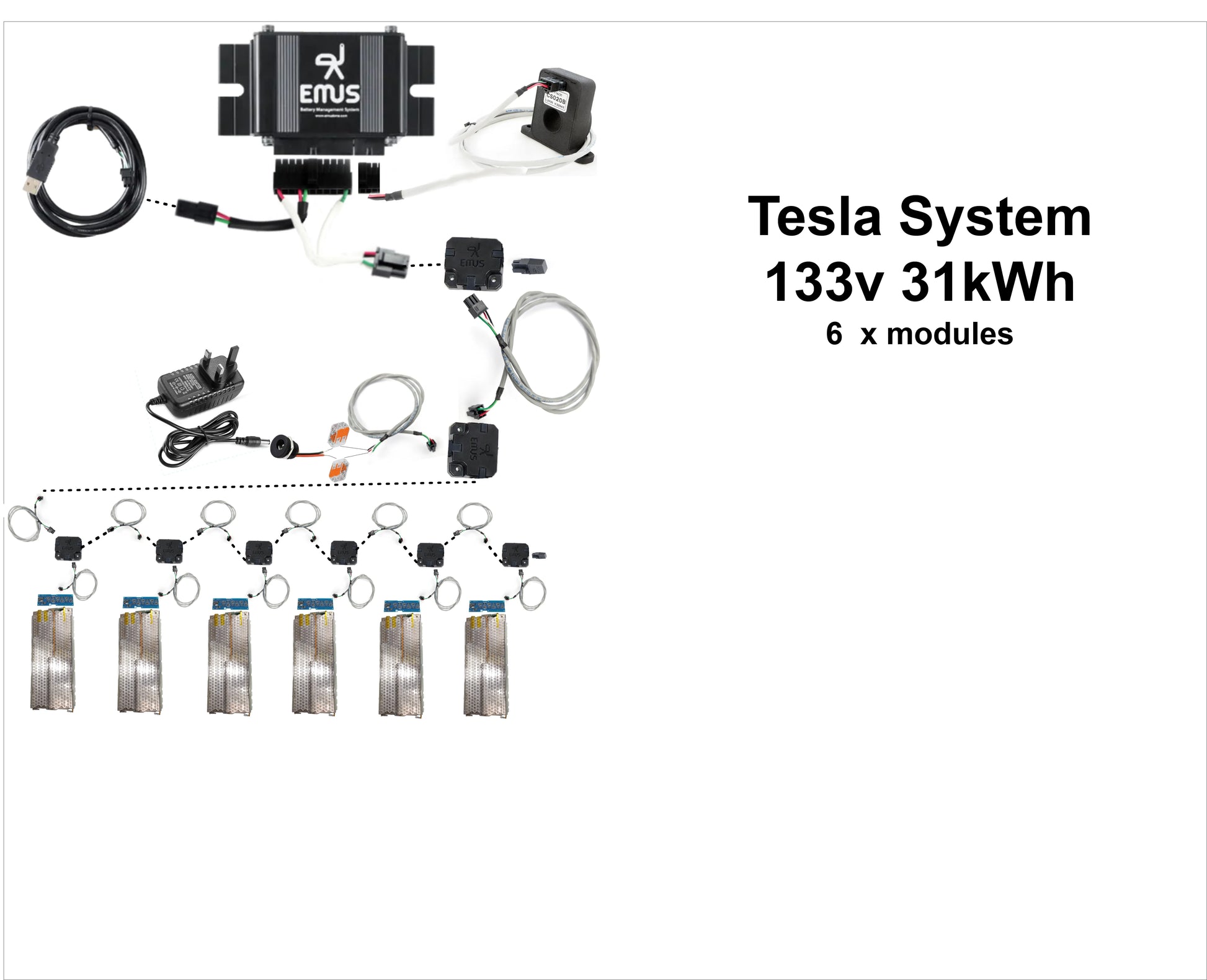

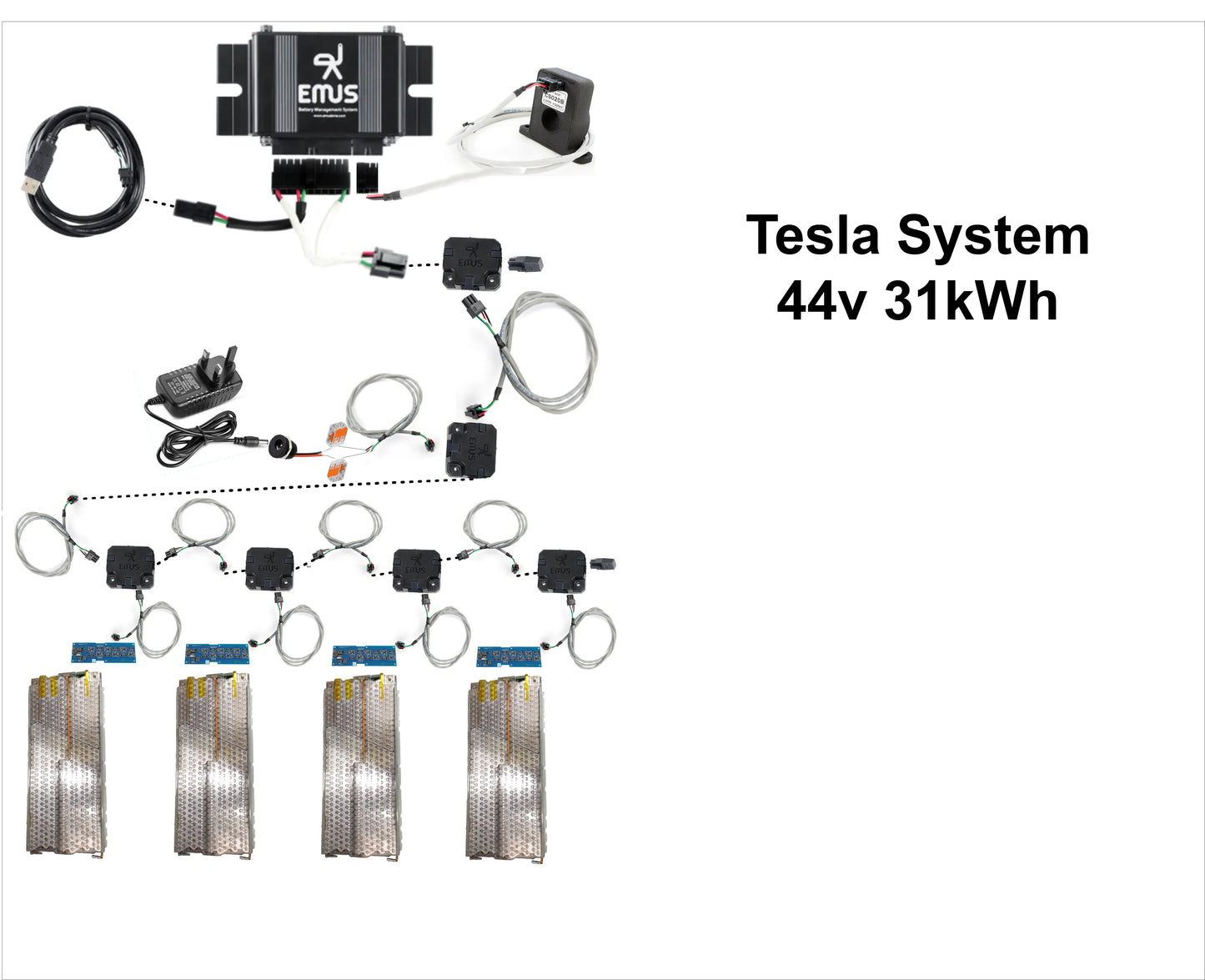

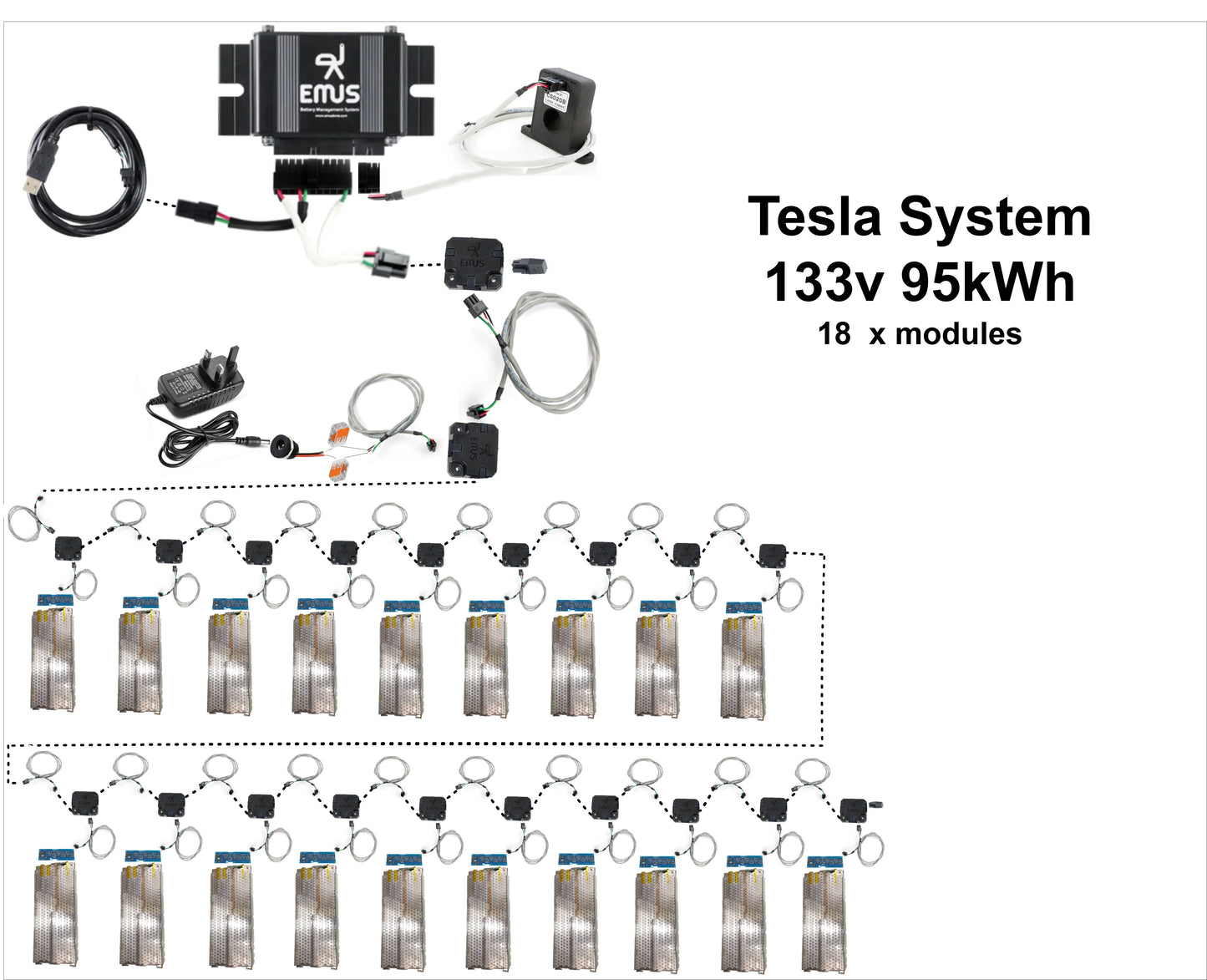

These Kit will include the correct number of Tesla Battery Modules for your selected kWh and voltage. It also includes the correct number of cables, slave boards (Retrofit boards), connectors etc for a complete kit. Some electrical understanding is required.
If you need to know the number of modules above divide the kWh selected by 5.3 the kWh of a single Tesla Model S module.

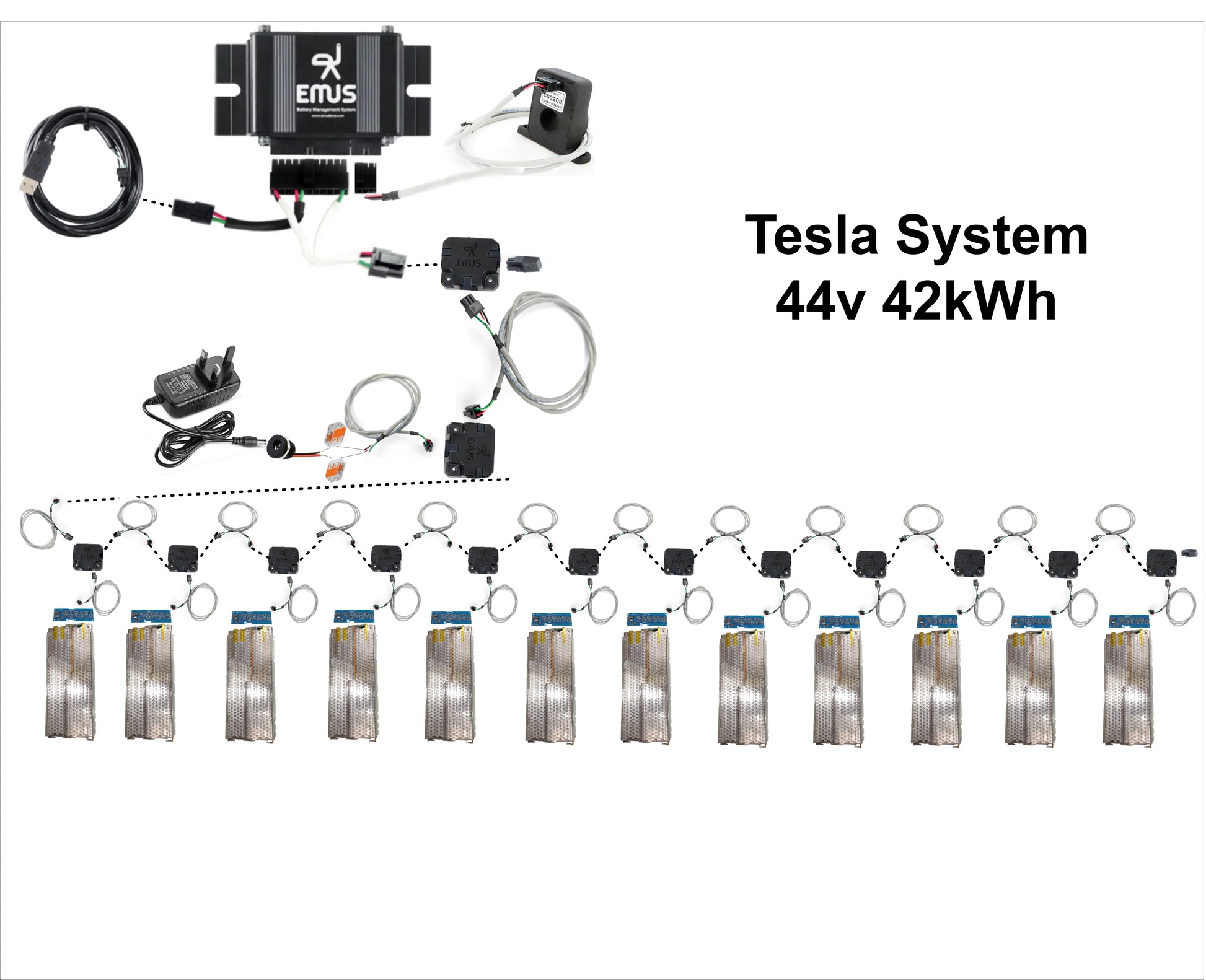

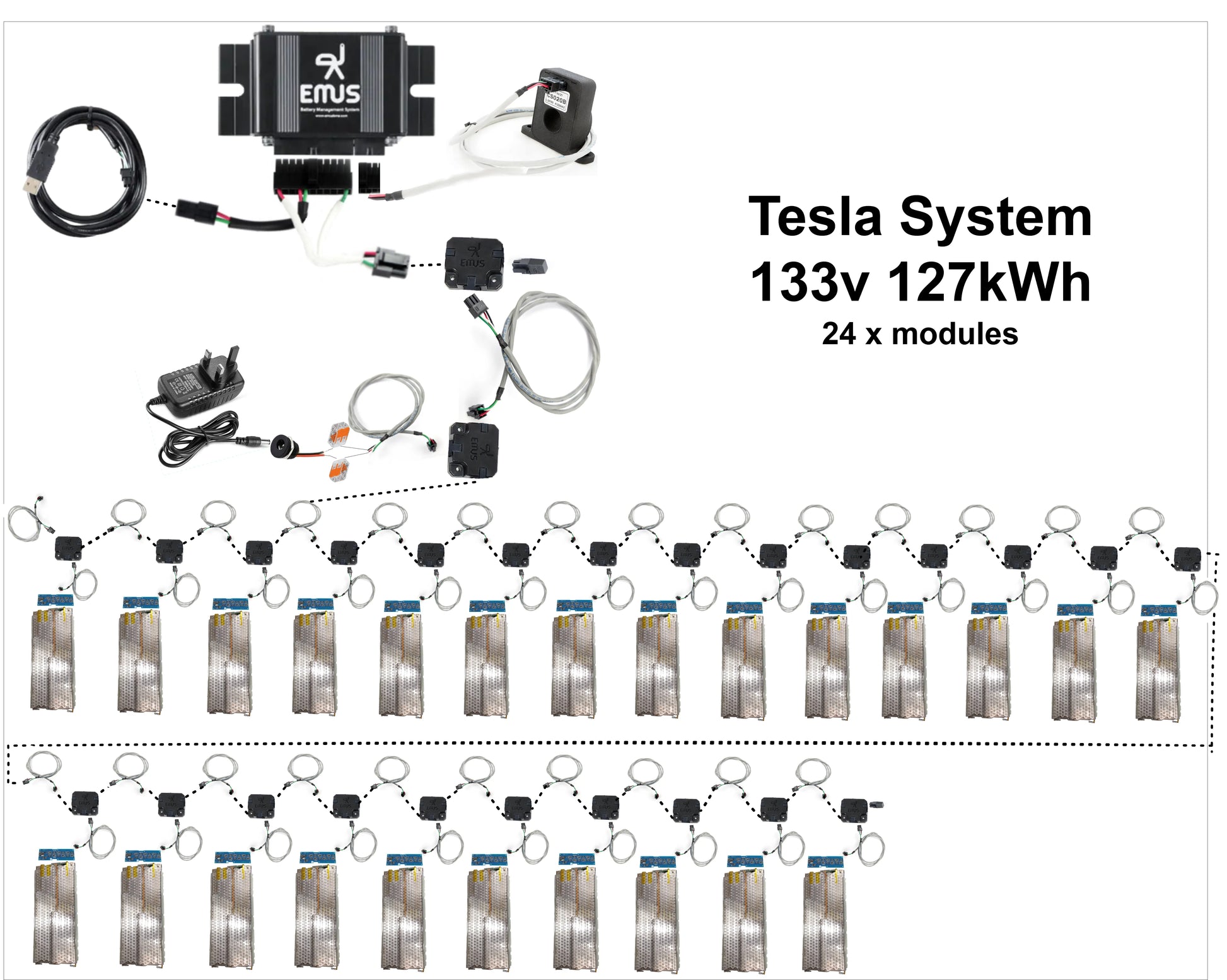

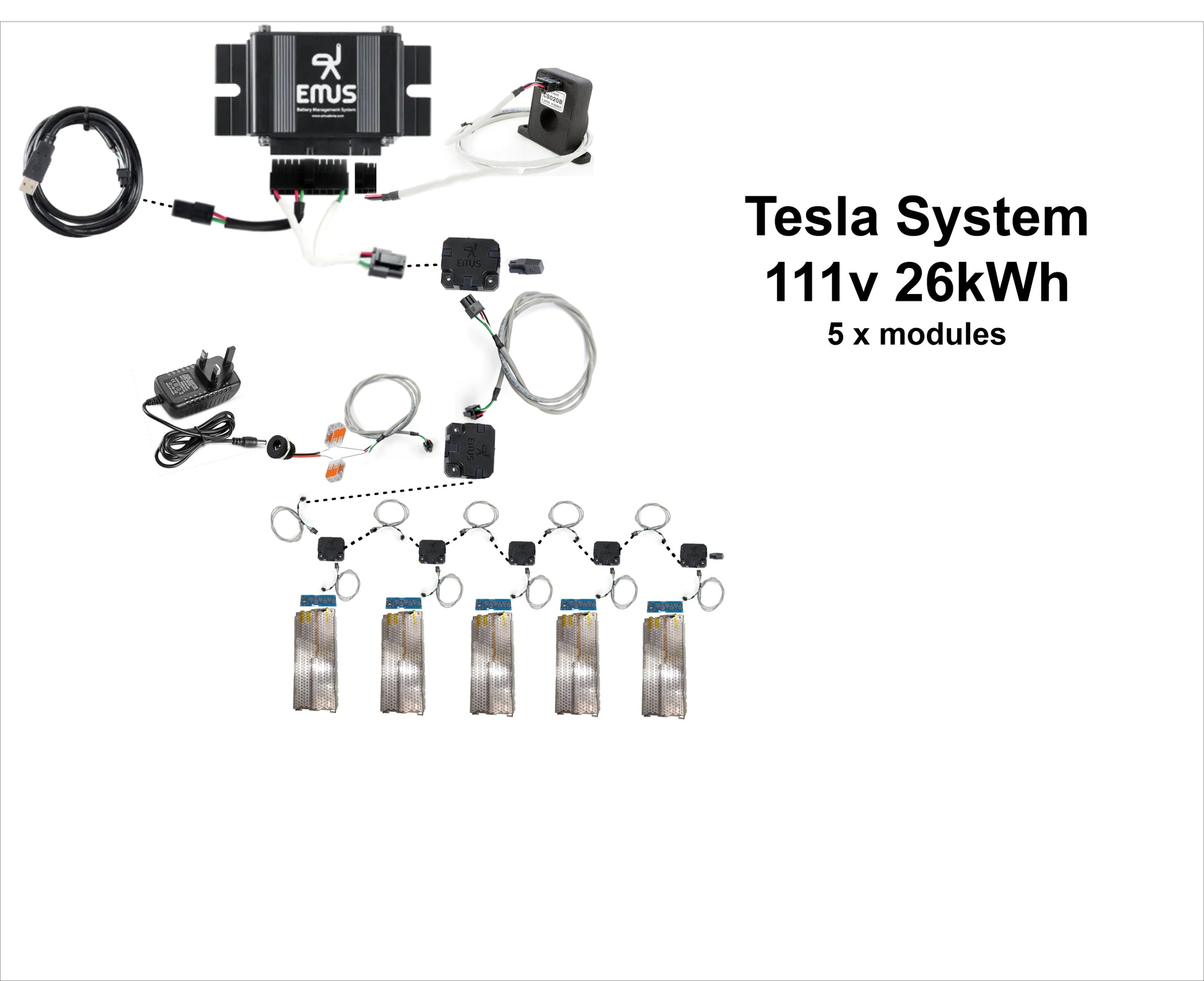

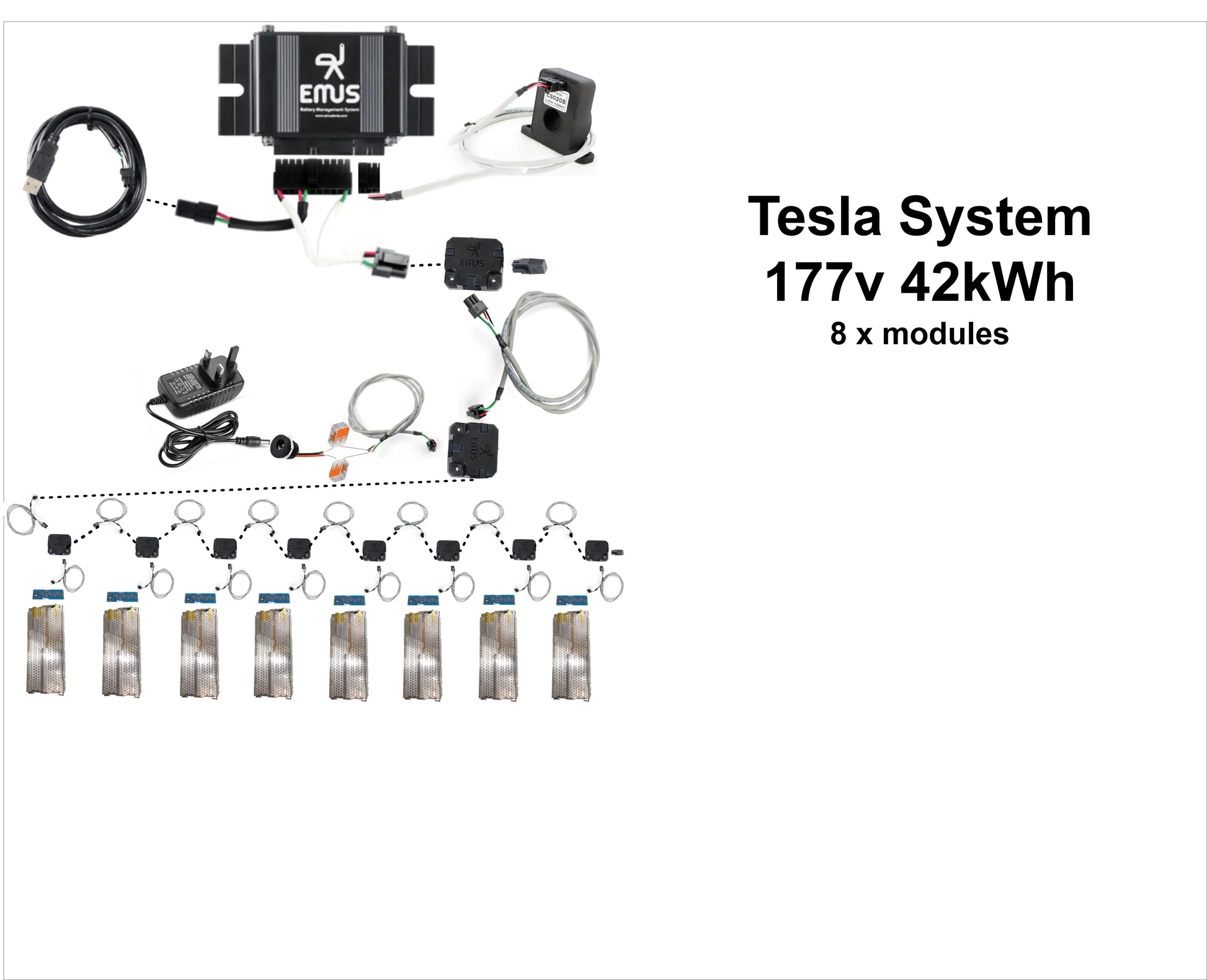

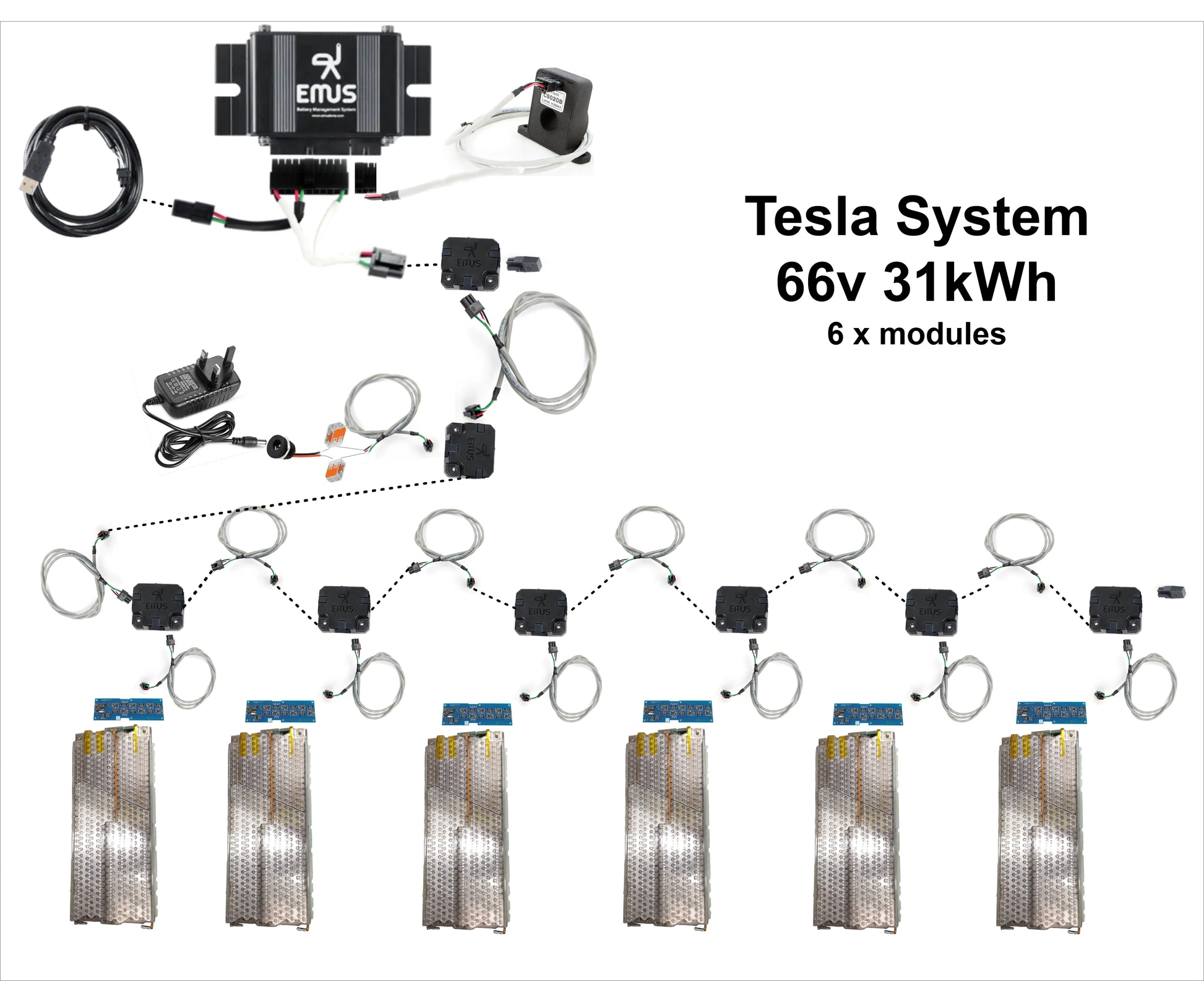

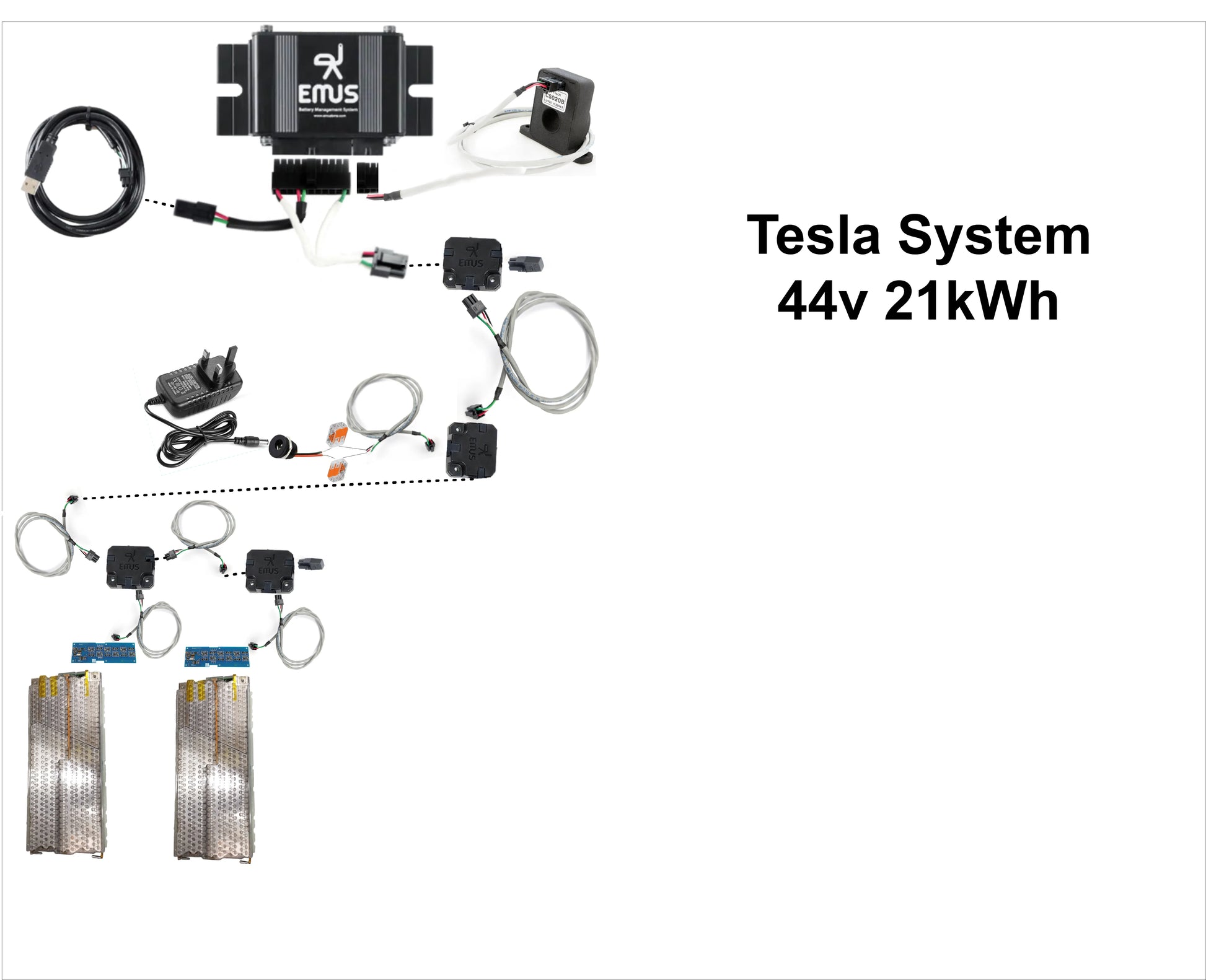

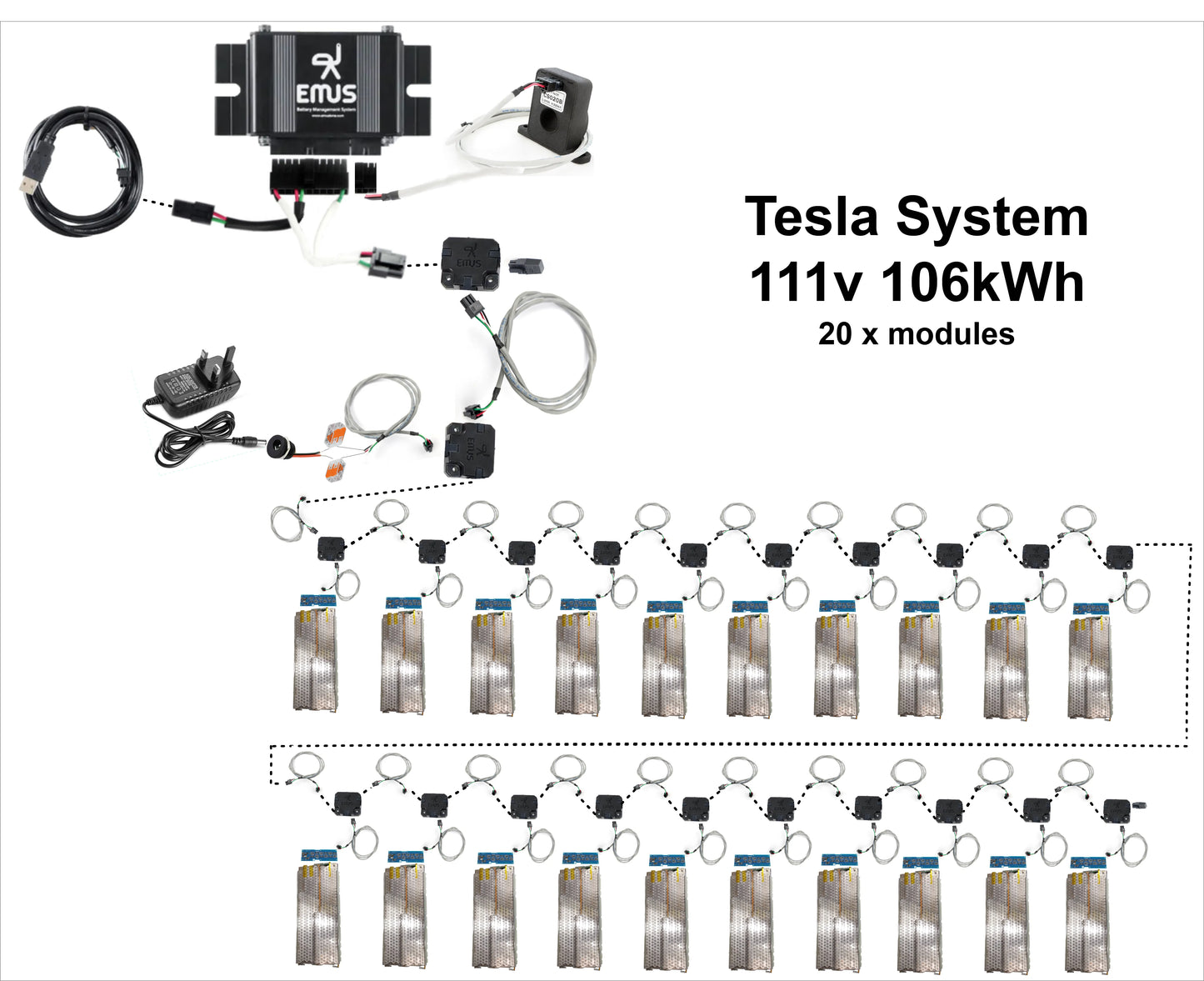

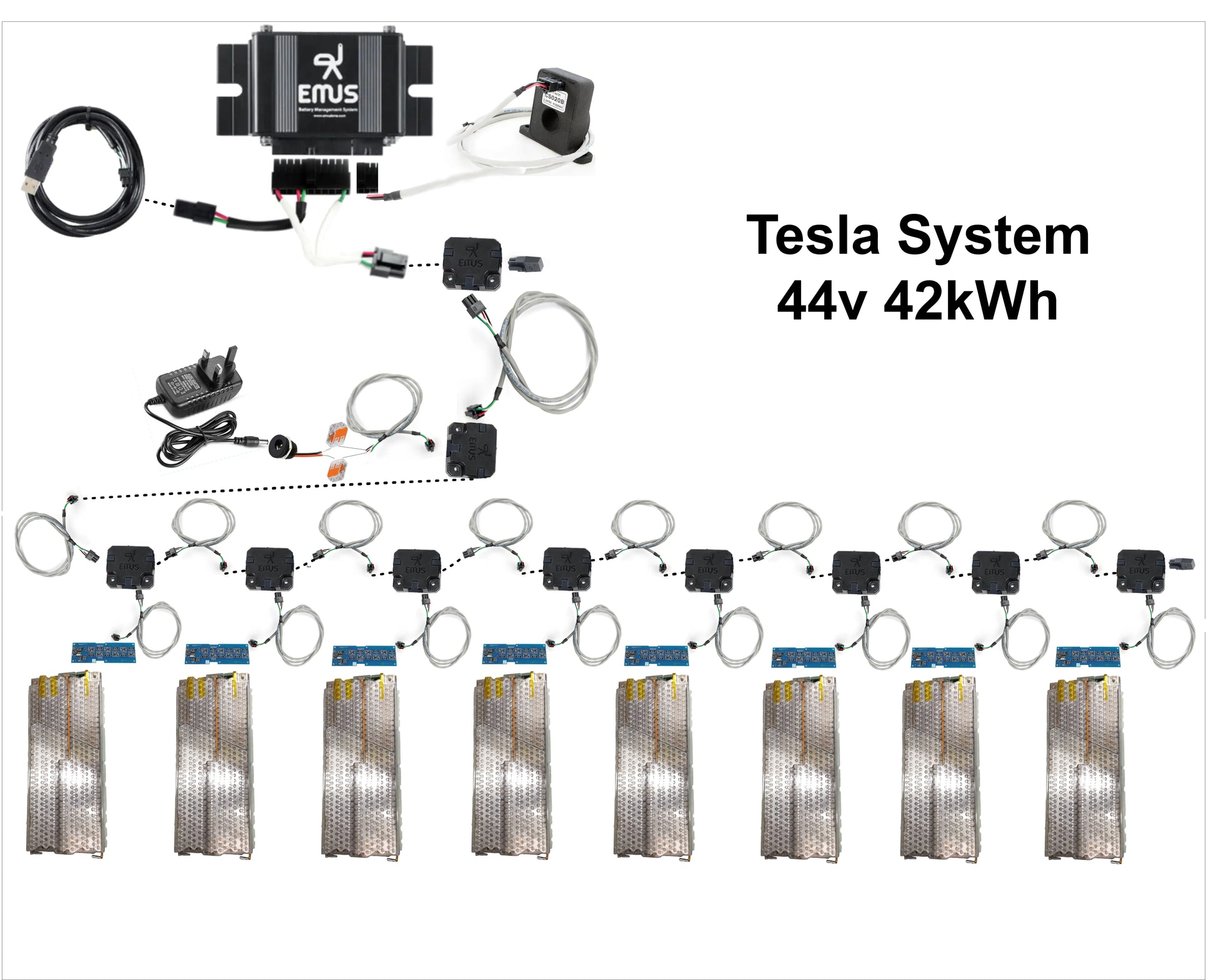

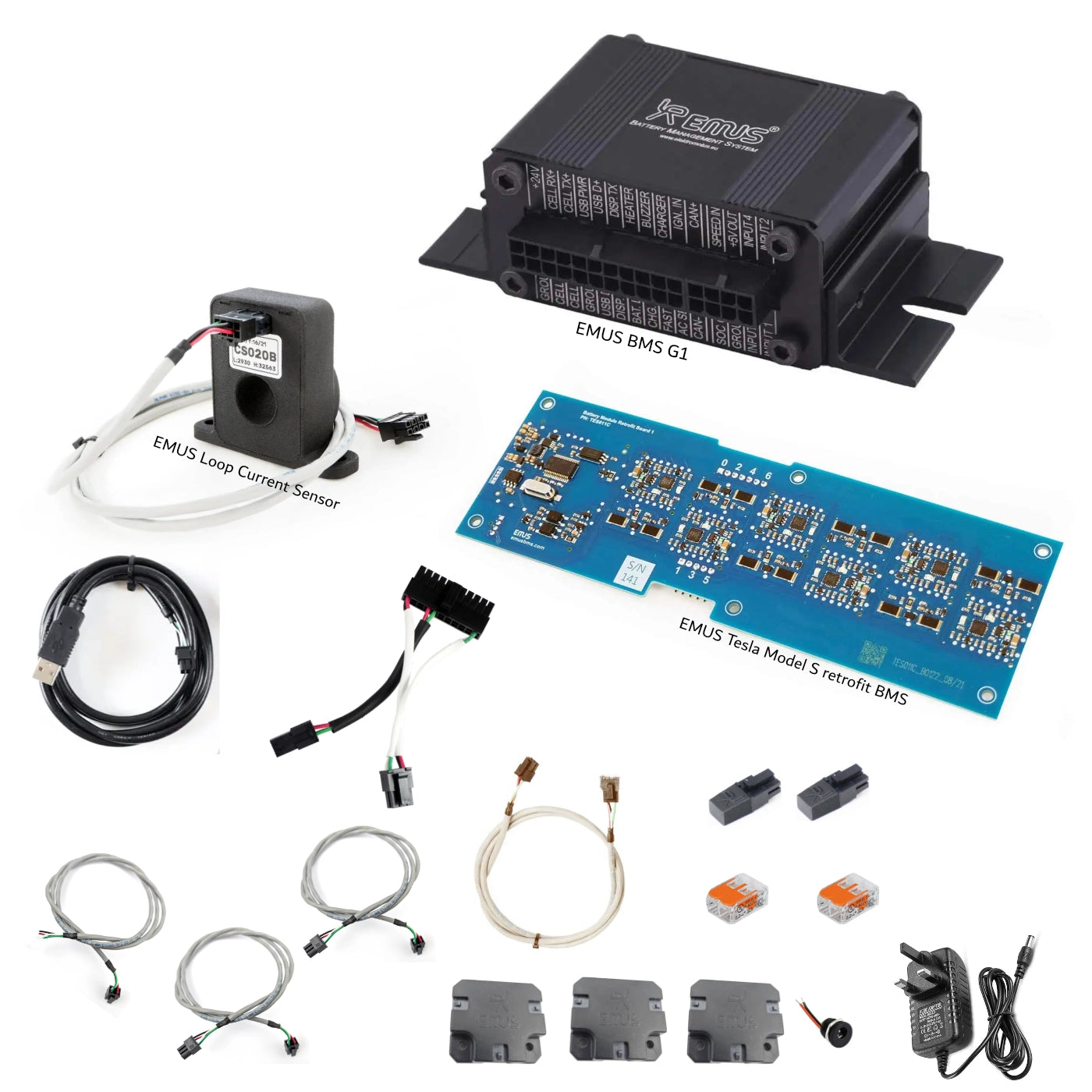

Included in Kit
EMUS G1 BMS + cables & plugs
Tesla PCB Model S retrofit BMS (breakout board) + cables & plugs
Current Sensor - Loop Style
CAN to CAN Cables 150cm
CAN 3 Way Connectors
CAN Terminators
BMS Power Supply
USB cable
Battery Module Details
Jaguar iPace Module Details
Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS Tesla Module Retrofit Board Datasheet
NOTE: Voltage and kWh above selection are all approximation and have been rounded DOWN to nearest whole number. Actual Nominal voltages are in table below:
Nominal Voltage | Voltage Min | Voltage Max |
22.2 | 16.8 | 25.2 |
44.4 | 33.6 | 50.4 |
66.6 | 50.4 | 75.6 |
88.8 | 67.2 | 100.8 |
111 | 84 | 126 |
133.2 | 100.8 | 151.2 |
155.4 | 117.6 | 176.4 |
177.6 | 134.4 | 201.6 |
