EMUS Bluetooth adapter for G1 system
Choose Quantity :
Product Information
Product Details

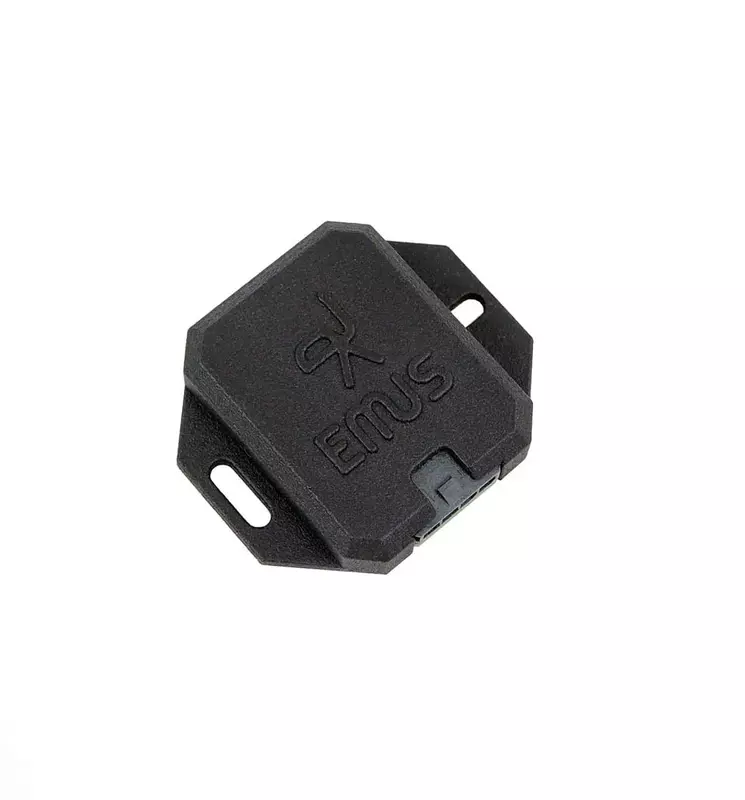

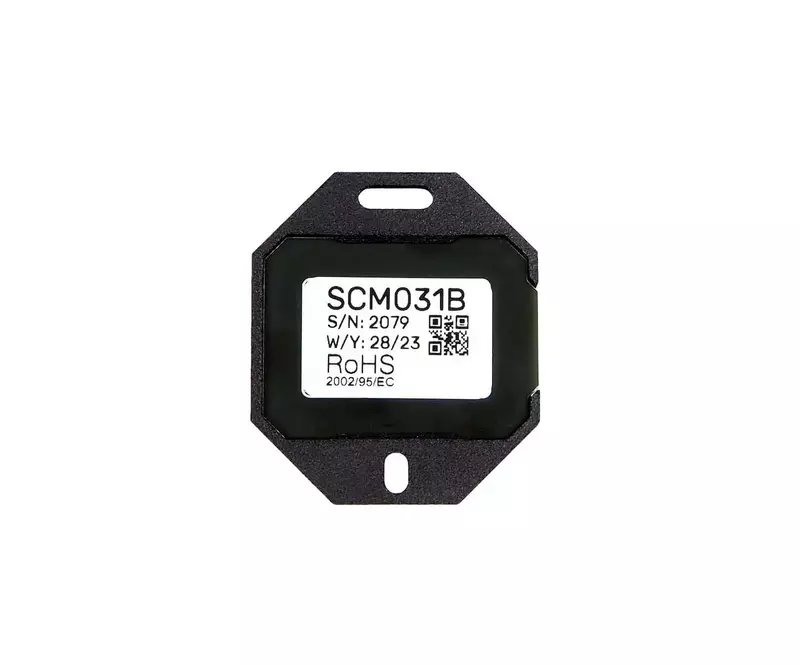

Emus BMS Smartphone Connectivity Module is low energy adapter that allows to wirelessly monitor various battery parameters in real time on any Android and iOS device using Emus EVGUI app, or any PC running Windows operating system, using the usb dongle. The Smartphone Connectivity Module connects to the main controller using RS232 interface. A compatible EMUS EVGUI App is available on Google Play and App Store in Apps downloads section. View Datasheet
EMUS Bluetooth Adapter Specifications
- Wireless connectivity: Smartphone compatible
- Range: 15m
- Operating voltage: 9.0V – 32.0V
- Operating temp.: -40°C to +80°C
- Dimensions: 44.4 x 38.2 x 9.45 mm
- Wire length: 1.5m
- Mounting holes: M3.5
- Additional capabilities:
- Shows BMS serial number during module discovery for easier identification
- Customizable discovery name.
- Allows to change PIN code.
- Module configuration locking.
Supported devices:
- Android 4.4 or later.
- All Windows OS versions with BLED112 USB dongle.
More Details Visit EMUS page here
