EMUS G1 BMS & VW MEB Slaveboard Kit
Select below how many EMUS slaveboard kits you need for your setup: (6 to 16 cells per slaveboard)
Price Excluding VAT
Select Slaveboard CCGM Kits:
Choose Quantity :
Product Information
Product Details
This EMUS BMS Kit includes everything you need to operate Any Generic Lithium battery. With this kit, you will be able to connect from 6 to 16 cells per slaveboard kit. If you need to connect more than 9 slave boards (contact us) each G1 system can support up to 24 CCGM slaveboards. For larger systems multiple G1 controls units can be setup in one system. Just contact us for pricing.

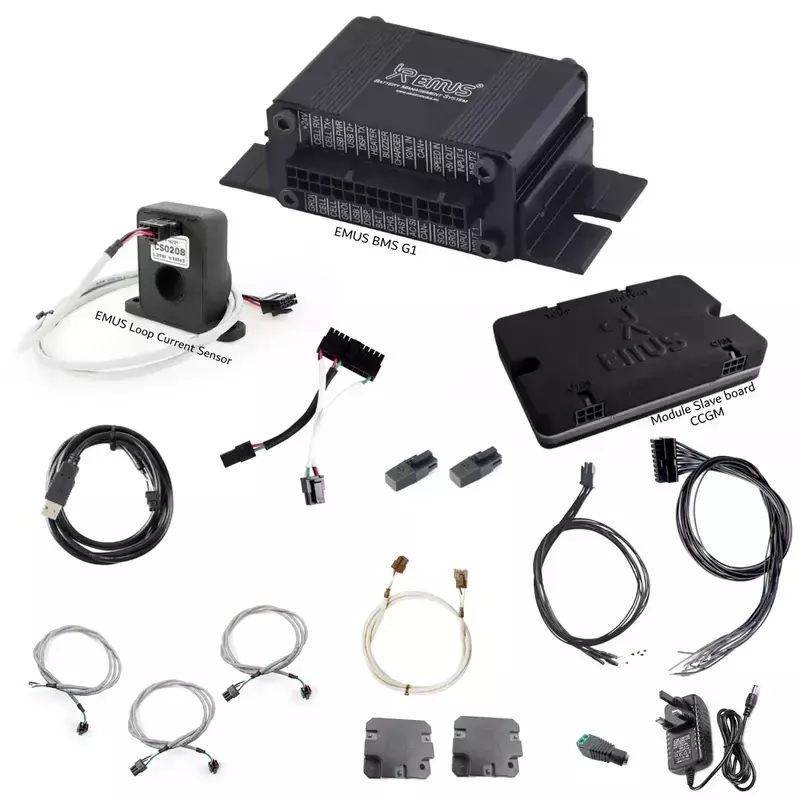

Included in base EMUS G1 BMS Kit:

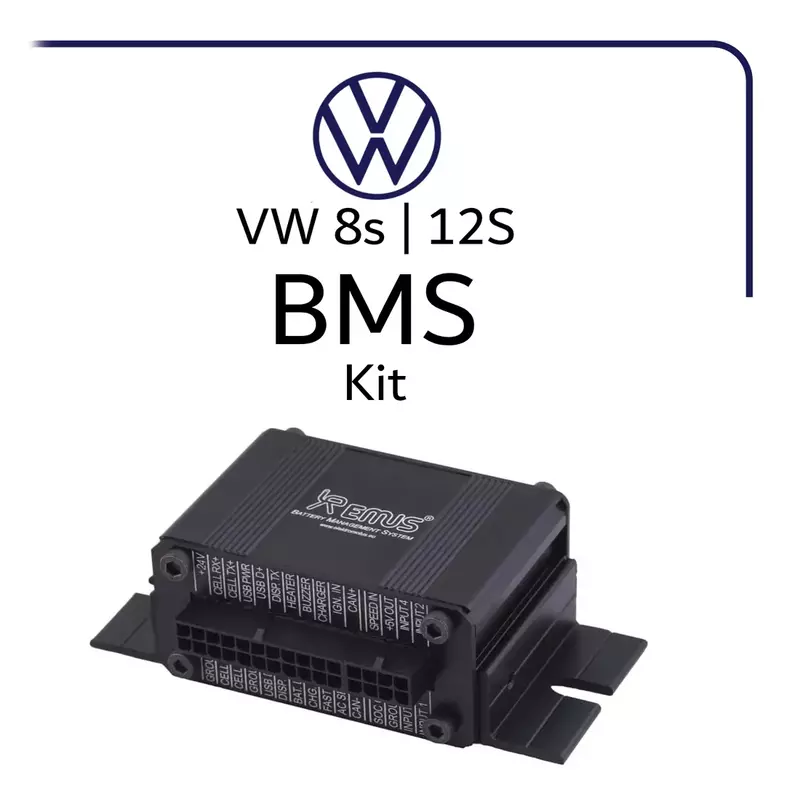

1 x EMUS G1 BMS Control Unit (CU021F) - Manual

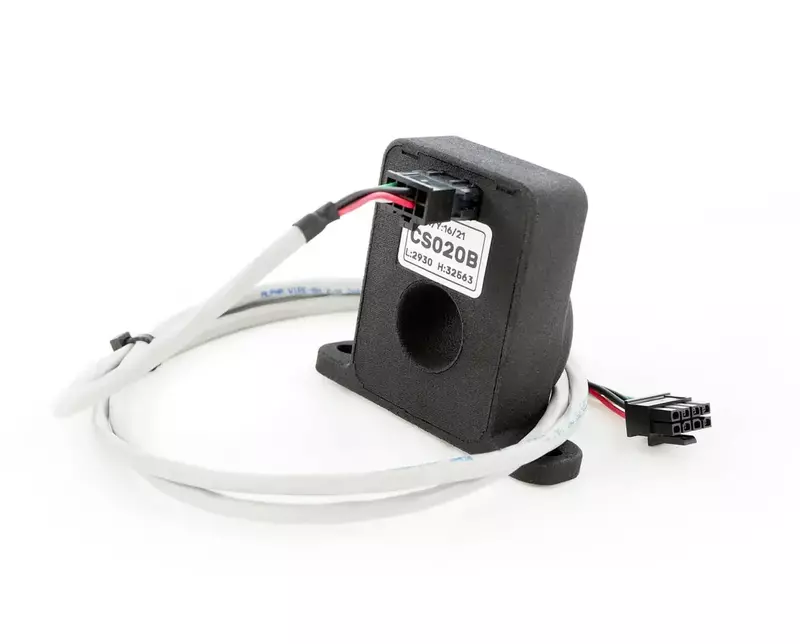

1 x EMUS G1 Loop Current Sensor with cable (CS020B+C_150) - Datasheet
1 x EMUS USB cable 150cm (USB02)
1 x EMUS USB Power over CAN cable 70mm (UPC01)
1 x EMUS Power to CAN cable 100cm (PWR01-100)
1 x EMUS CAN cable, 50cm (CNC03-50)
2 x EMUS 3-Way CAN Connector (C3WC01A)
2 x EMUS CNT01 CAN Termination (CNT01)
1 x DC Barrel Power Connectors Plug
1 x 12V UK Power Supply AC/DC

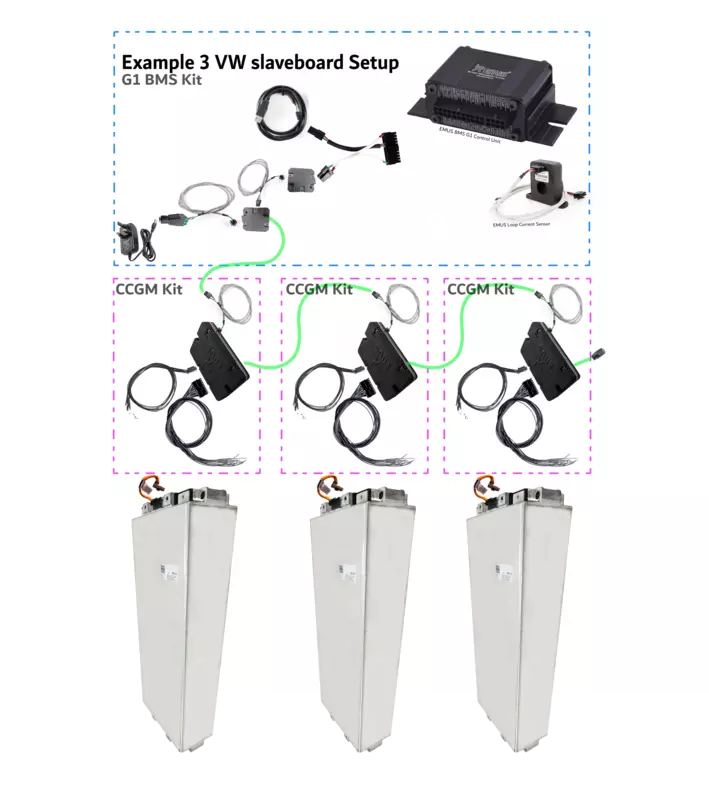

With each EMUS Slave (CCGM) kit you will get:
1 x EMUS G1 Centralized CAN Cell Group Module CCGM(CCGM023A) - Datasheet
1 x EMUS CAN cable, 50cm (CNC03-50)
1 x EMUS Temperature Sensors for CCGM 45cm (ETS05-45)
1 x EMUS Cells connection for CCGM 45cm (CH02-45)
Please note: This kit does not include any battery modules Only includes the BMS kit needed to control. Contact us if you also want battery modules too.
