EMUS G1 CCGM - 850V (024)

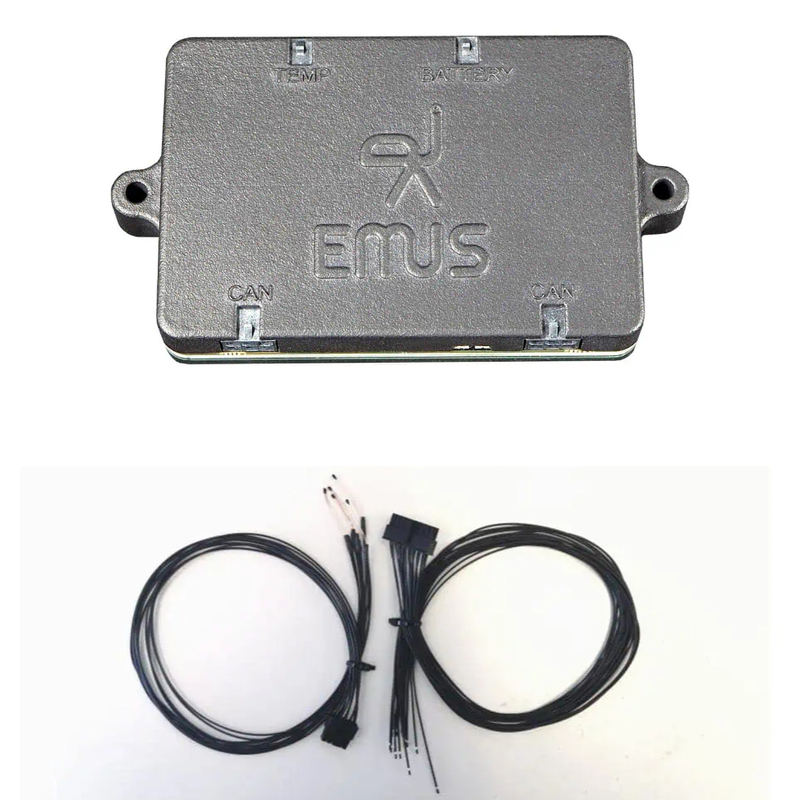

CCGM with quick start kit. EMUS Part Number: CCGM024B+Q
1x EMUS Centralized CAN Cell Group Module 024
1x ETS05-45 - 45cm temperature sensors
1x CH02-45 - 45cm cells connection kit
Choose Quantity :
Product Information
Product Details

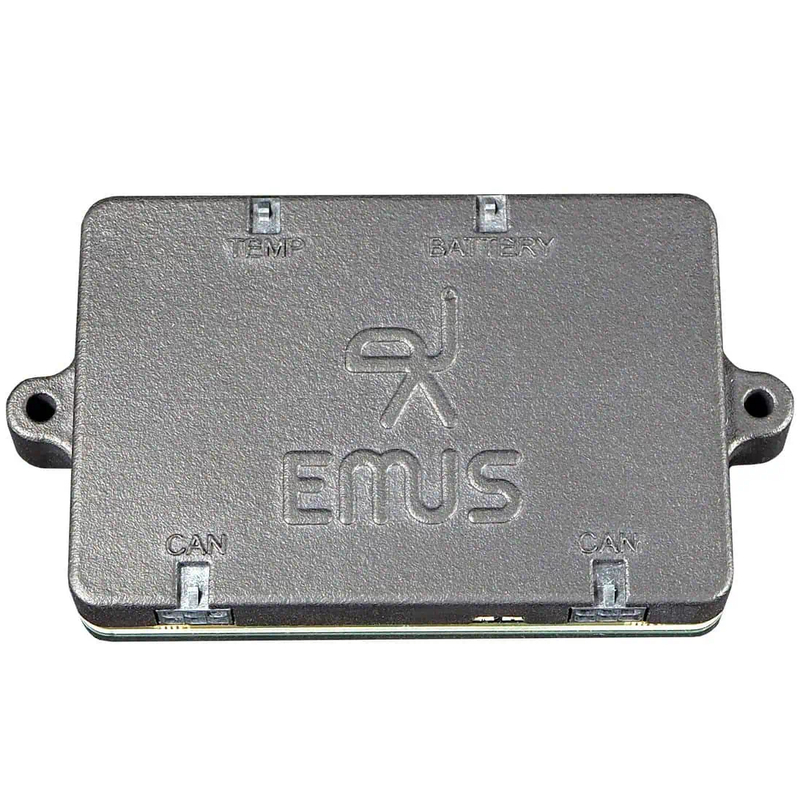

EMUS Centralized Cell Group Module (CCGM) is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors for easy BMS system assembly and integrated proprietary EMUS software allows data transfer within 100ms frequency. It also have 5 external temperature sensors to monitor ambient temperature.
Each CCGM is capable to manage from 6 up to 16 lithium cells and total 28 CCGM units can be connected in series, parallel or mixed topology. Meaning with one Control Unit client is capable to monitor up to 448 cells battery pack.

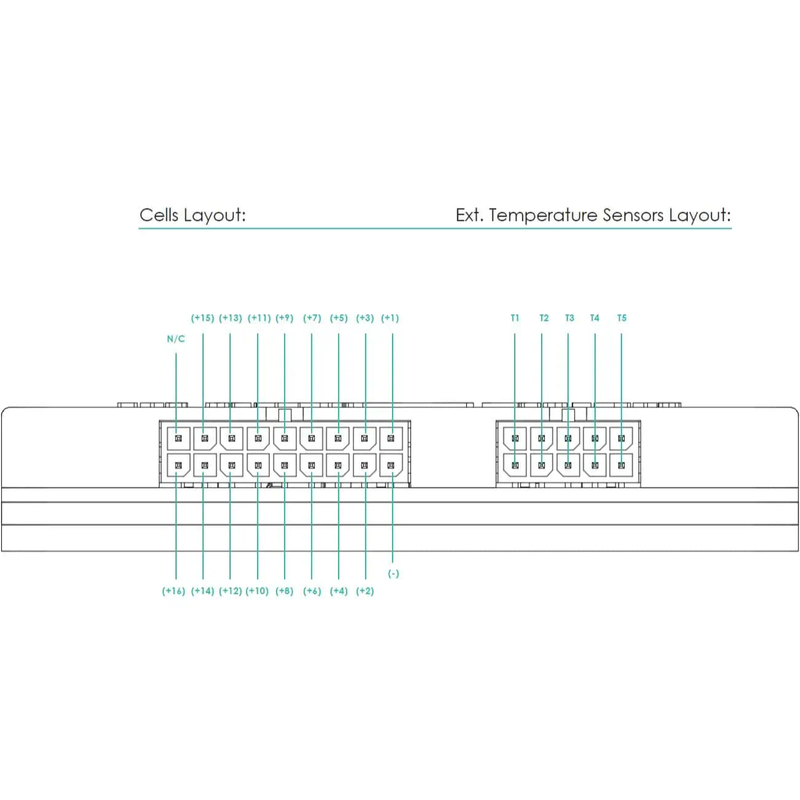

- Cell voltages measurement
- External 5 temperature sensors
- Balancing of the cells, 300 mA per each cell (PWM controllable)

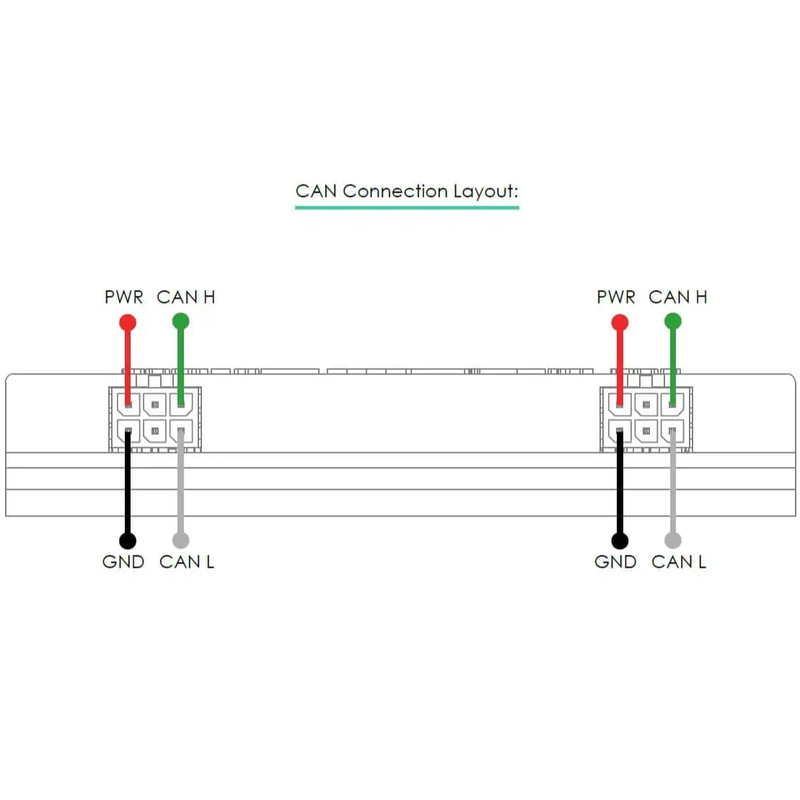

- 2 CAN connectors
Applications:
- Energy Storage Systems (ESS)
- E-mobility applications
- Mobile Energy Storage Systems
Specifications:
- Number of cells: 6 – 16
- Balancing current: 300mA (PWM controllable)
- Supply voltage: 12 – 67V
- Temperature sensors: 5x
- Two CAN connectors;
- Isolation between communication and battery side: 850V*
- Operating temperature: -40 to +80
- Dimensions: 110x61x17.7
- Communications bus: CAN
- Mounting holes: M4
* According to standard IEC 60664-1:2020. Direct contact between CCGM024B’s heatsink and conductive surface without potential might decrease isolation endurance under environmental conditions classified as Pollution level 2 or superior.
