Nissan Leaf Gen4 Module (USED) - 1.67kWh / 110Ah / 14V
From vehicle with <5000 Miles
Choose Quantity :
Product Information
Product Details

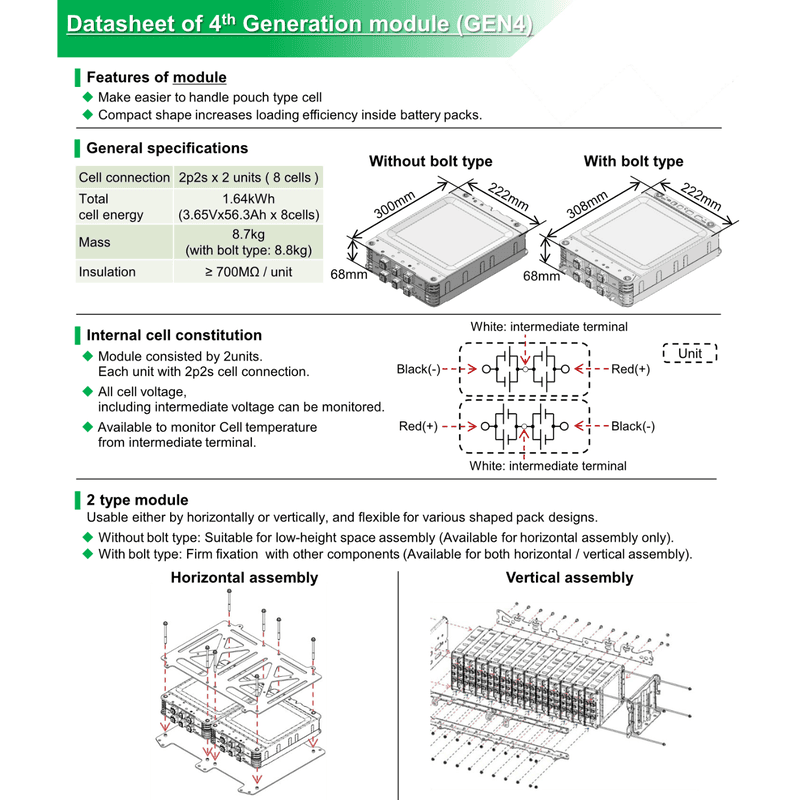

Specification for Nissan Leaf Gen 4 Module
Manufacturer Part Number: 295B9-5SH0A
Voltage Nominal: 14.8v (when connected together)
Voltage Min: 12v
Voltage Max: 16.6v
Capacity Ah: 110Ah
Capacity kWh: 1.64kWh
Configuration: 2p2s x 2 units (8 cells)
Mass 8.7kg
Dimensions for Nissan Leaf Gen4 Module
Length: 308mm
Width: 222mm
Height: 68mm
Other Details for Nissan Leaf Gen4 Module
From vehicle with <5000 Miles
Maximum Discharge Current: 300A
Nominal Voltage per cell: 3.80V
Operating Voltage Range per cell: 2.50V-4.20V
Recommended Operating Voltage Range per cell: 3.00V-4.15V
Modules will be tested with our Deutronic dbl1200hv-60 & other diagnostic and conditioning system workshop tools using the Manufacture pre defined high and low voltages of this module.
International Shipping NOT AVAILABLE
