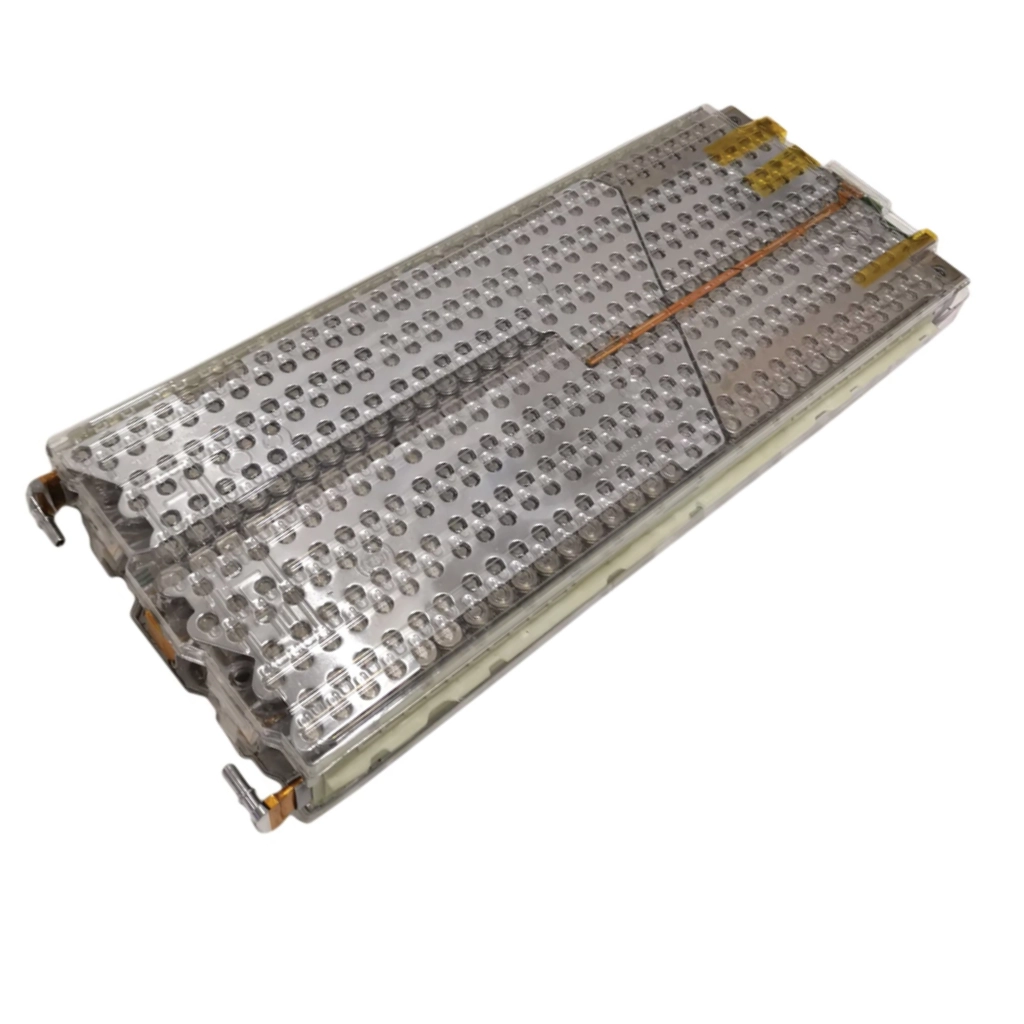

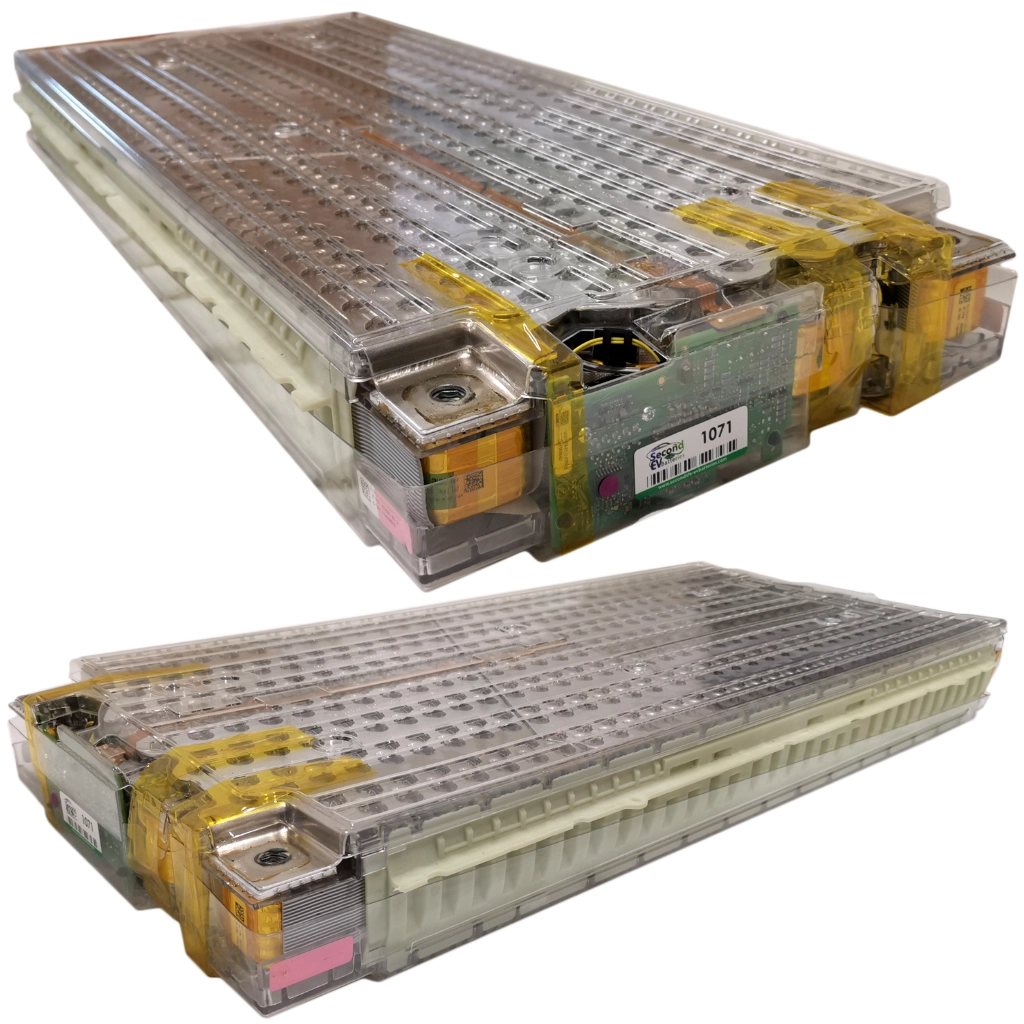

Tesla Model S/X Module - 5.3kWh / 232Ah / 22.8V
Product Details
Specifications for Tesla Model S/X Module
Manufacturer Part Number: 1047031-00
Voltage Nominal: 22.8v
Voltage Min: 18v
Voltage Max: 25.2v
Capacity Ah: 232Ah
Capacity kWh: 5.3kWh
Configuration: 6s74p

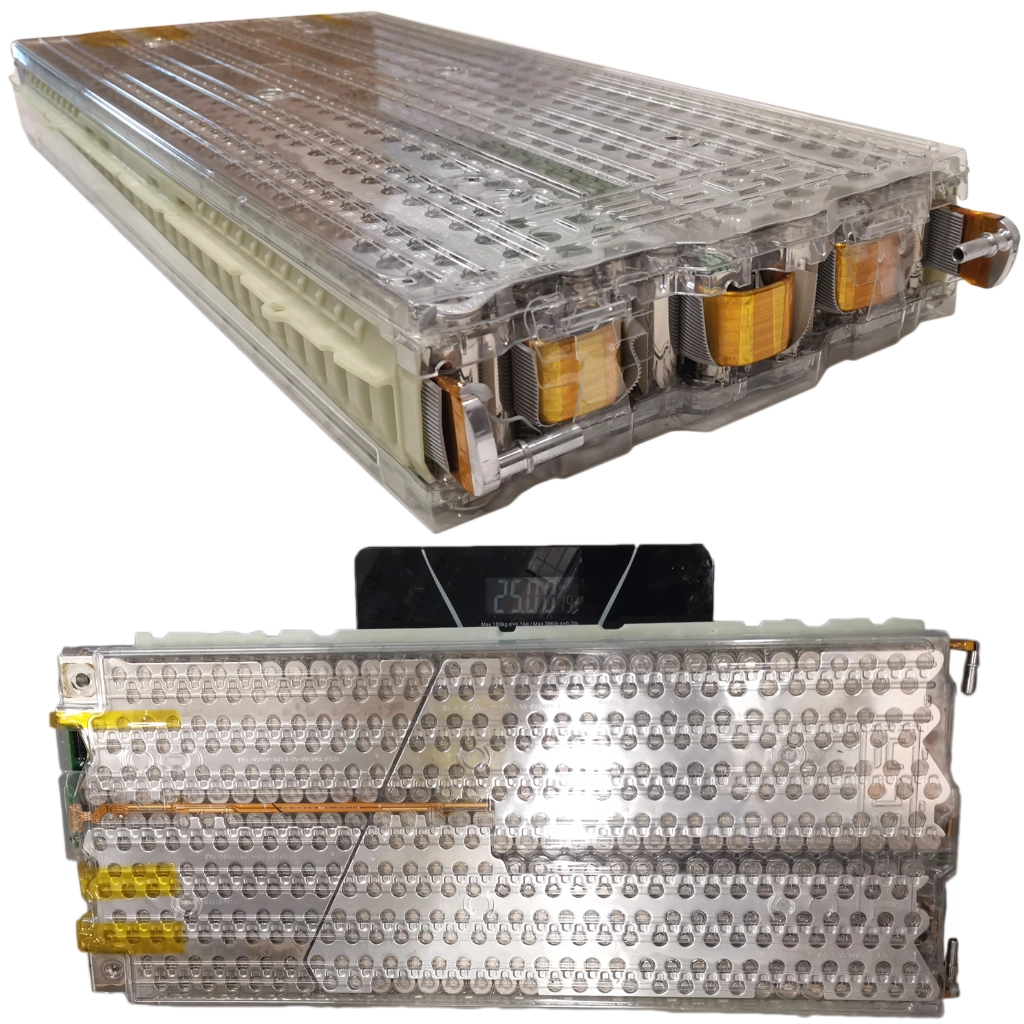

Mass: 25kg
Voltage Max: 25.2v
Capacity Ah: 232Ah
Capacity kWh: 5.3kWh
Configuration: 6s74p
Mass: 25kg
Dimensions for Tesla Model S/X Module
Width: 300mm
Height: 75mm
Other Details for Tesla Model S/X Module
Bolt Size: M8
Cell Type: Tesla Custom Panasonic 18650 (45g)
Configuration: 74p6s (444 total 18650 cells)
Discharge Current (3s): 1500A
Discharge Current (10s): 1000A
Discharge Current (Continuous): 225A
Charging Current (Max): 225A
Discharge Temp Range: -20C - 60C
Charging Temp Range: 0 - 45C
Storage Temp Range: -20C - 50C
Need a BMS? View the EMUS Tesla BMS HERE
(Note: Do contact us if you want BMS as this kit only has cables for 1 x module).

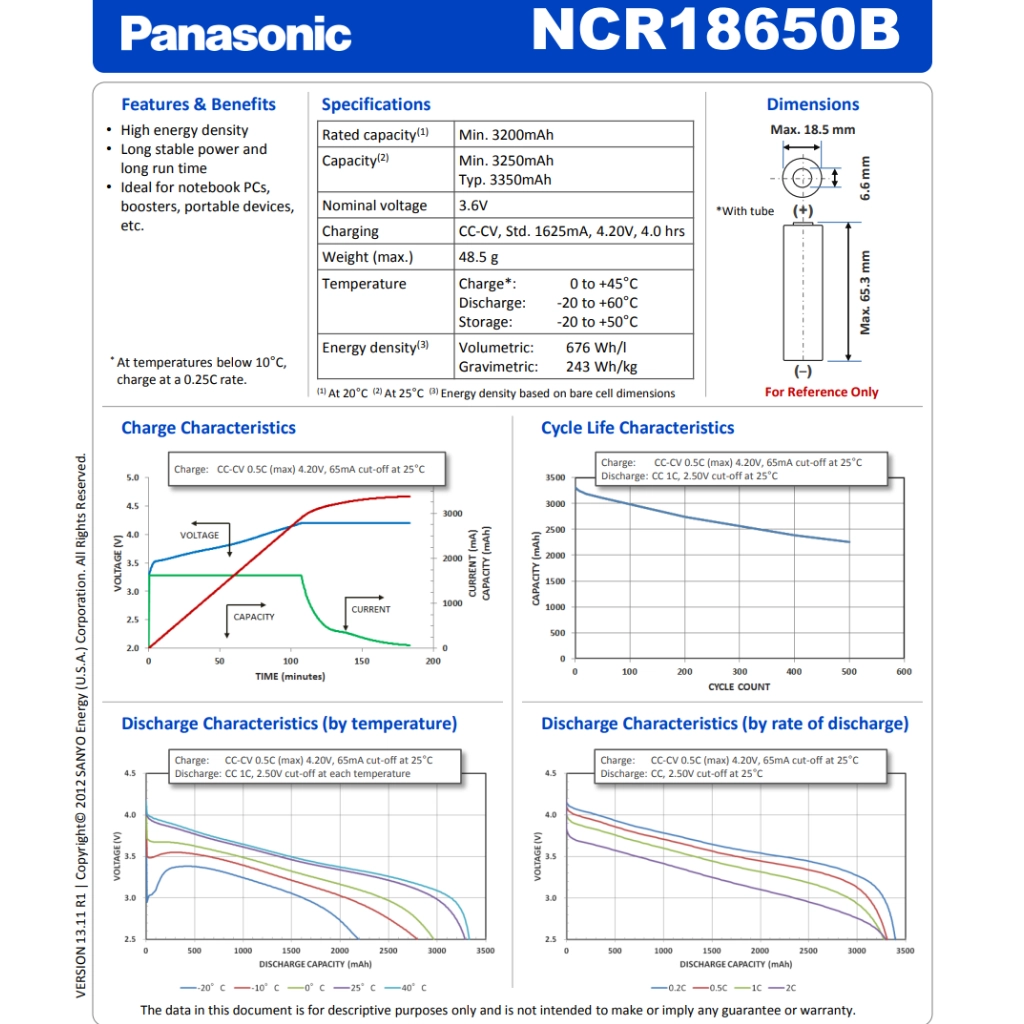

Based around 444 Panasonic NCR18650B cells running in 74p6s configuration. Each module runs at 22.8V nominal and charge to 25.2V max. They can do 225 amps continuous output and up to 1500 amps max for 3 seconds. Total energy storage is 5.3 kWh. These packs are ideal for 24V, 48V, 72V, 96V, 120V, 144V, and 400V EV systems. These modules also work for home energy storage and RV applications.
Modules have all been tested with one of our capacity tools such as our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module or an iCharger. Read more
