Second Life EV Batteries Ltd

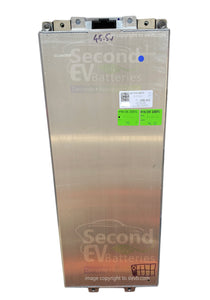

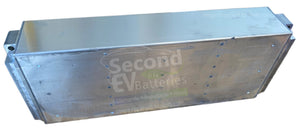

VW ID Module 12S - 6.85kWh / 156Ah / 44V

VW ID Module 12S - 6.85kWh / 156Ah / 44V

excluding VAT

Regular price £895.00 GBP
Regular price £999.00 GBP Sale price £895.00 GBP
Sale Sold out
Shipping & tax calculated at checkout.

International Shipping NOT available

VW ID 12S Modules
Original Capacity: 6850Wh
Nominal voltage: 44.4V
Configuration: 12S2P
228 Wh per kg
469 kWh per cubic meter

VW ID Module Lithium-ion Battery

What's included VW ID 12S Module

With this purchase you with receive:

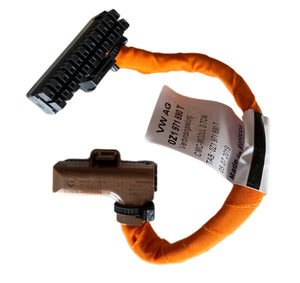

1 x VW ID 12S Module with cable tail.

VW ID3 / VW ID4 Module Specification

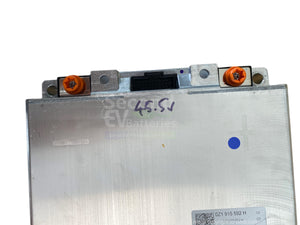

Part no. 0Z1915 592 H
Ah Capacity: 156
Nominal voltage 44.4V
Cell Capacity per battery: 78 Ah
Cells in a complete Module: 24
Module Circuitry:  12 in series, 2 in parallel (12s2p)
Module Capacity: 156 Ah
Length 590mm
Width 225mm
Height 110mm
Mass 32kg
Bolt Size M6

Balancing current of the VW ID modules is very low. They only use around 100 mA of passive cell balancing. Higher currents could damage the cell tap wires in the modules or blow the internal fuse.

Charge voltage cut-off:
                 Cell = 4.15V
                 Module = 50.V
Discharging cut-off:
                 Cell = 3.3V
                 Module = 39.6v
Maximum Discharging Current (10 sec.): 800 Amps

International Shipping NOT AVAILABLE
