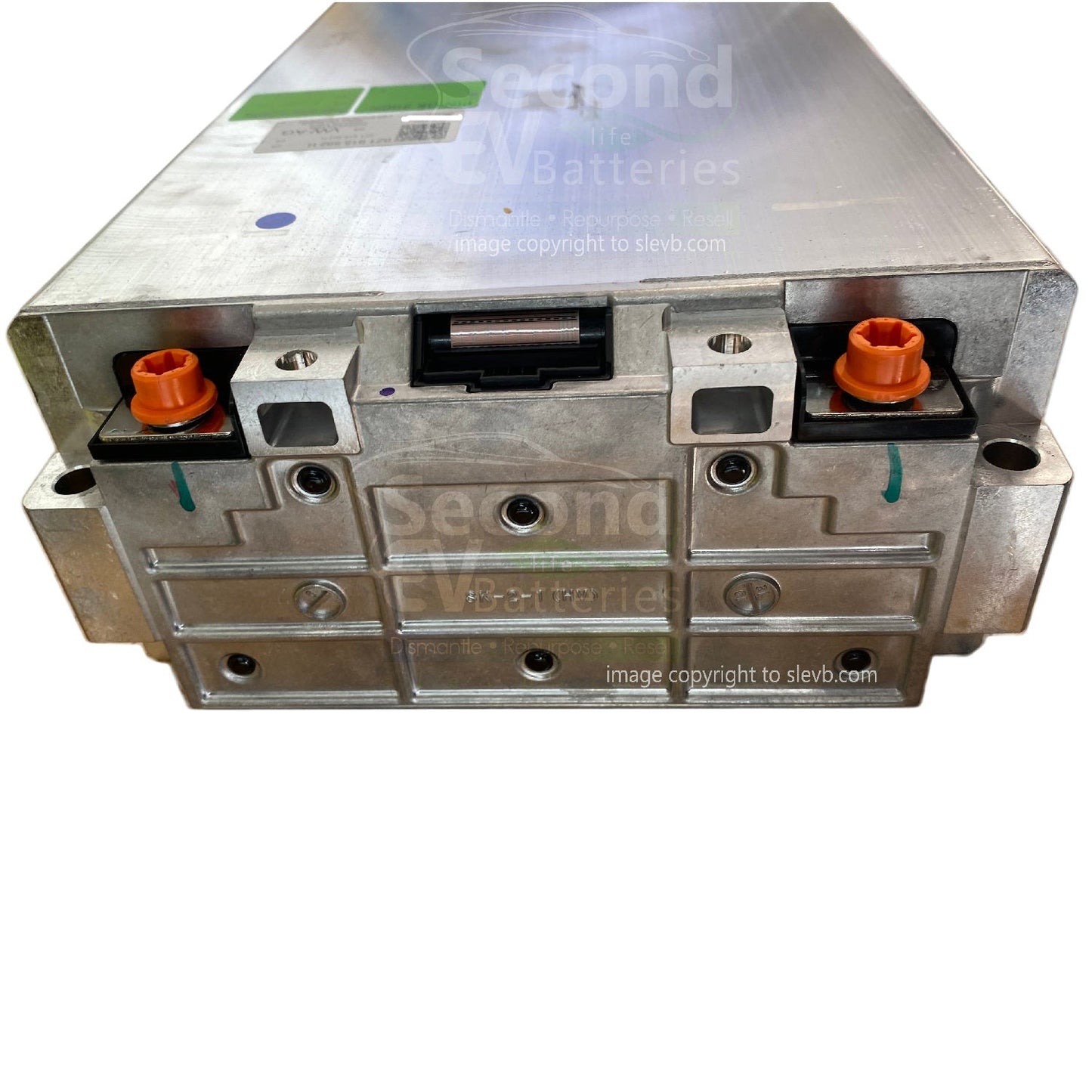

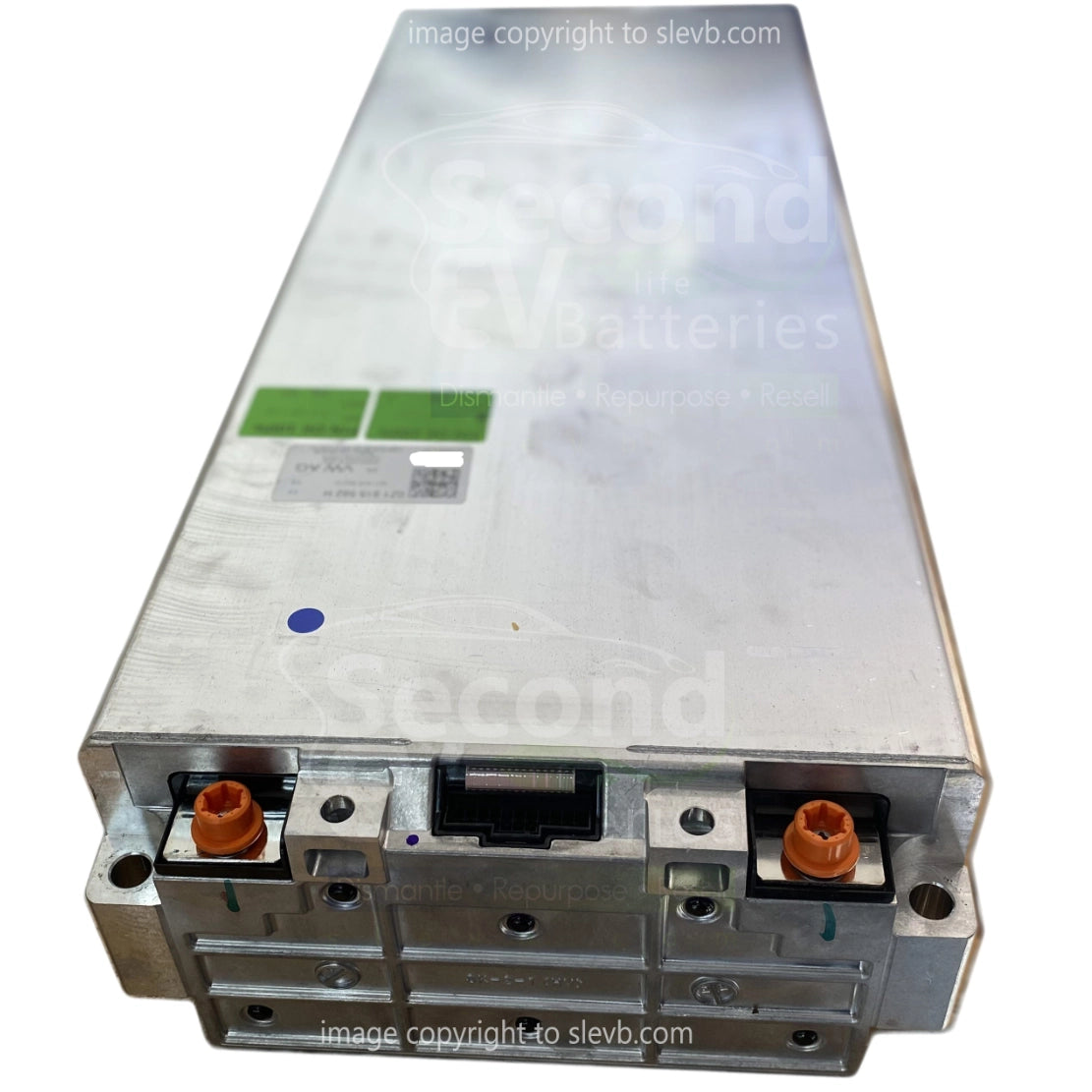

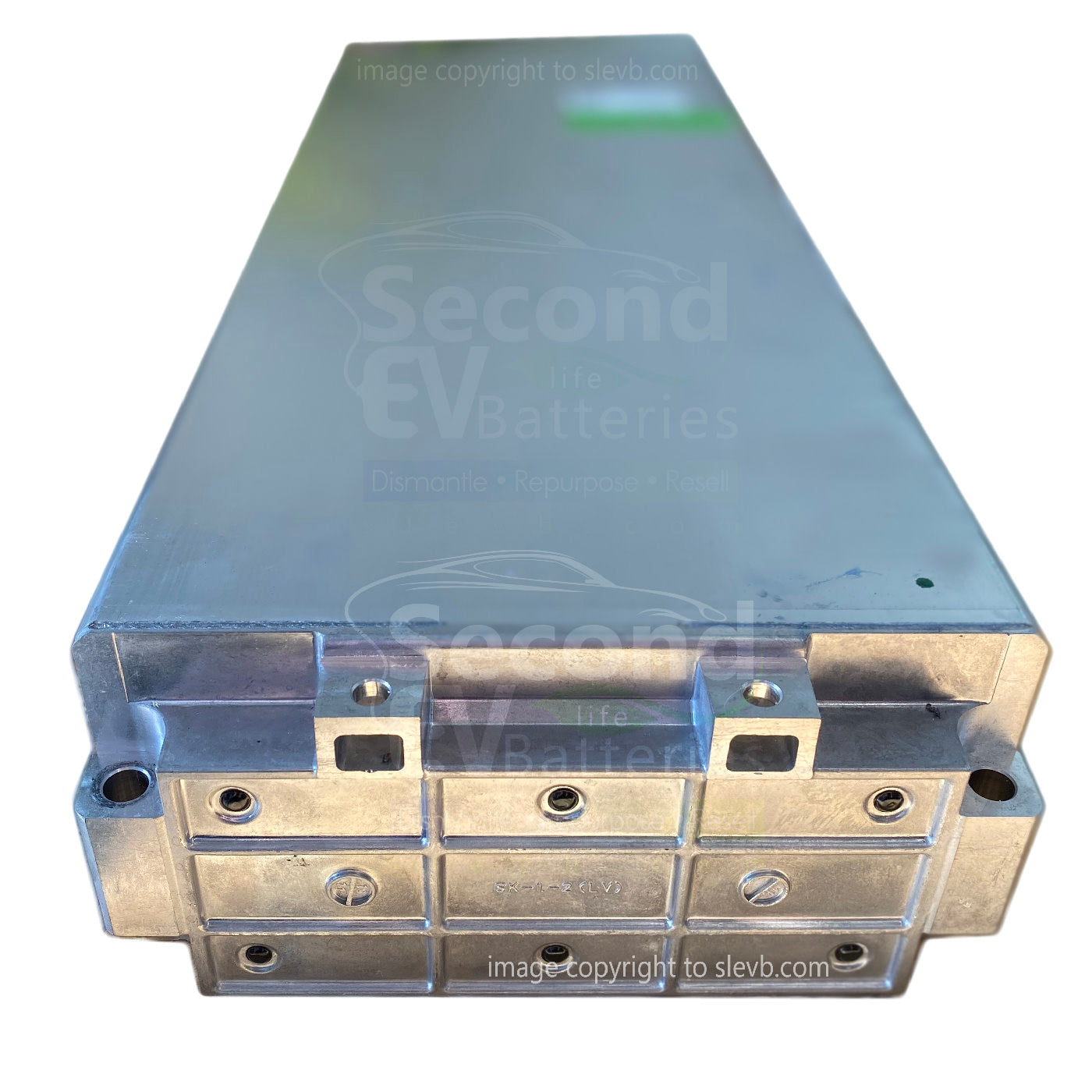

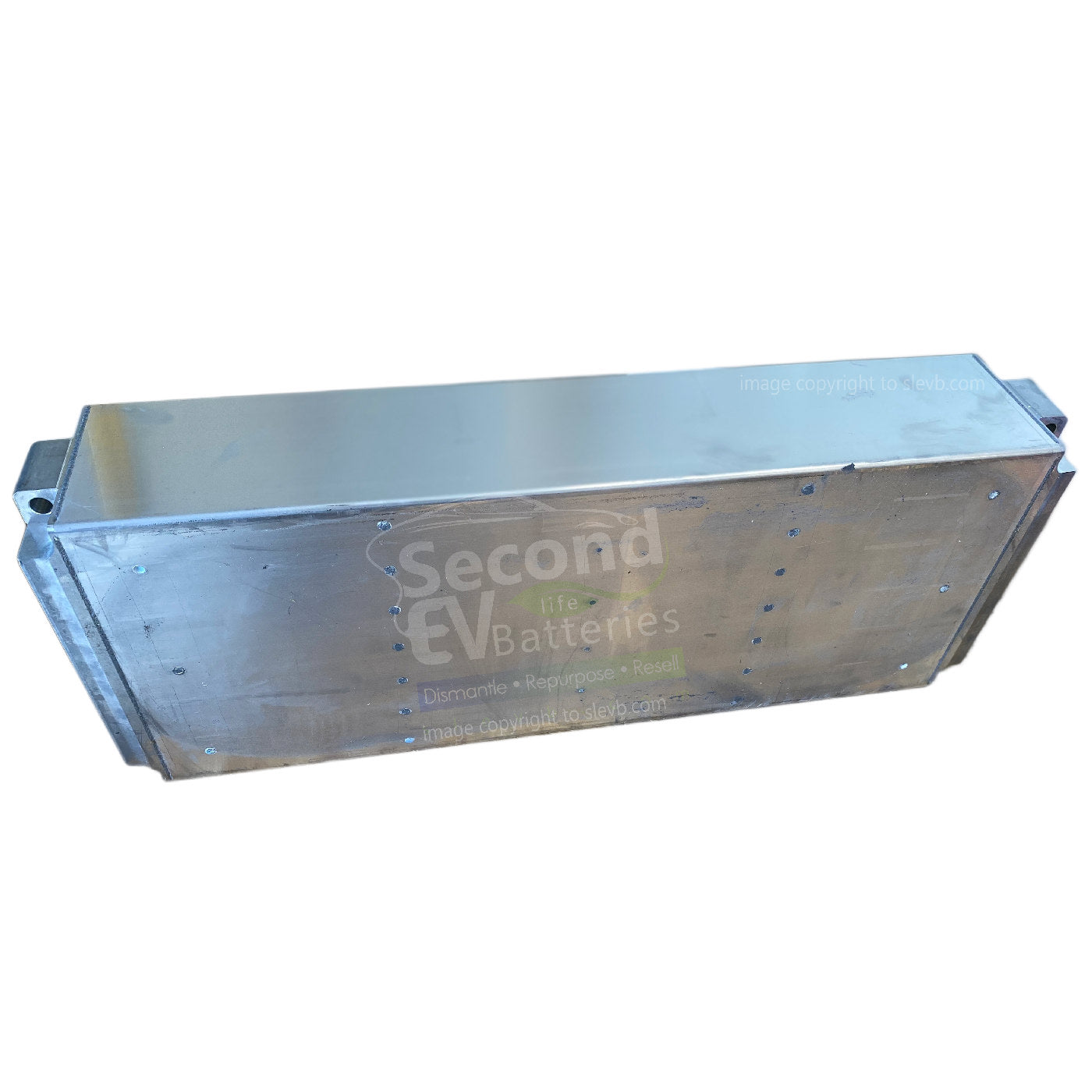

VW ID Module 8S - 6.85kWh / 234Ah / 29.6V

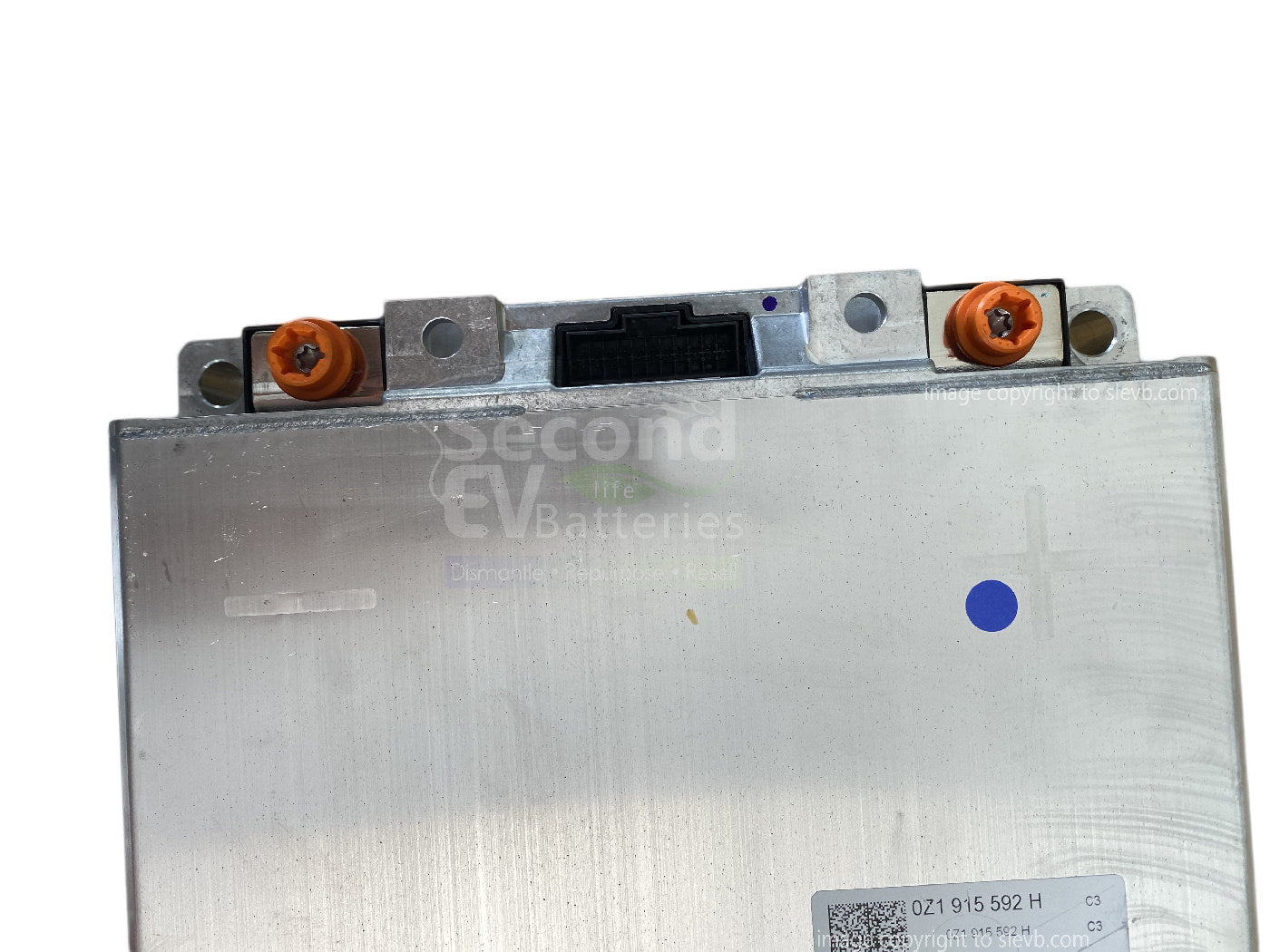

Manufacturer Part Number: 0Z1915 599 H
Ah Capacity: 234
Type Pouch Cell NCM 712
LG Chem E78 (MEB)
Cell Capacity per battery: 78 Ah
Cells in a complete Module: 24

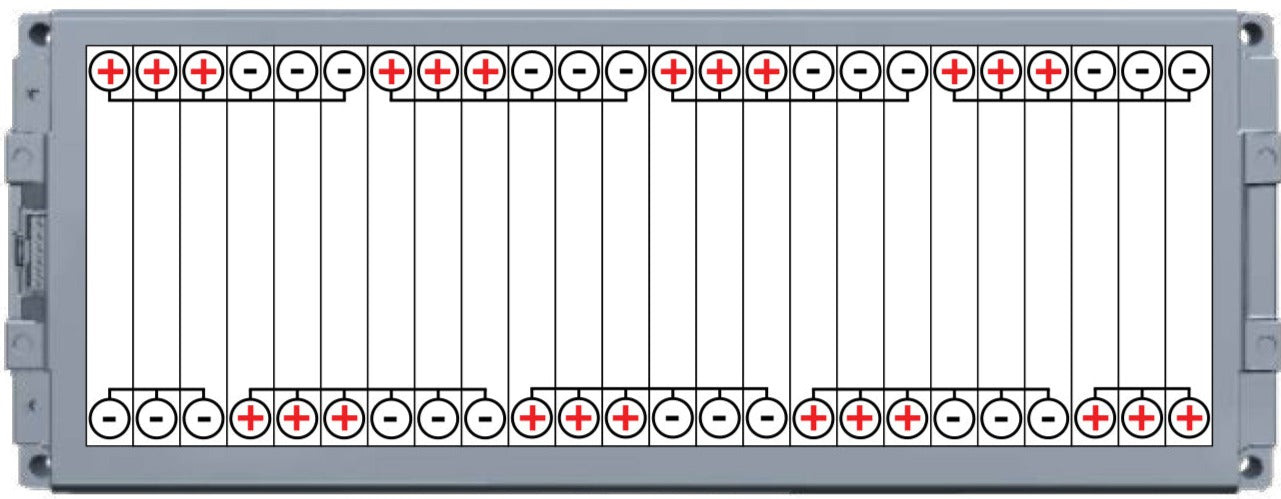

Module Circuitry: 8 in series, 3 in parallel (8s3p)
Module Capacity: 234 Ah
Length 590mm
Width 225mm
Height 110mm
Mass 32kg
Bolt Size M6

Balancing current of the VW ID modules is low. They only use around 100 mA of passive cell balancing. Higher balancing current could damage the cell tap wires in the modules or blow the internal fuse. Keep this in mind when selecting your BMS

Charge voltage cut-off:
                 Cell = 4.15V
                 Module = 33.6V
Discharging cut-off:
                 Cell = 3.3V
                 Module = 24.2v
Maximum Discharging Current (10 sec.): 1000 Amps

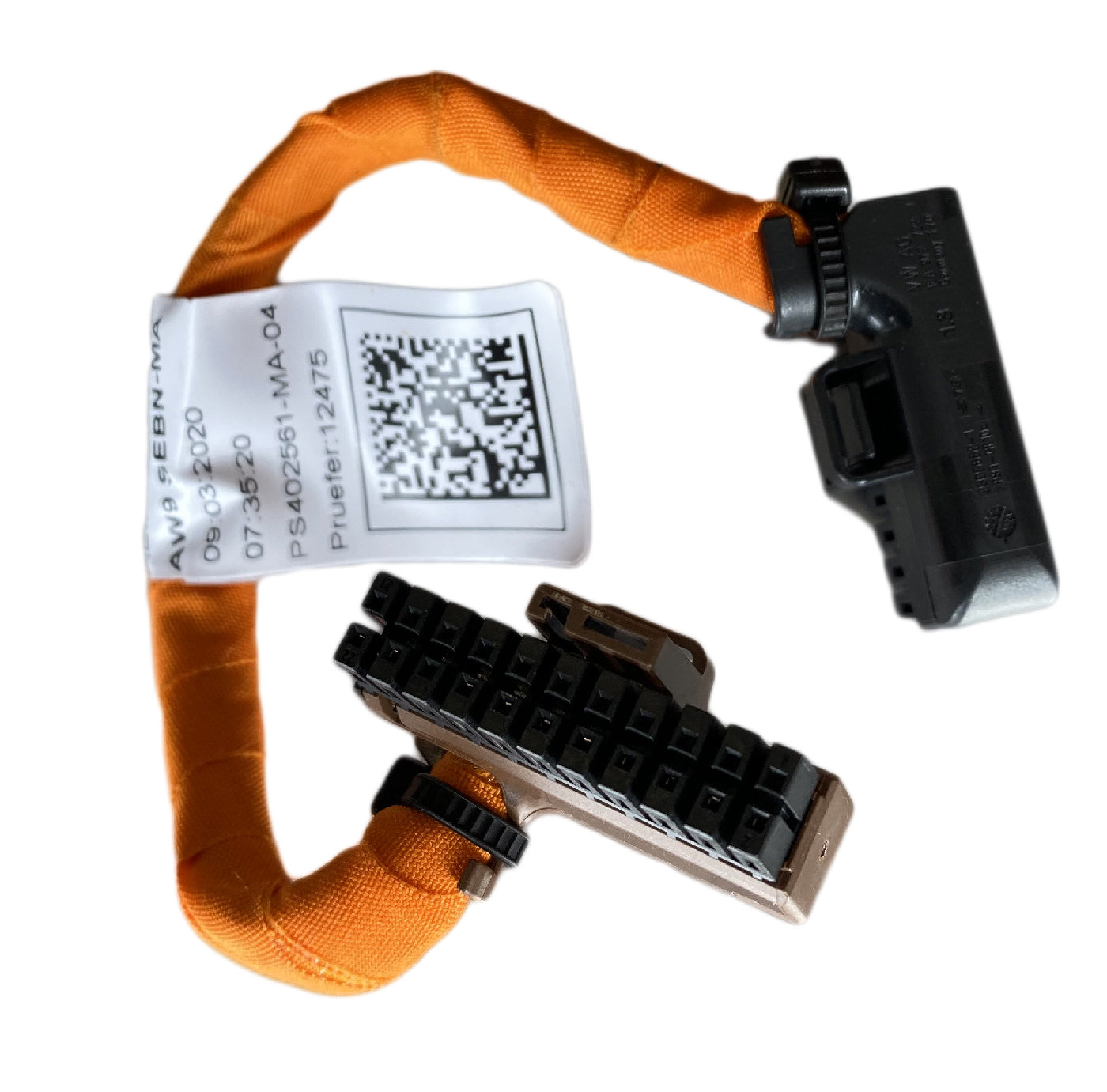

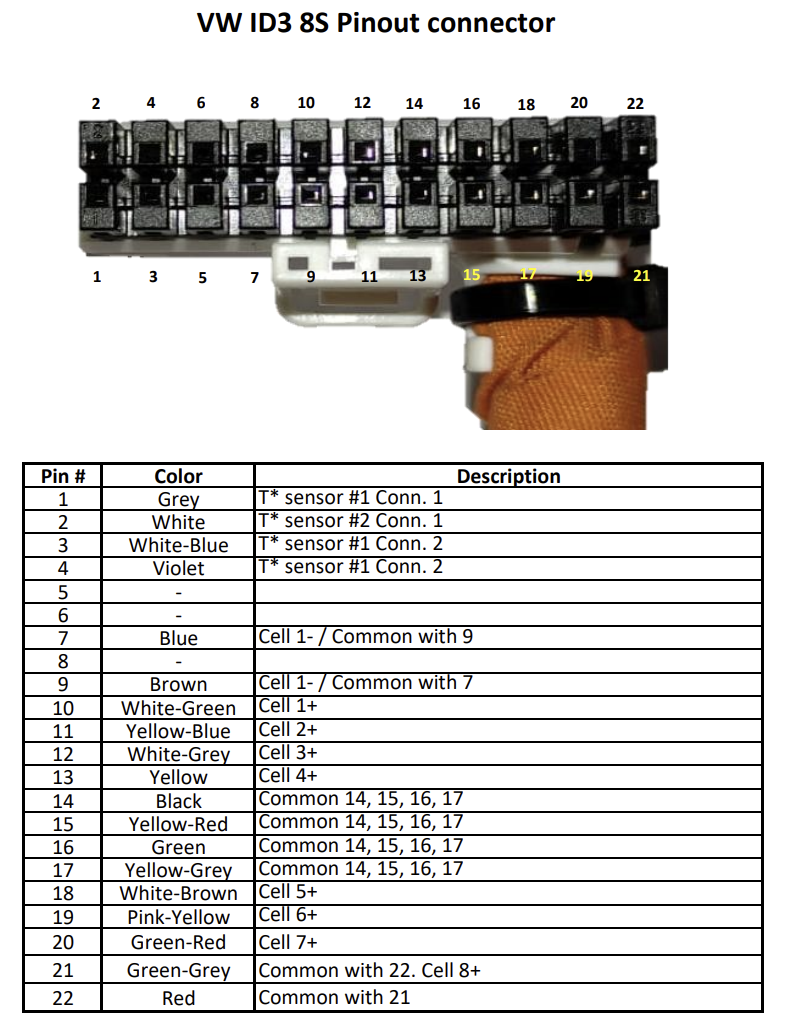

Each cell tap has a fuse inside the battery. Be careful not to short out any wires and double check all wiring prior to installing the BMS wires. A burned fuse will not be warrantied due to negligence. All modules have their fuses checked when we receive them and before we ship them to ensure you receive a good module.

3D Model - on GrabCad - https://grabcad.com/library/vw-id3-and-id4-battery-module-1

Need a BMS? Take a look at the EMUS BMS
