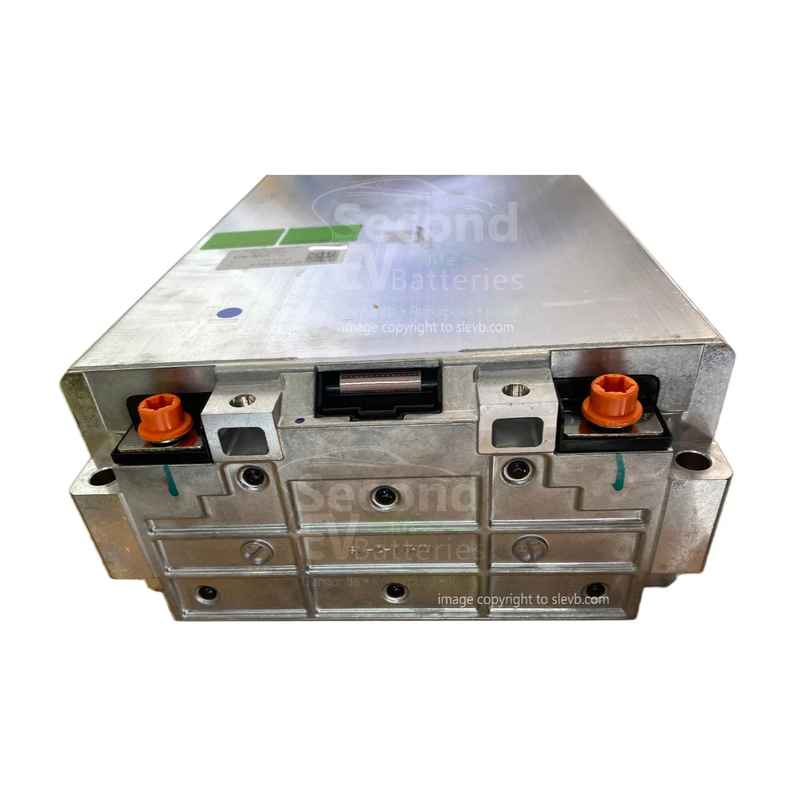

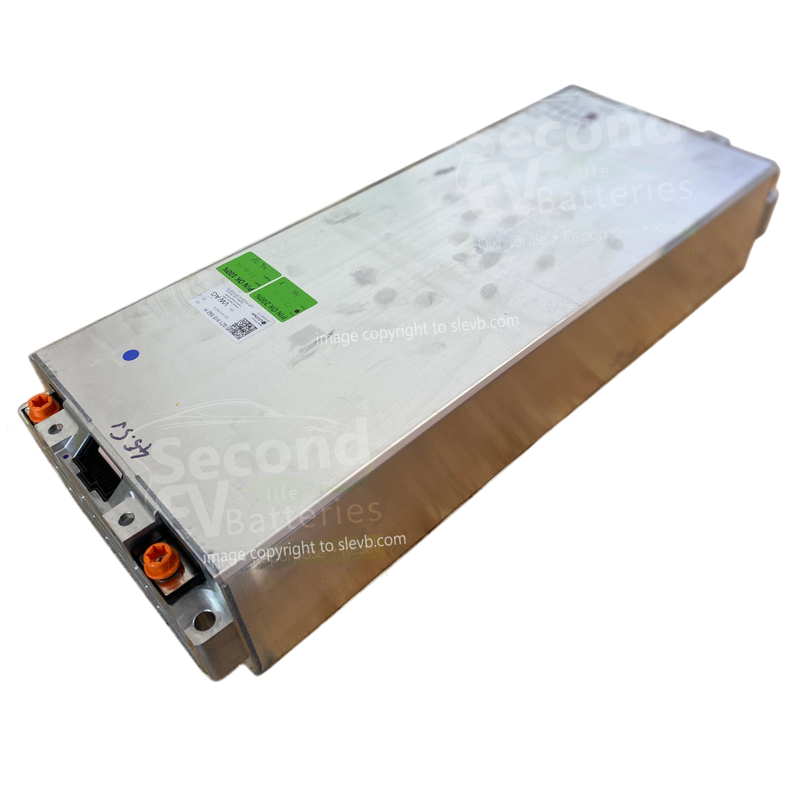

VW ID Module 8S - 6.85kWh / 234Ah / 29.6V
Choose Quantity :
Product Information
Product Details
Specification for VW ID MEB 8s Module
Manufacturer Part Number: 0Z1915599H
Voltage Nominal: 29.6vVoltage Min: 24.2v
Voltage Max: 33.6v
Capacity Ah: 234Ah
Capacity kWh: 6.85kWh

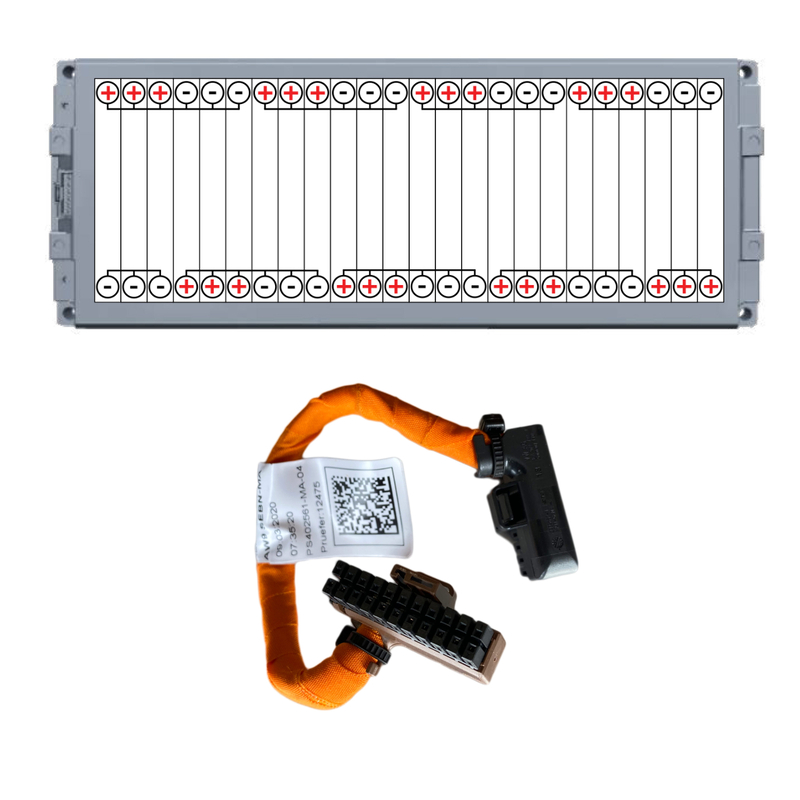

Configuration: 8s3p
Mass: 32kg
Voltage Nominal: 29.6v
Voltage Max: 33.6v
Capacity Ah: 234Ah
Capacity kWh: 6.85kWh
Configuration: 8s3p
Mass: 32kg
Dimensions for VW ID MEB 8s Module
Length: 590mm
Width: 225mm
Height: 110mm
Width: 225mm
Height: 110mm
Other Detailsfor VW ID MEB 8s Module
Maximum Discharging Current (10 sec.): 1000 Amps
Bolt Size M6
Bolt Size M6
Balancing current of the VW ID modules is low. They only use around 100 mA of passive cell balancing. Higher balancing current could damage the cell tap wires in the modules or blow the internal fuse. Keep this in mind when selecting your BMS

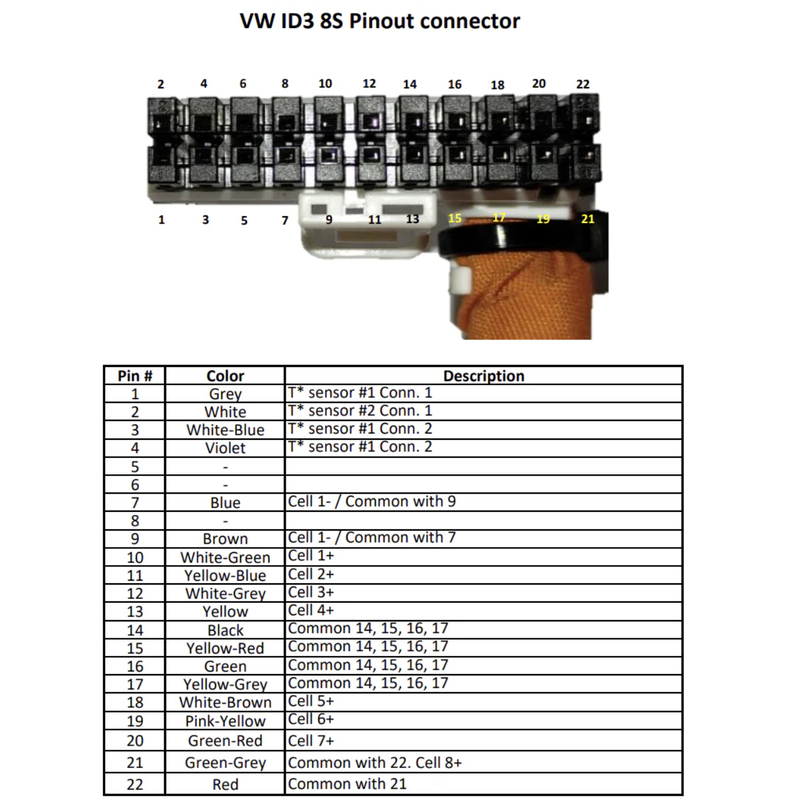

Each cell tap has a fuse inside the battery. Be careful not to short out any wires and double check all wiring prior to installing the BMS wires. A burned fuse will not be warrantied due to negligence. All modules have their fuses checked when we receive them and before we ship them to ensure you receive a good module.
3D Model - on GrabCad - https://grabcad.com/library/vw-id3-and-id4-battery-module-1
Need a BMS? Take a look at the EMUS BMS
International Shipping NOT AVAILABLE
