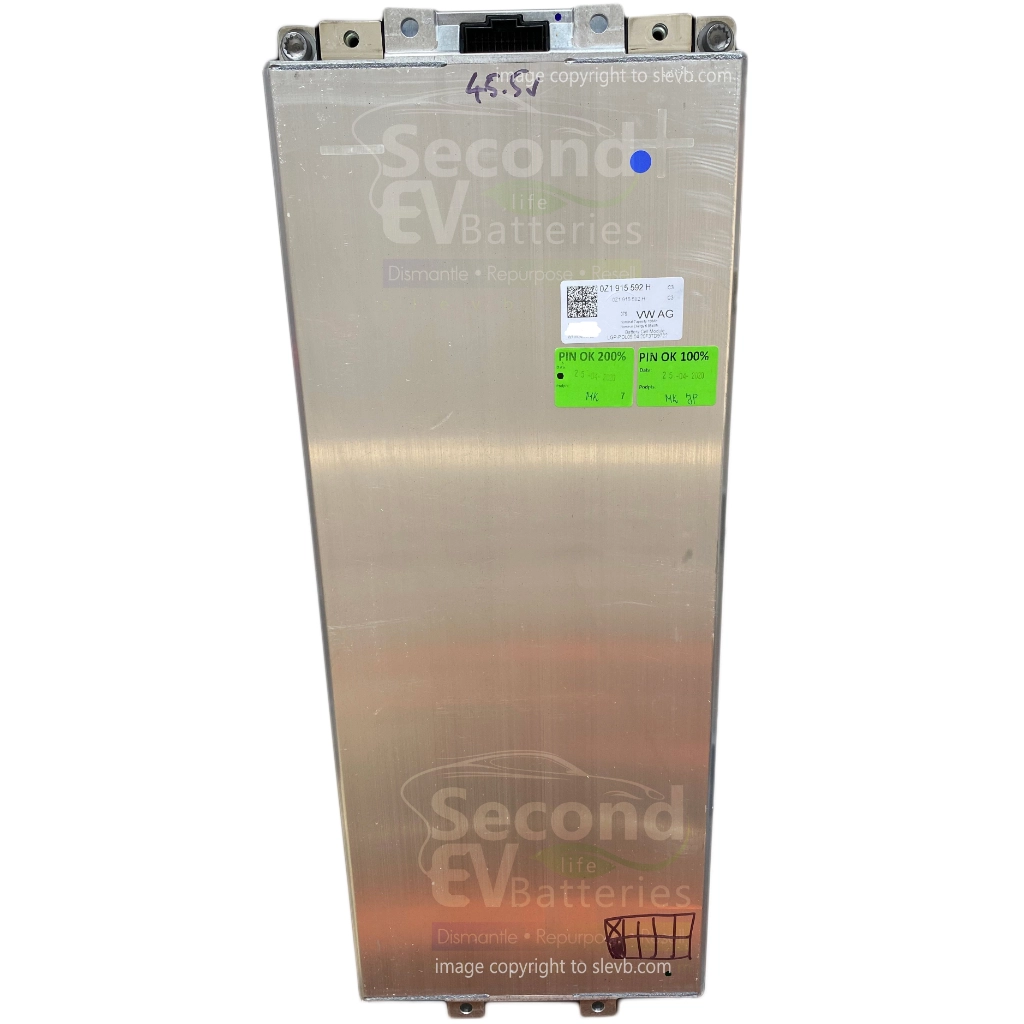

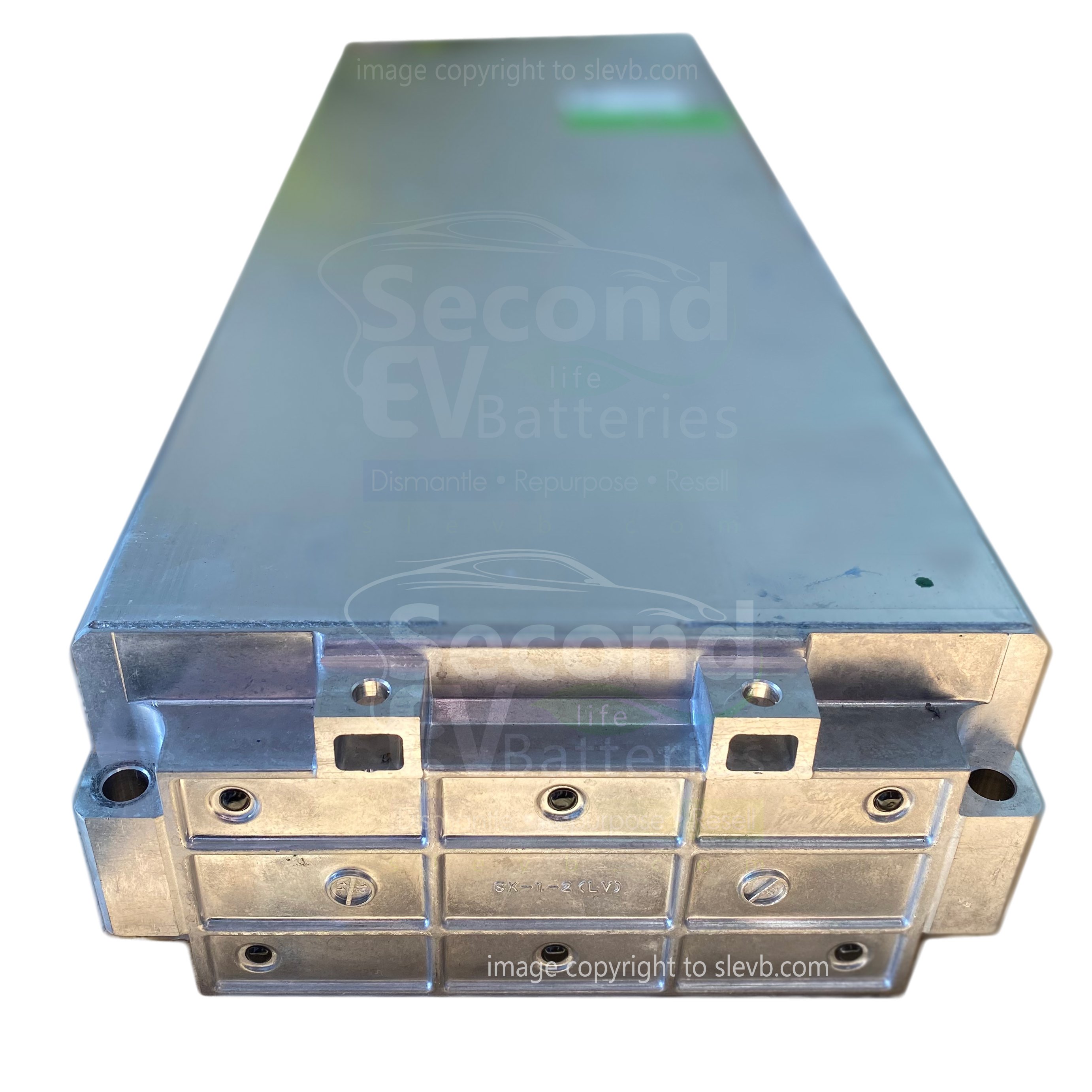

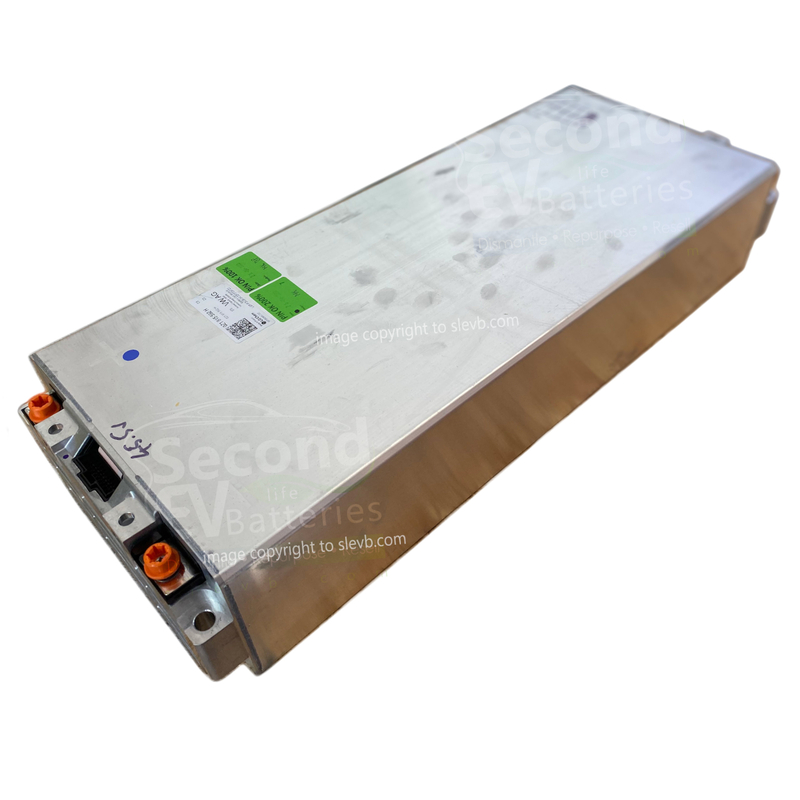

VW ID Module 12S - 6.85kWh / 156Ah / 44V
Choose Quantity :
Product Information
Product Details
Specification for VW ID MEB 12s Module
Manufacturer Part Number: 0Z1915592H
Voltage Nominal: 44.4vVoltage Min: 39.6v
Voltage Max: 50v
Capacity Ah: 156Ah
Capacity kWh: 6.85kWh
Configuration: 12s2p
Mass: 32kg
Voltage Nominal: 44.4v
Voltage Max: 50v
Capacity Ah: 156Ah
Capacity kWh: 6.85kWh
Configuration: 12s2p
Mass: 32kg
Dimensions for VW ID MEB 12s Module
Length: 590mm
Width: 225mm
Height: 110mm
Other Details for VW ID MEB 12s Module
Maximum Discharging Current (10 sec.): 800 Amps
Bolt Size M6
Bolt Size M6
Balancing current of the VW ID modules is low. They only use around 100 mA of passive cell balancing. Higher currents could damage the cell tap wires in the modules or blow the internal fuse. Keep this in mind when selecting your BMS

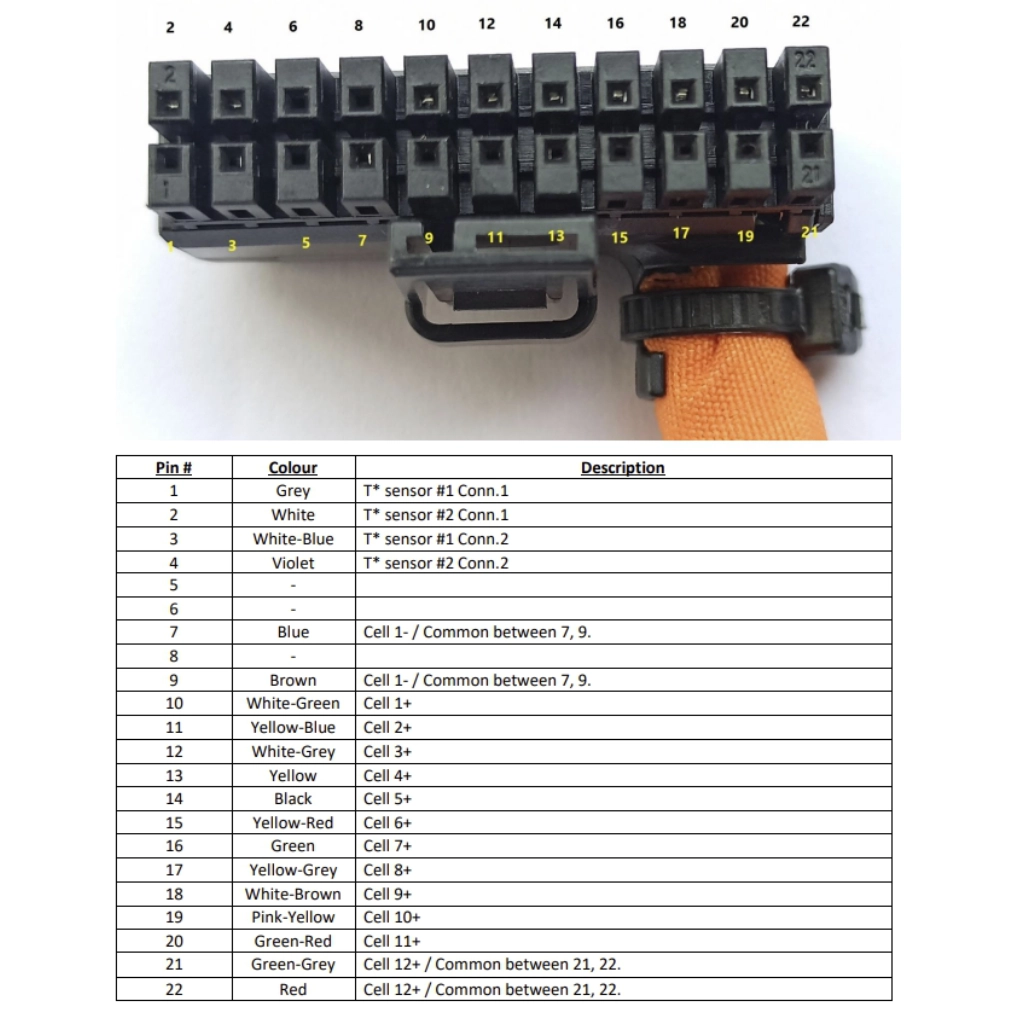

Each cell tap has a fuse inside the battery. Be careful not to short out any wires and double check all wiring prior to installing the BMS wires. A burned fuse will not be warrantied due to negligence. All modules have their fuses checked when we receive them and before we ship them to ensure you receive a good module.
Need a BMS? VW MEB ID BMS HERE

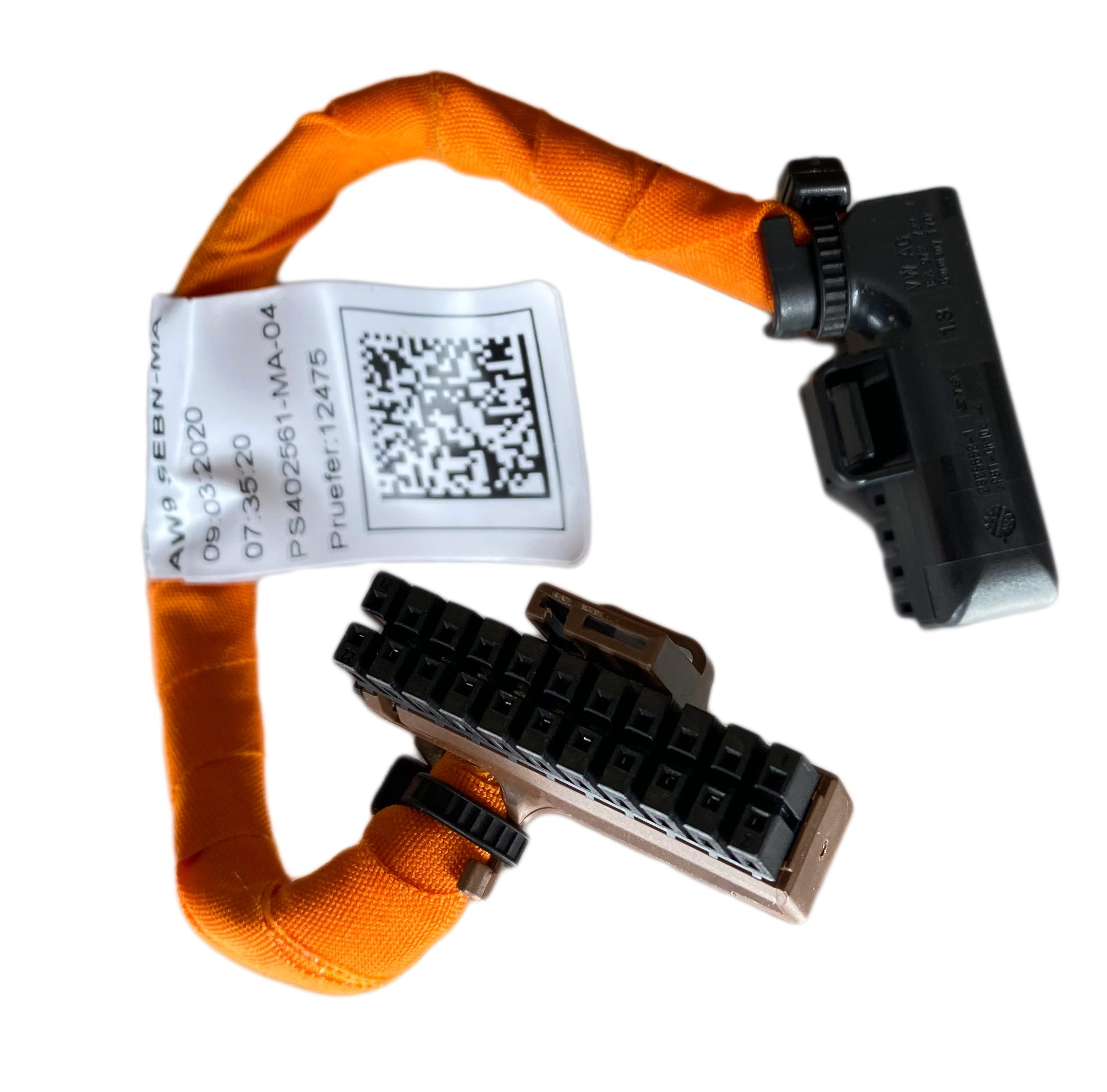

(Note: Do contact us if you want BMS as this kit only has cables for 1 x module).
