BMW i3 Module - 5.27kWh / 120Ah / 44V

BMW i3 Module - 5.27kWh / 120Ah / 44V

excluding VAT

Regular price £999.17 GBP
Regular price Sale price £999.17 GBP
Sale Sold out
Shipping & tax calculated at checkout.

International Shipping NOT available

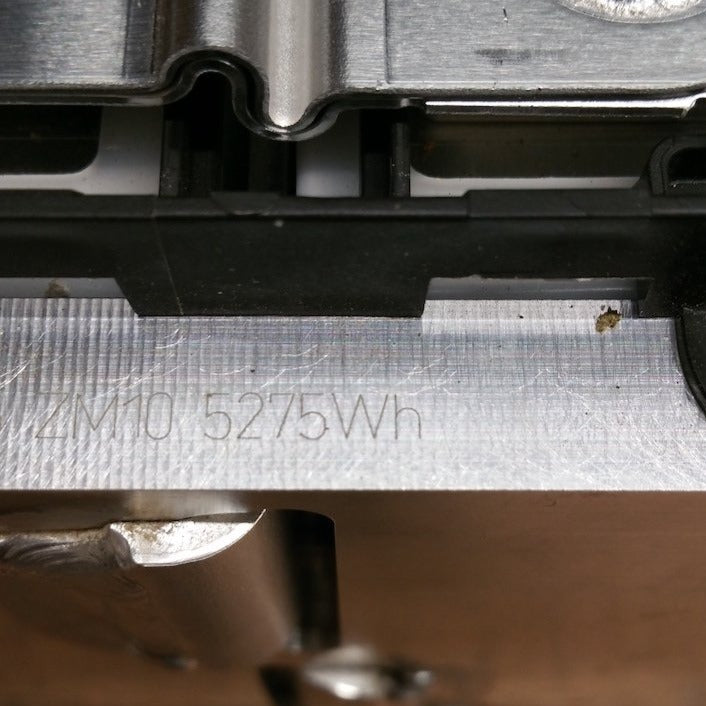

Original Capacity: 5275Wh
Nominal voltage: 44.2V
177 Wh per kg
303 kWh per cubic meter
£227 per kWh ex vat

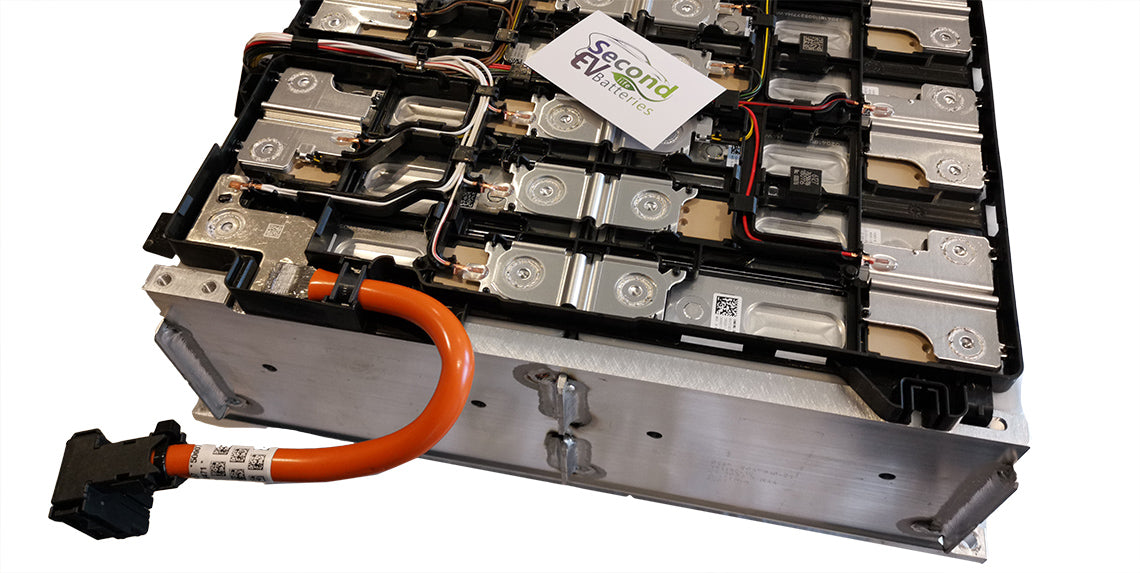

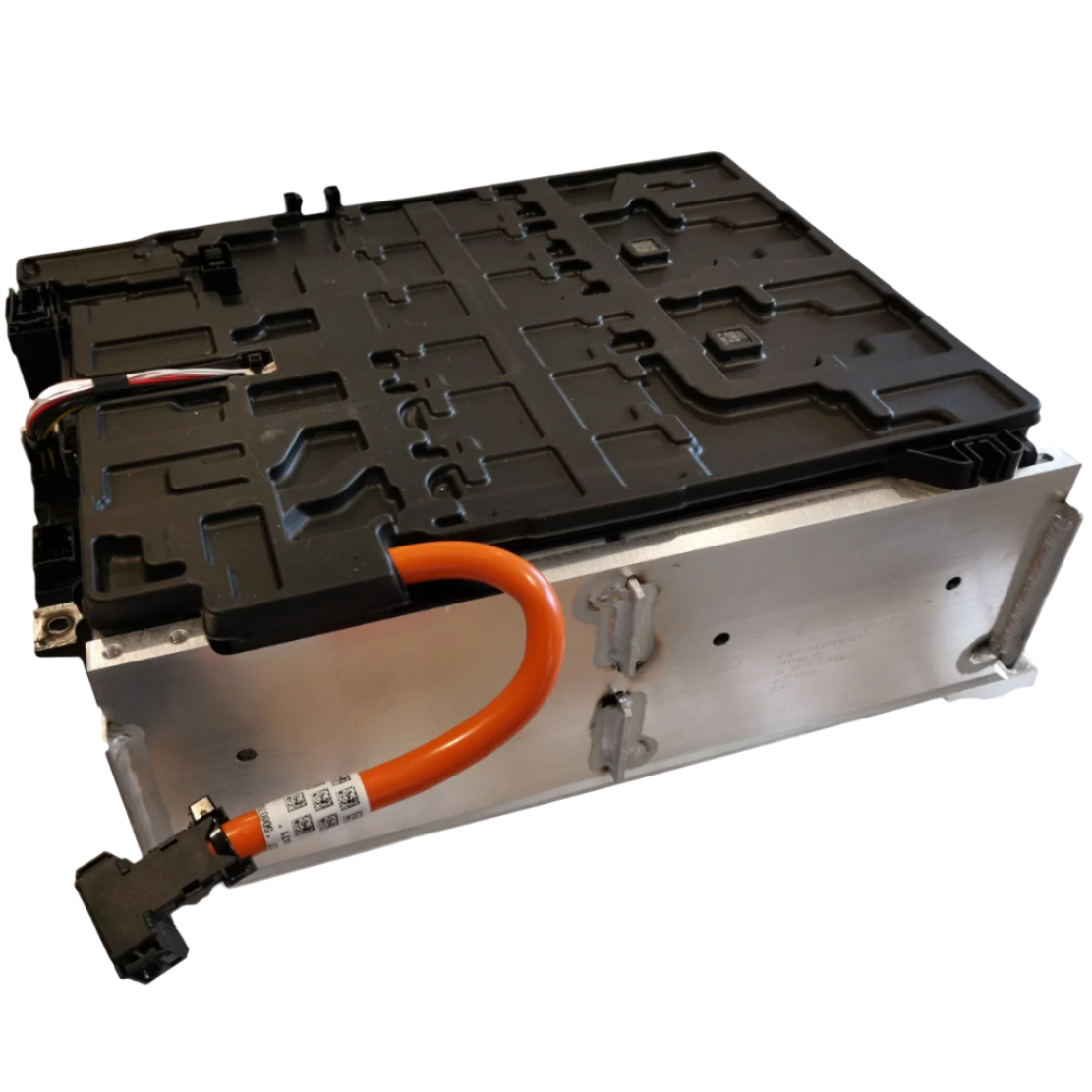

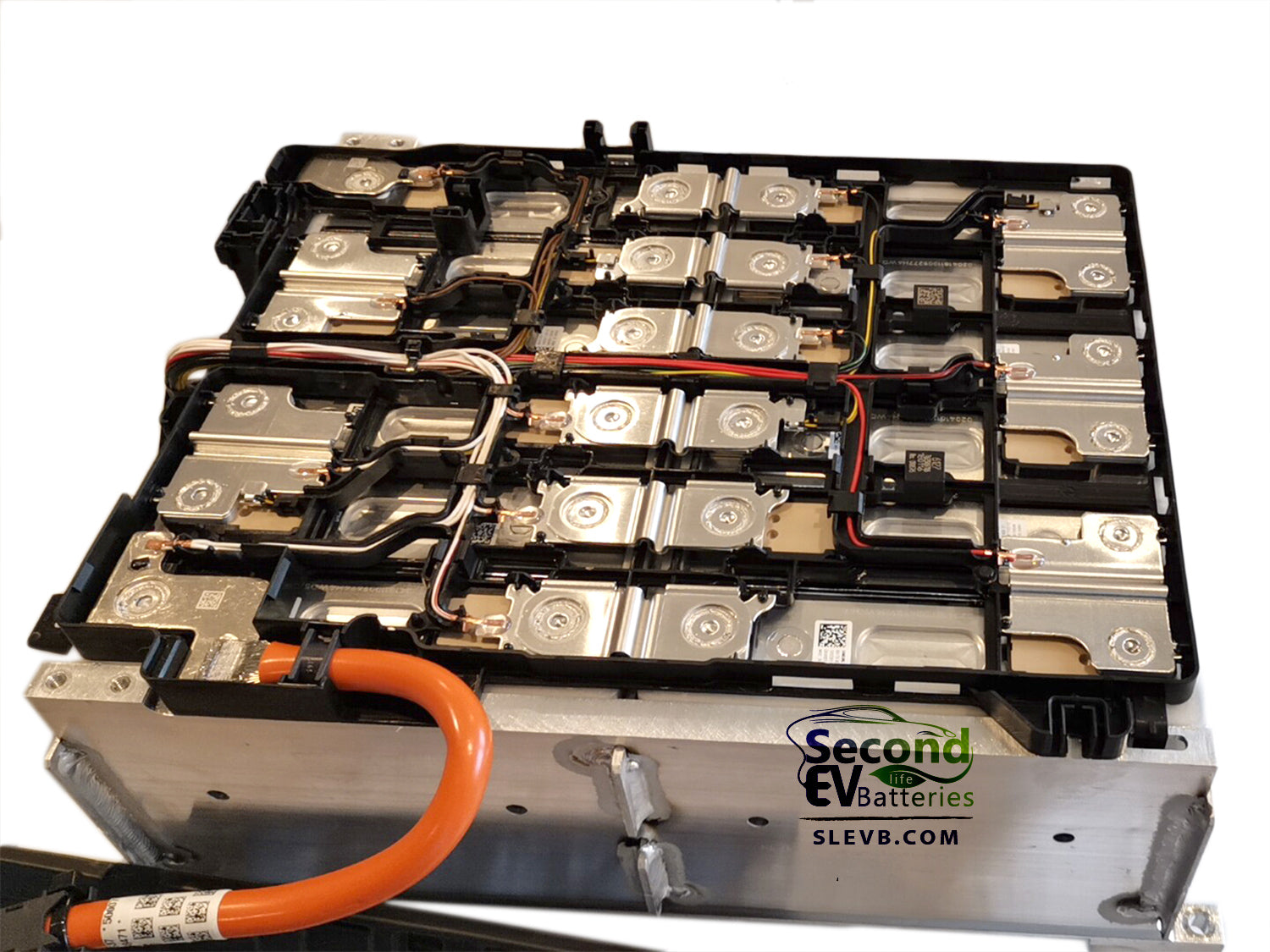

BMW i3 120Ah Module Lithium-ion Module

Has come from a BMW i3. Modules are a 120Ah.

Modules have all been tested with our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module.

What's included BMW i3 120Ah Module

With EACH module purchase you with receive:

1 X BMW i3 120Ah

Module Specification

Max voltage 49.2V
Min voltage 32.4V

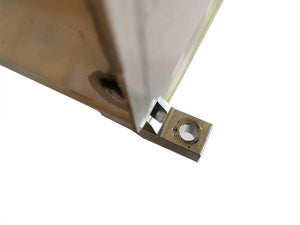

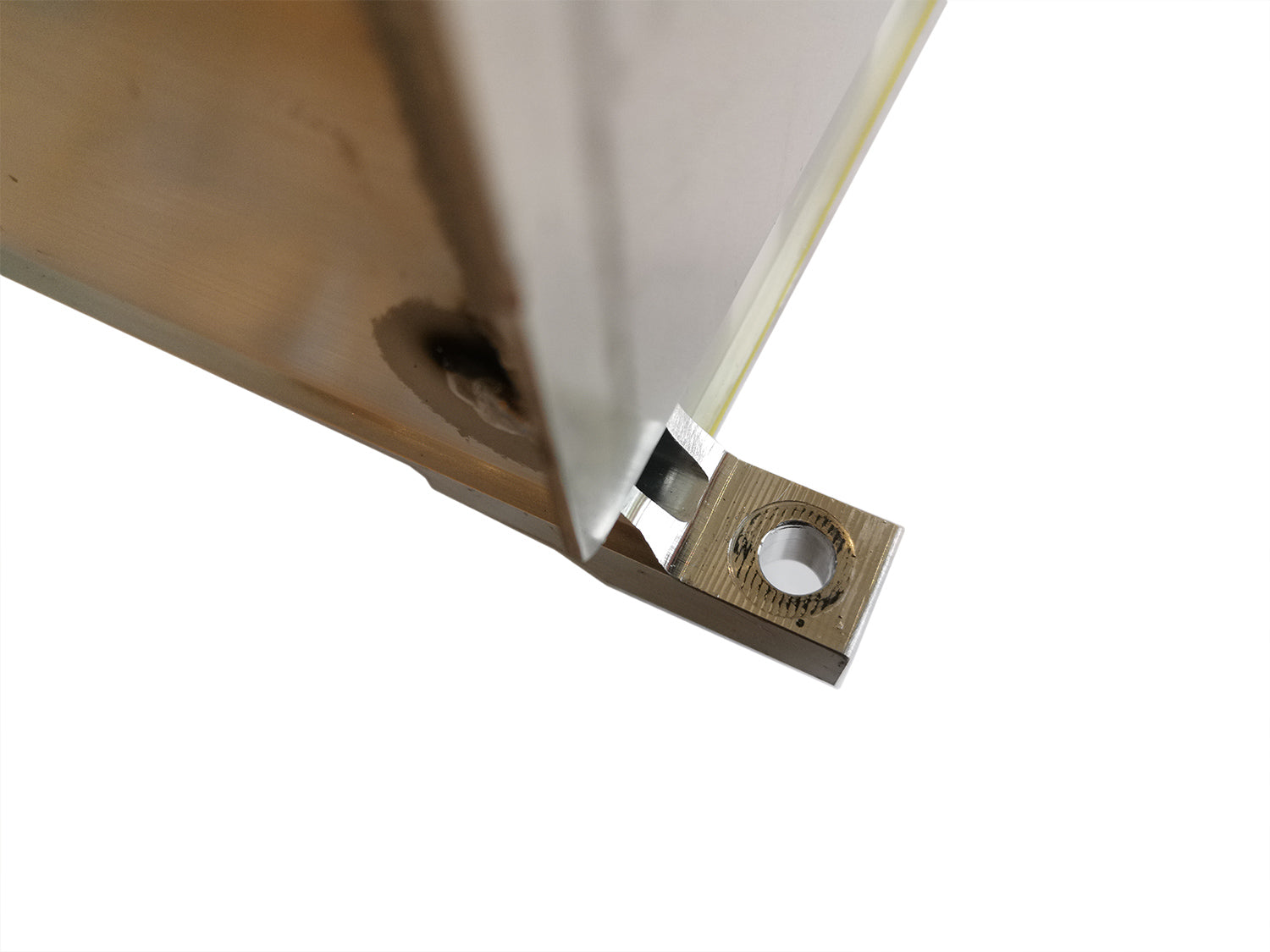

Length 387mm (410mm including mount)
Width 300mm
Height 150mm
Mass 29.8kg


Optional - Battery Management System - EVS-BMS

This BMW module is compatible with the "EVS-BMS" Battery Management System. Please see details on the EVS-BMS page HERE.

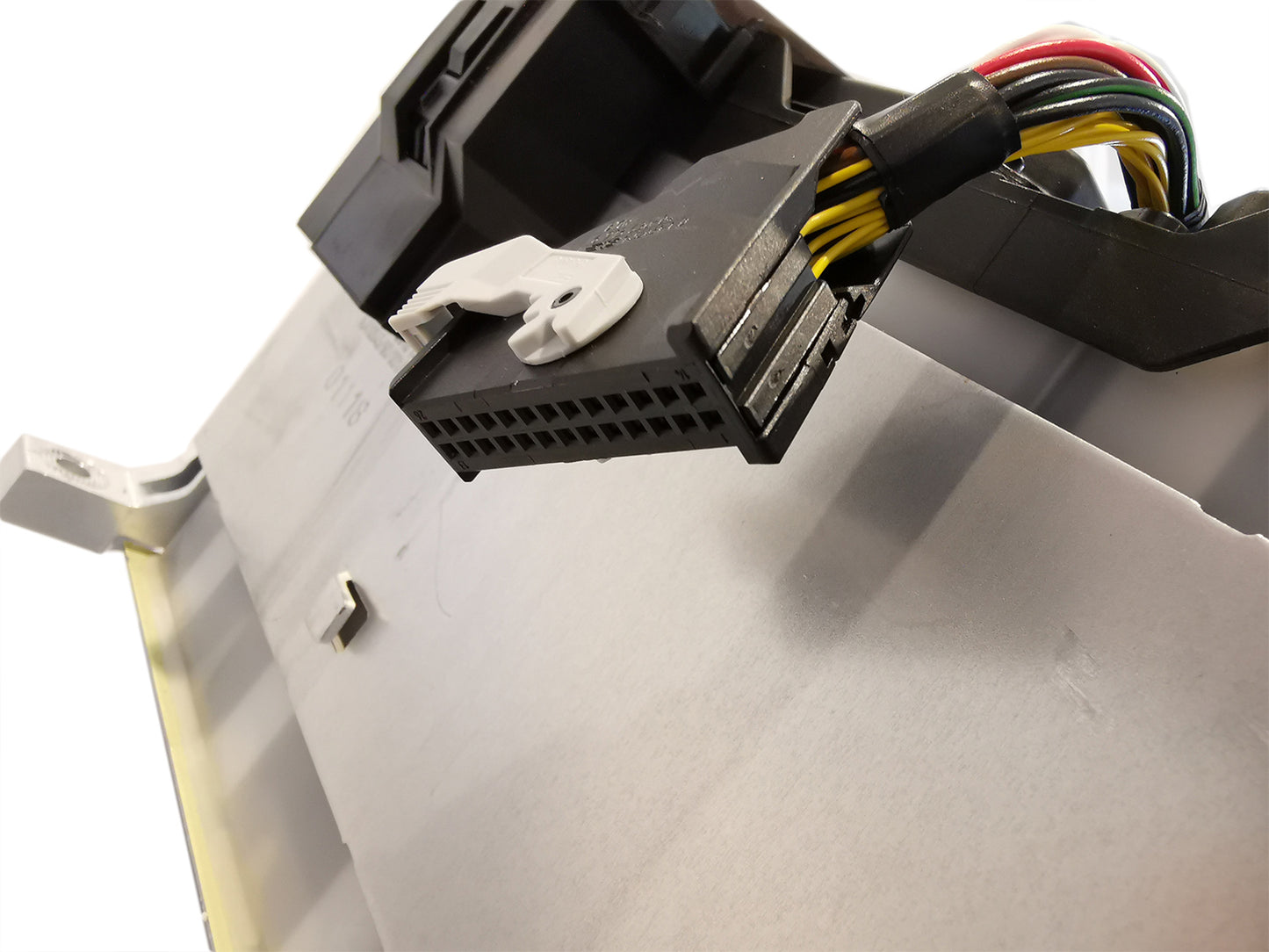

PLEASE NOTE: if you select the EVS-BMS you will need to select the Cell Supervision Circuit (CSC) option as EVS-BMS will need this.
