EV Battery Module Coolant Plate - Double
EV Battery Module Coolant Plate - Double
excluding VAT
International Shipping NOT available
Couldn't load pickup availability

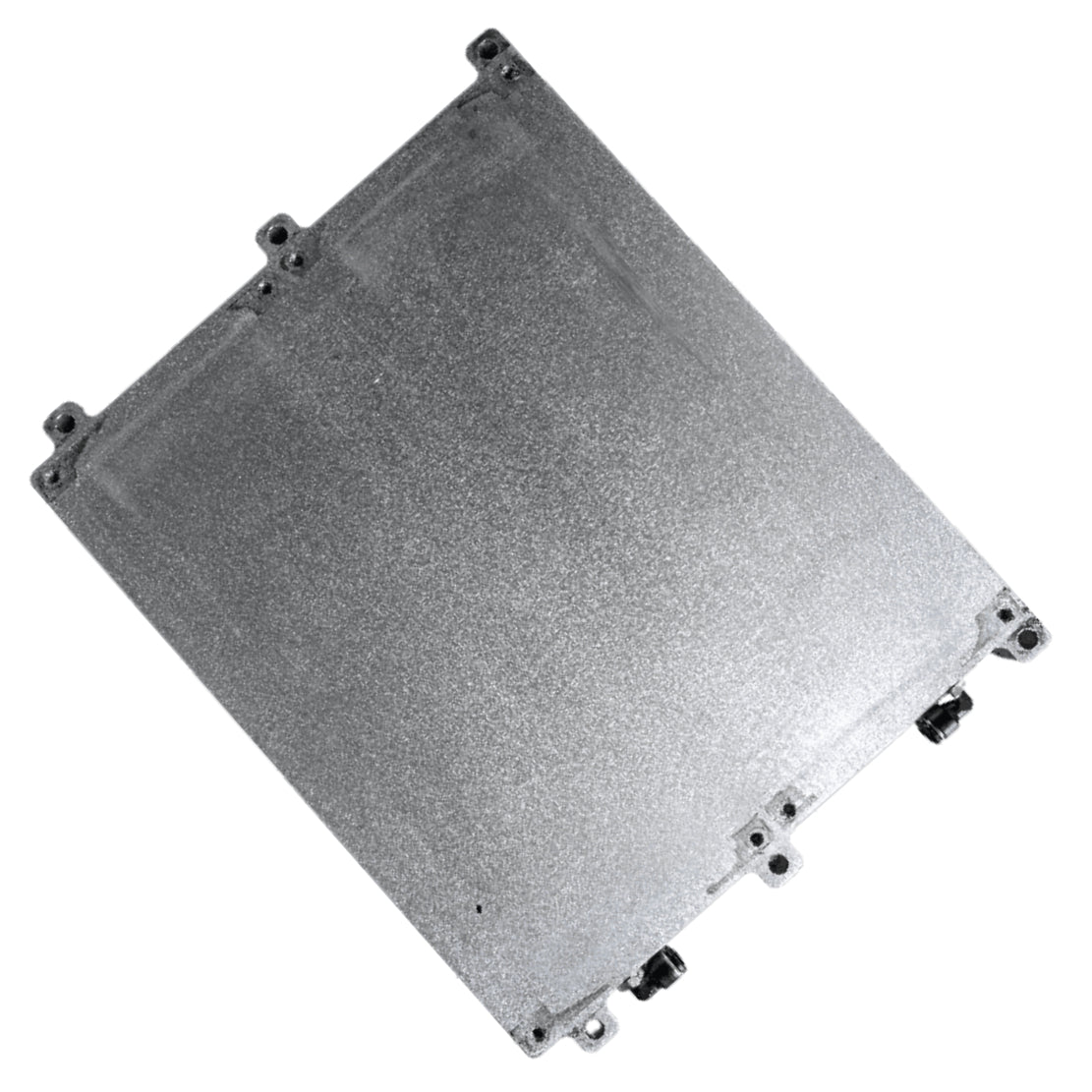

EV Battery Module Coolant Plate
Suitable for use with the following battery modules.
LG 4P3S Battery Module - Jaguar iPace
CALB 3P4S Battery Module
For use with 1 – 4 modules
CNC Aluminium, Stir welded capping plate with a perfect flat finish for optimum cooling capability.
2 x 1/4 BSP Coolant inlet / outlet push fittings included.
Made from 6061 aluminium alloy.
Weight: 3.50kg

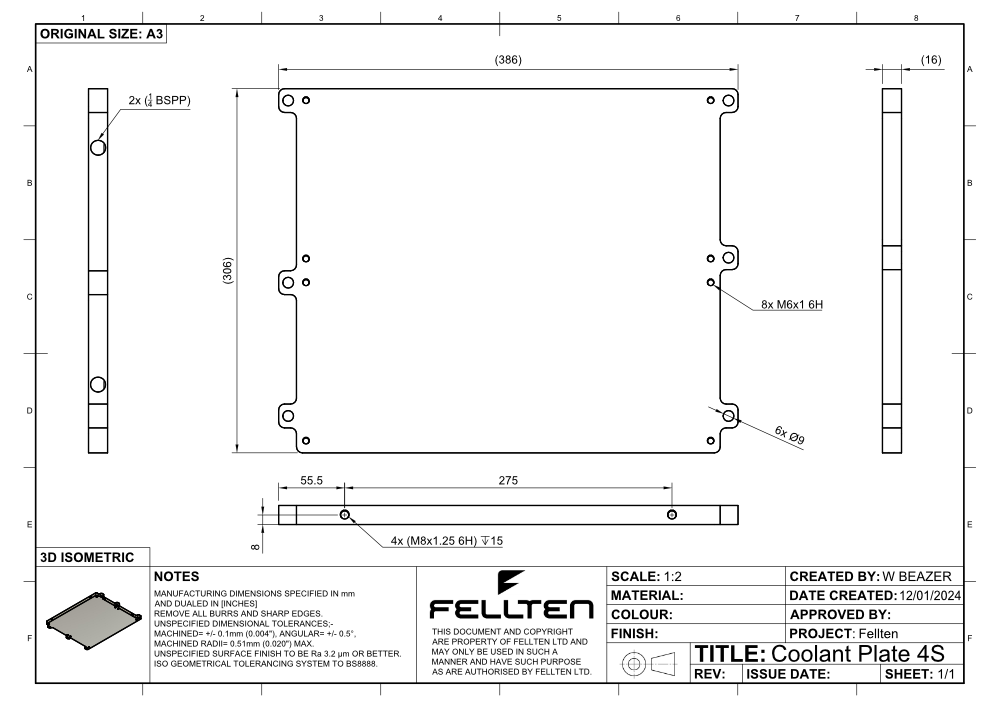

CAD step file available
