Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V

Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V

£310.80
inc. VAT
£259.00
excl. VAT
£310.80 GBP
Sale Sold out
Collection is FREE from BH23 3TS. UK Mainland Delivery quote available at checkout.
Price per kWh £119.54

International Shipping NOT available

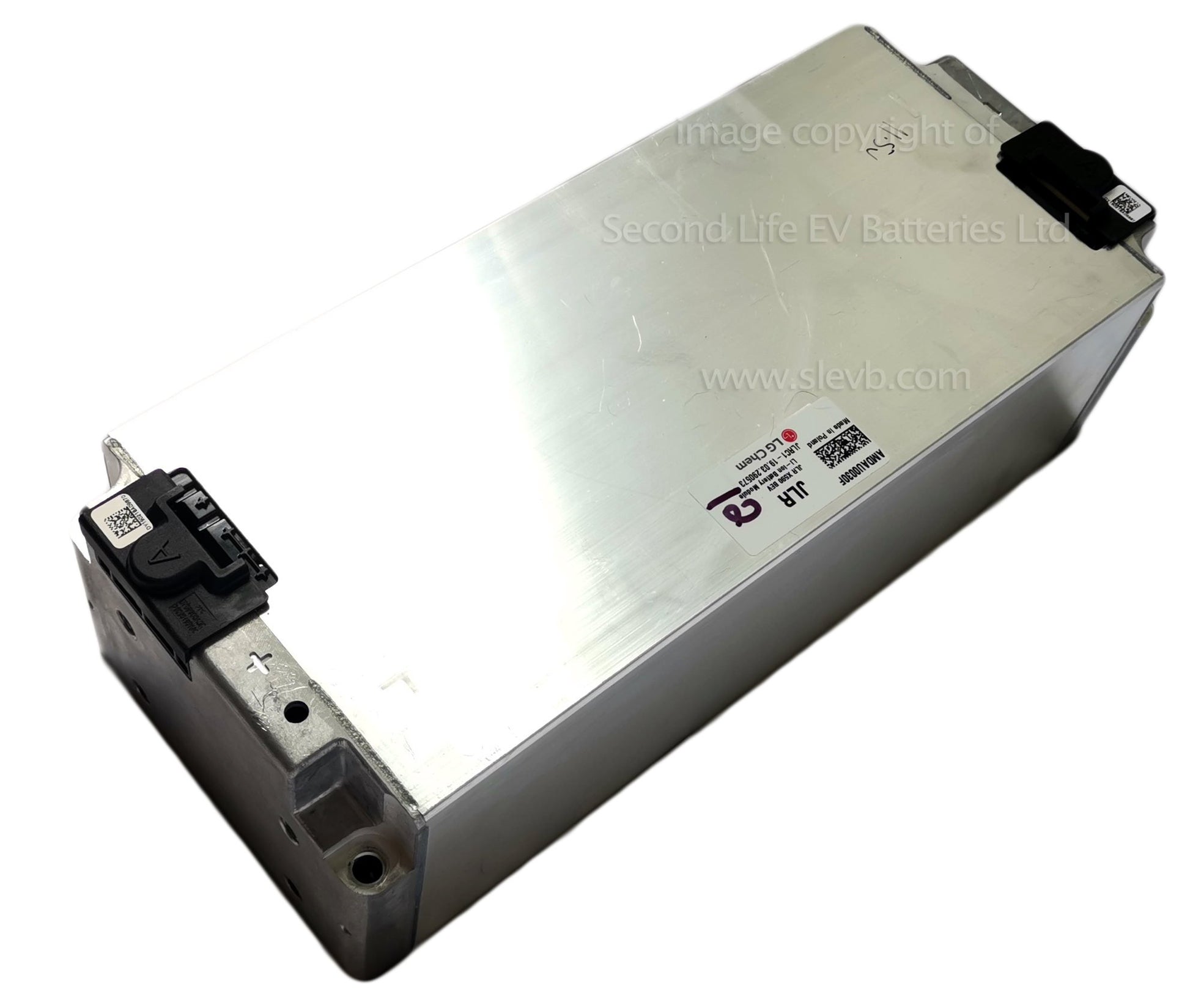

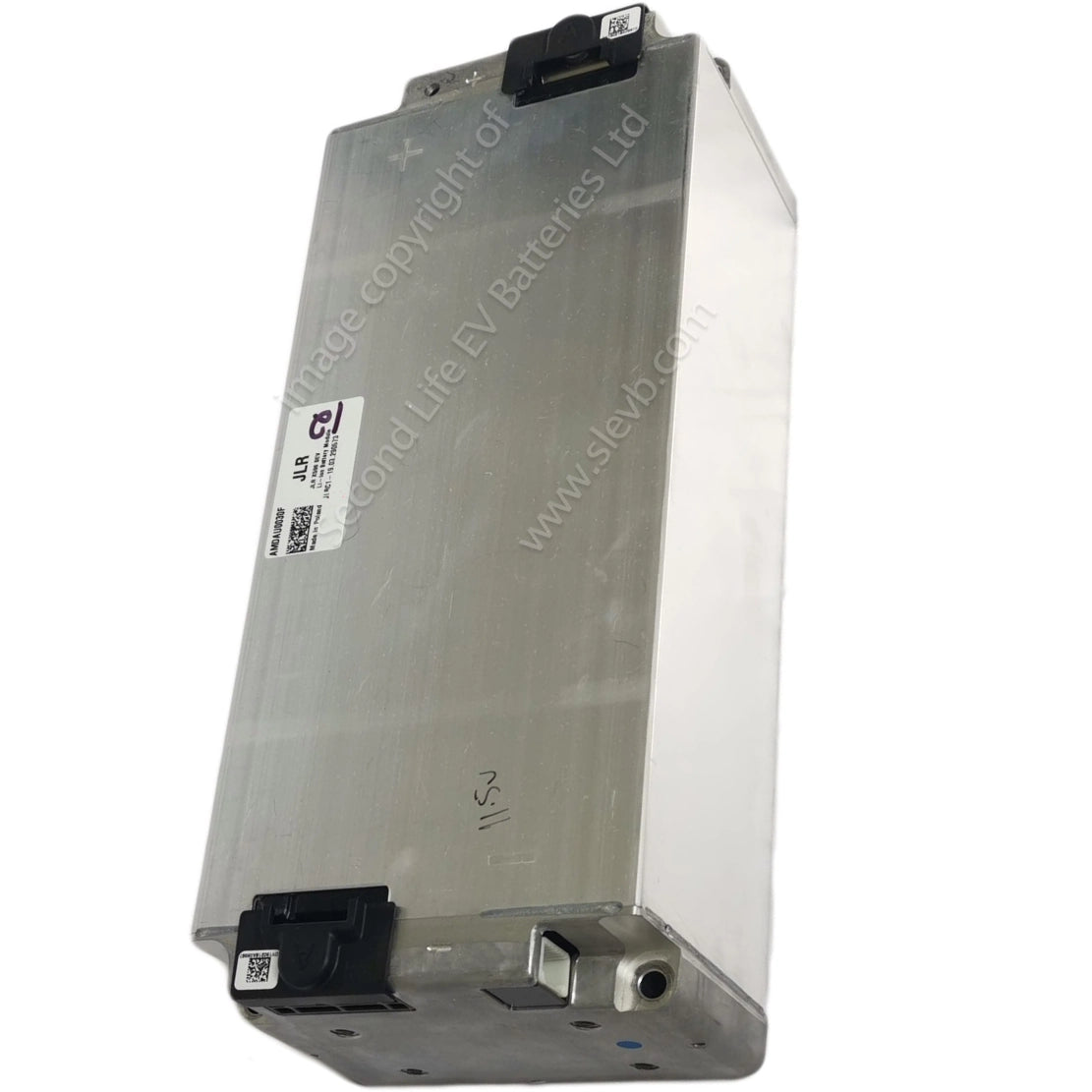

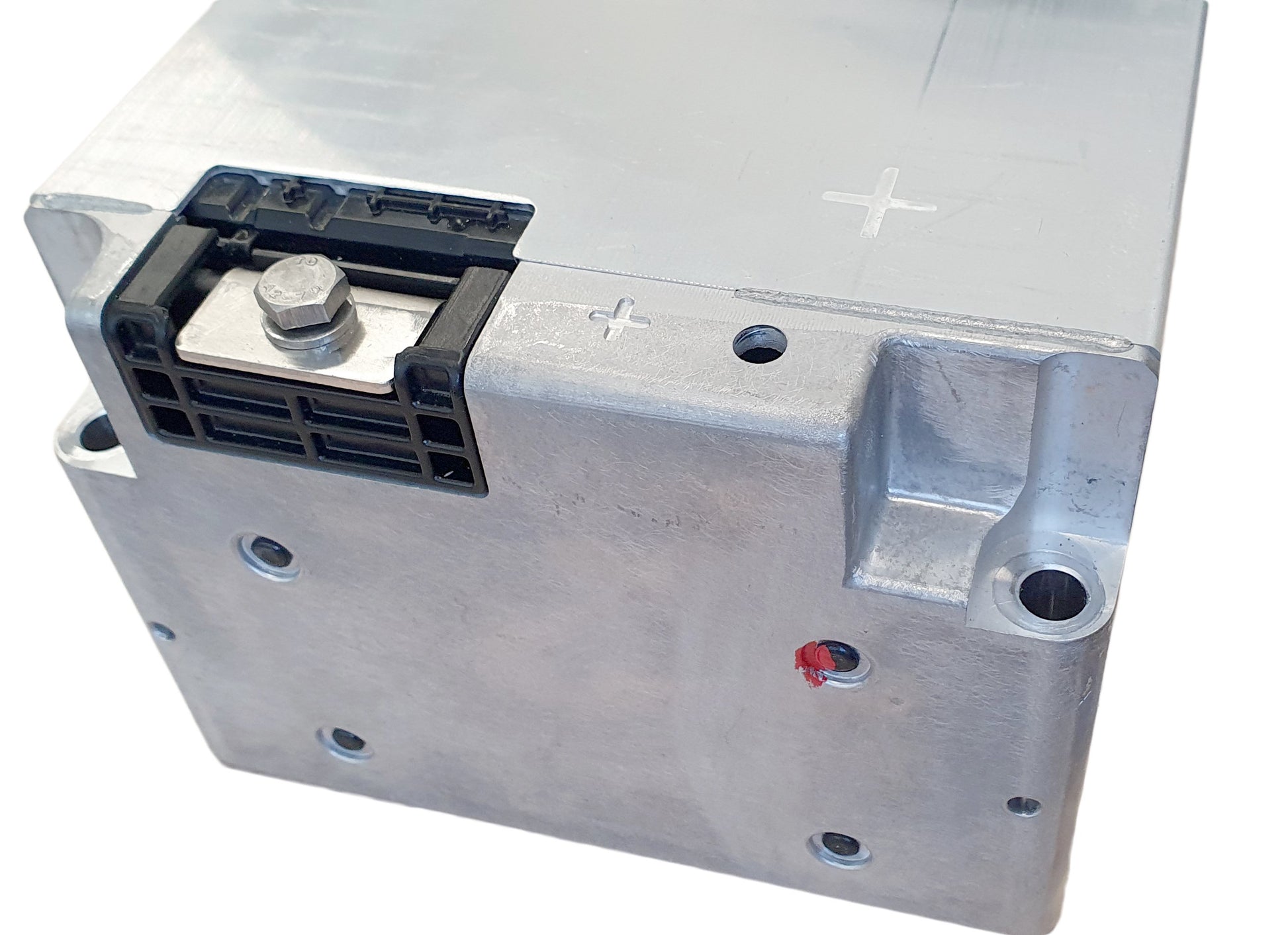

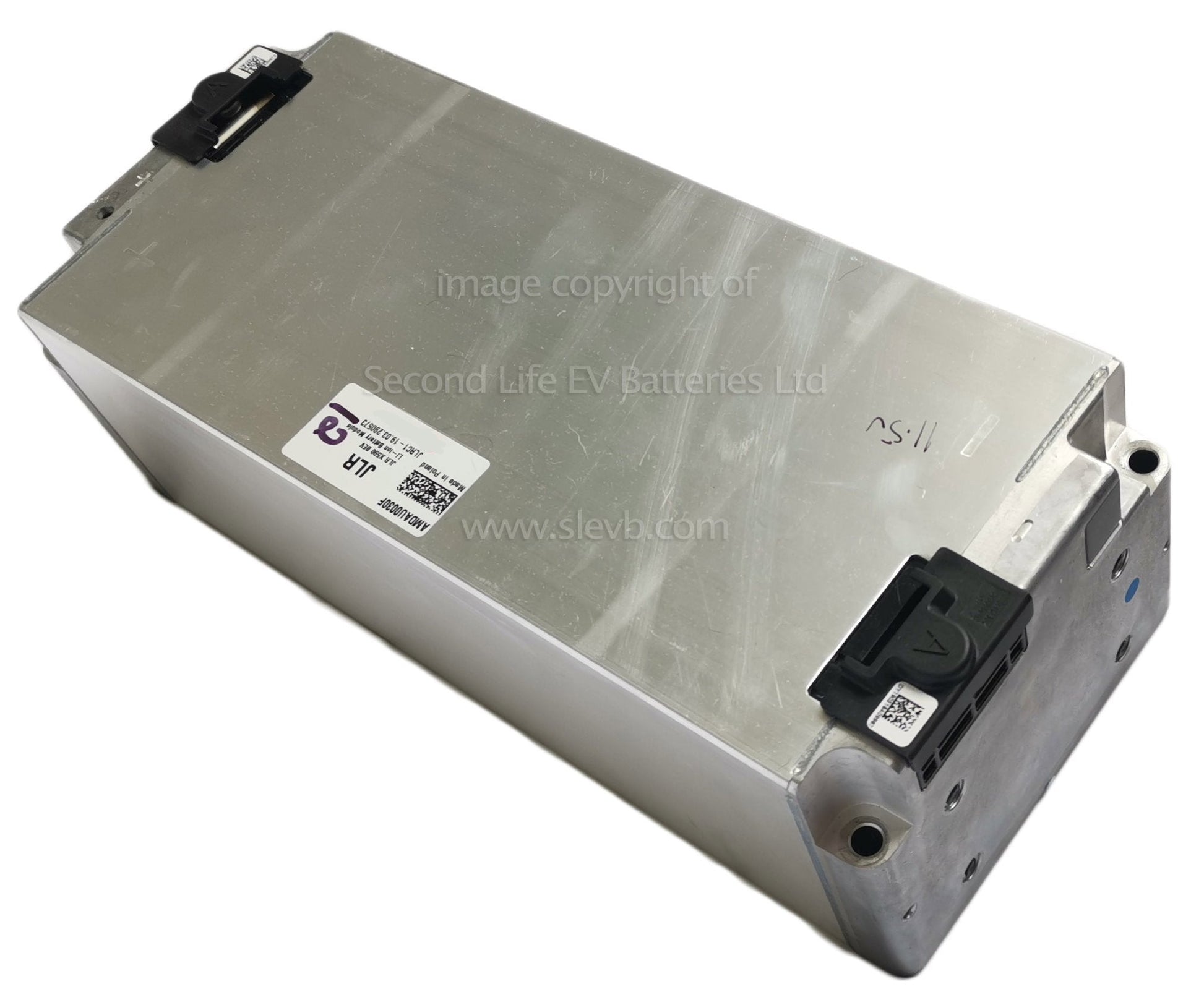

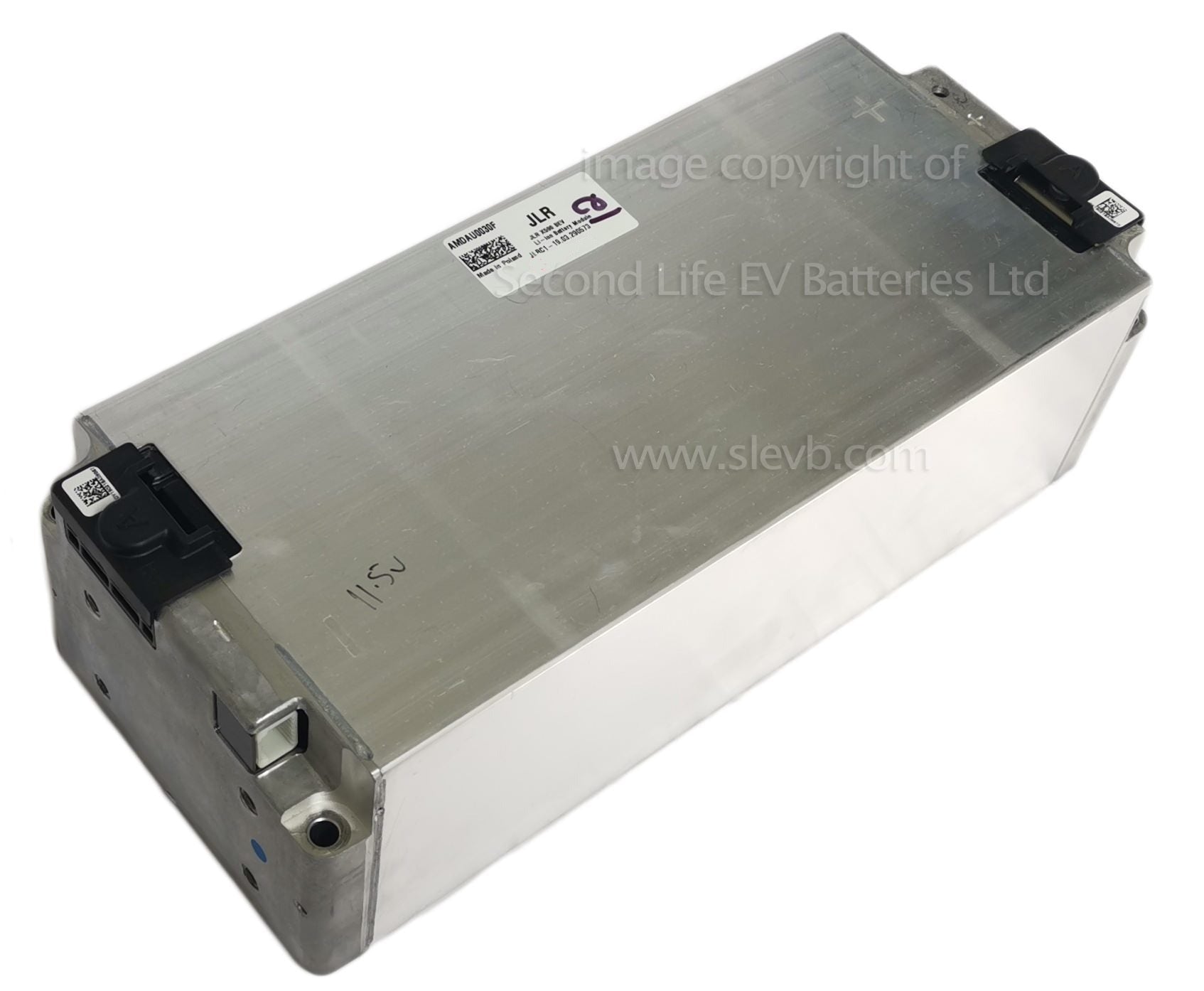

Original Jaguar I-Pace Module Lithium-ion Battery

Jaguar I-Pace Module Specification

Manufacturer Part Number: AMDAU0168B
4P3S Configuration
Nominal Voltage – 10.8v
Voltage Min: 9.6v
Voltage Max: 12.3v
Min cell voltage 2.8v (Recommended cell voltage at 0 soc 3.2v)
Max cell voltage 4.2v (Recommended cell voltage at 100% soc 4.1v)

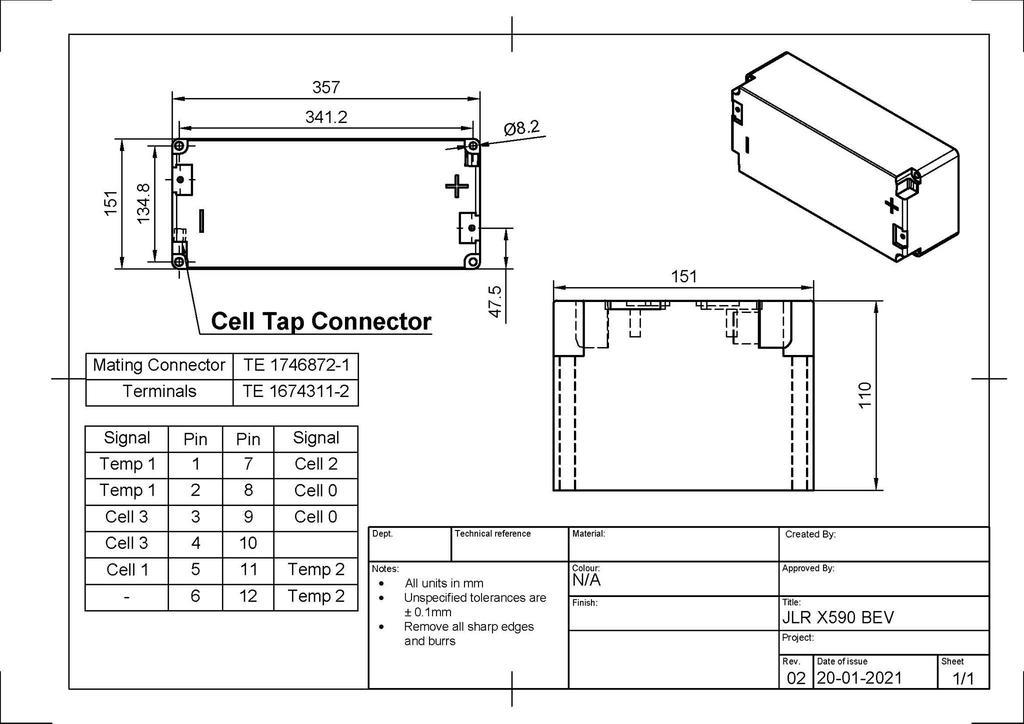

Length 357mm
Width 151mm
Height 110mm
Mass 12kg

Modules will be tested with our Deutronic dbl1200hv-60 & other diagnostic and conditioning system workshop tools using the Manufacture pre defined high and low voltages of this module.

Need a BMS? Jaguar iPace BMS HERE

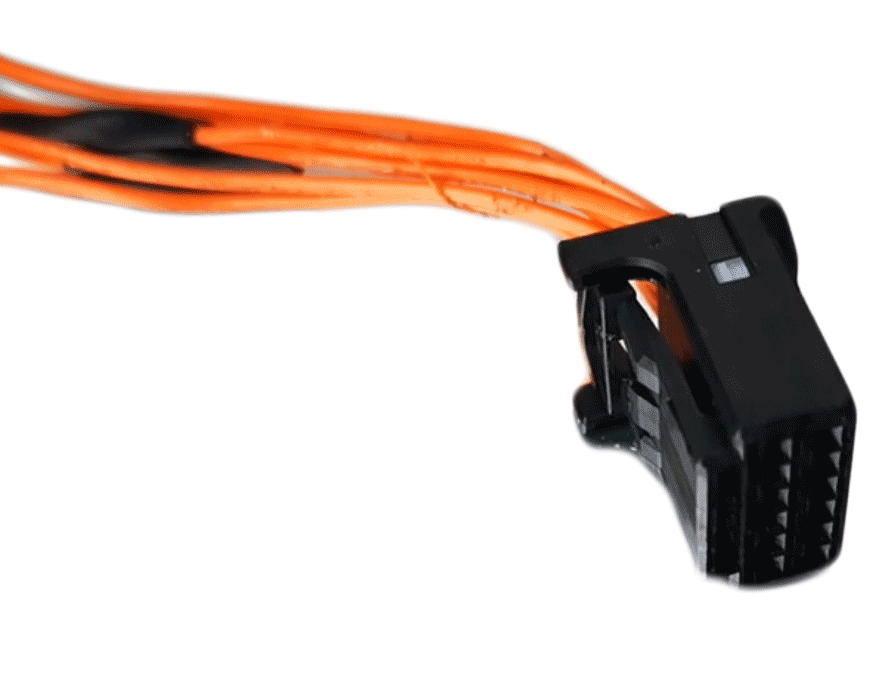

(Note: Do contact us if you want BMS as this kit only has cables for 1 x module).



International Shipping NOT AVAILABLE

Jaguar I-Pace Module - EV Module
